LED 3mm Red: A small, energy-efficient red LED for indicating status or creating visual displays in low-power applications.

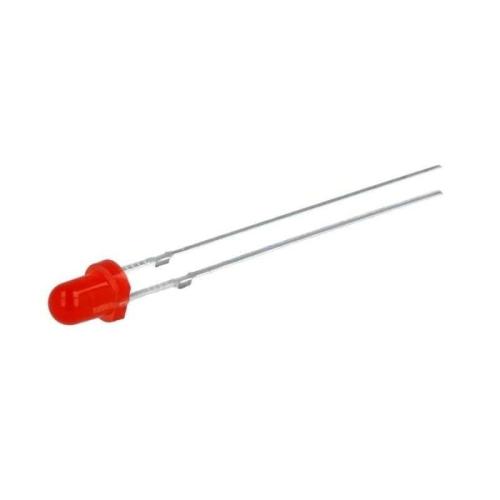

LED 3mm Red
Description:
The 3mm
Red LED is a small, energy-efficient light-emitting diode that emits red
light when forward-biased. It is widely used in indicator lights, status
signals, and display applications due to its low power consumption and long
lifespan.
Specification:
LED Type: Through-hole
Diameter: 3mm
Color: Red
Forward Voltage (VF): 1.8V - 2.2V
Forward Current (IF): 10mA - 20mA
Luminous Intensity: 100 - 500 mcd (varies by
model)
Viewing Angle: 20° - 30°
Wavelength: 620 - 630nm
Reverse Voltage (VR): 5V max
Operating Temperature: -40°C to +85°C
Package Type: Round, epoxy lens
Application:
Power and status indicators
in electronic devices
Signal and display lights in
appliances and automotive applications
