Crystal 12 MHz Short: A 12 MHz quartz crystal used for providing precise timing signals in microcontroller and oscillator circuits.

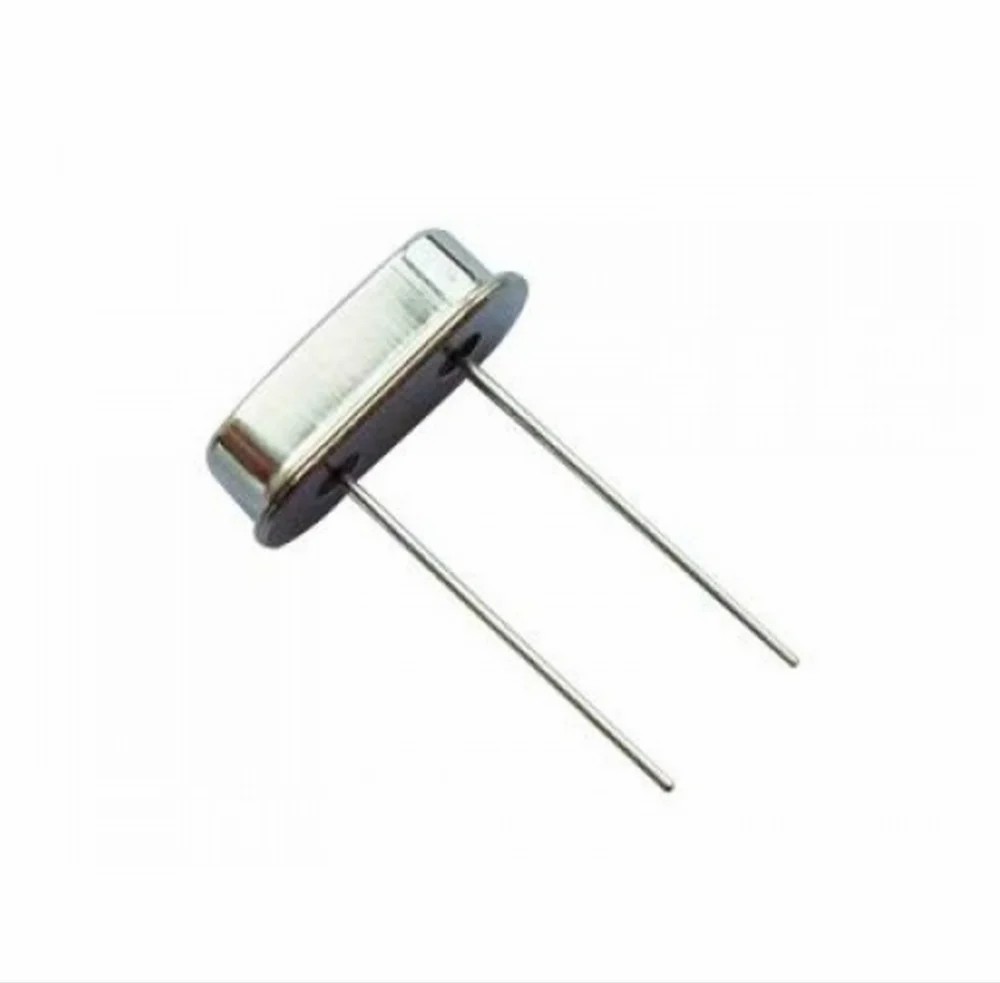

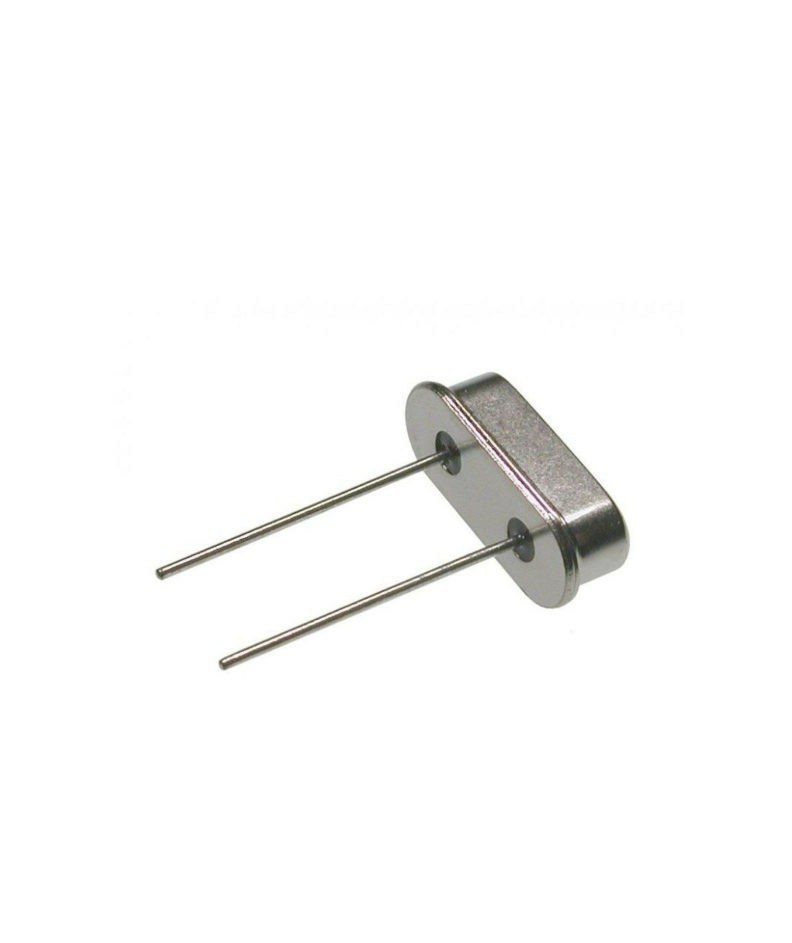

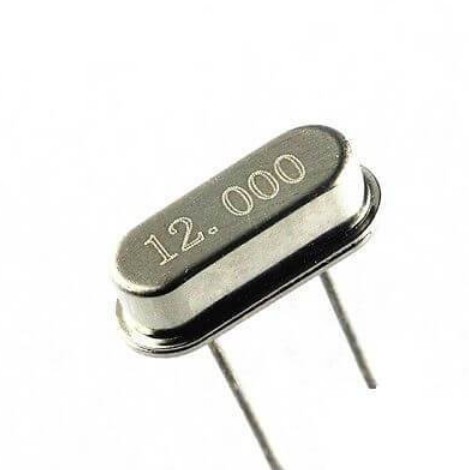

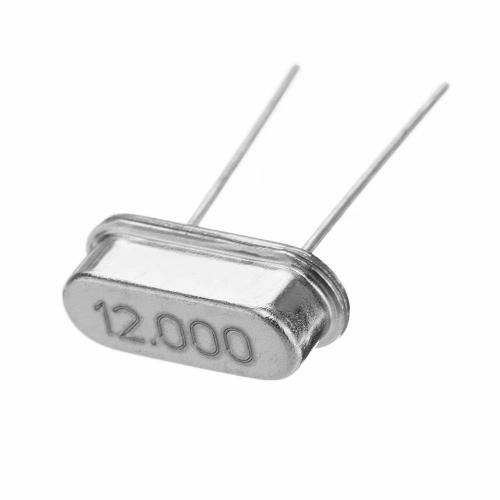

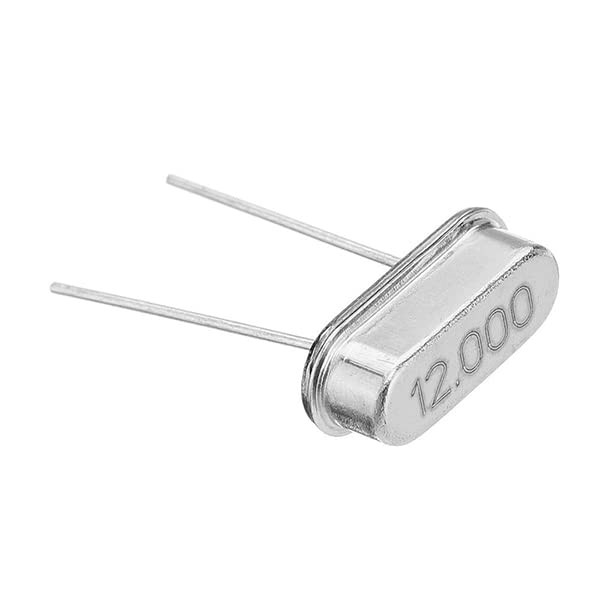

Crystal 12 MHz (Short)
Description:
A 12
MHz Crystal Oscillator is a passive electronic component that generates a
stable clock signal for microcontrollers, communication modules, and other
timing-related applications. It provides high-frequency stability and low power
consumption, making it ideal for precision timing circuits.
Specification:
Frequency: 12 MHz
Type: Quartz Crystal Oscillator
Package Type: HC-49S (Short)
Load Capacitance: Typically 18pF (varies by
circuit design)
Frequency Tolerance: ±30 ppm (varies by
manufacturer)
Operating Temperature: -20°C to +70°C
Shunt Capacitance: Typically 7pF
Aging: ±5 ppm/year
ESR (Equivalent Series
Resistance):
Typically 40Ω - 80Ω
Drive Level: 100 µW (typical)
Lead Pitch: 4.88mm (standard for
HC-49S)
Application:
Clock source for microcontrollers
(such as ATmega, PIC, STM32, etc.)
