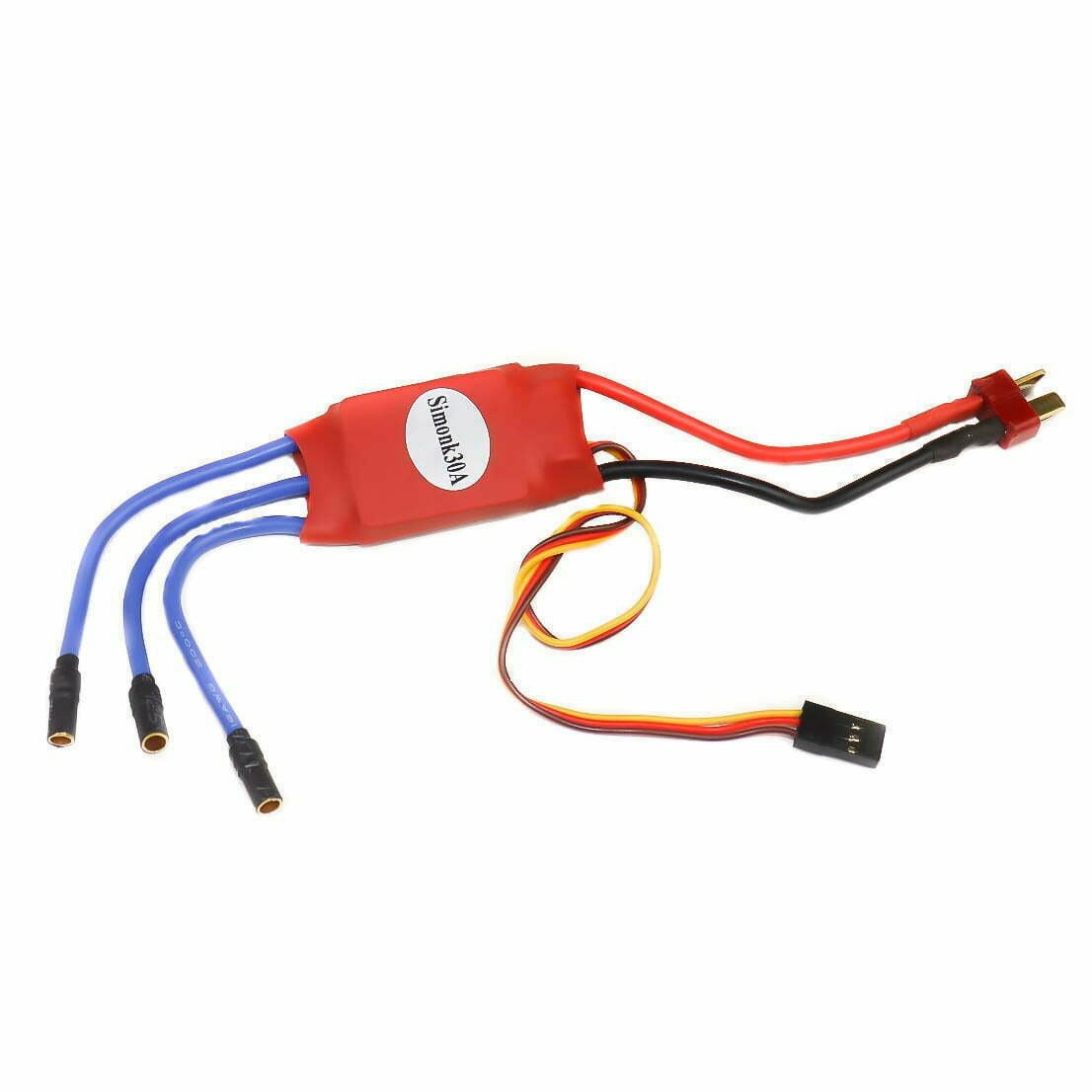

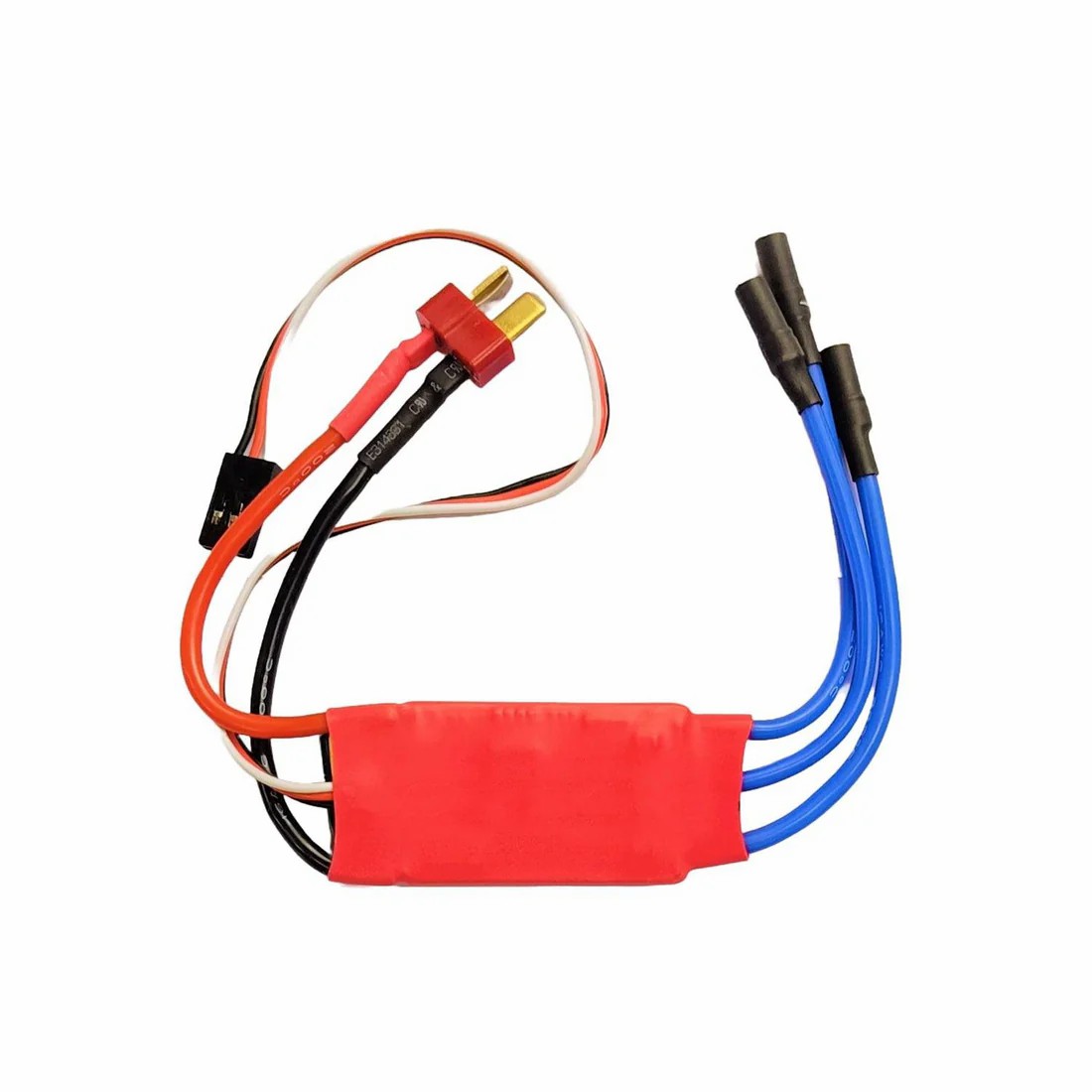

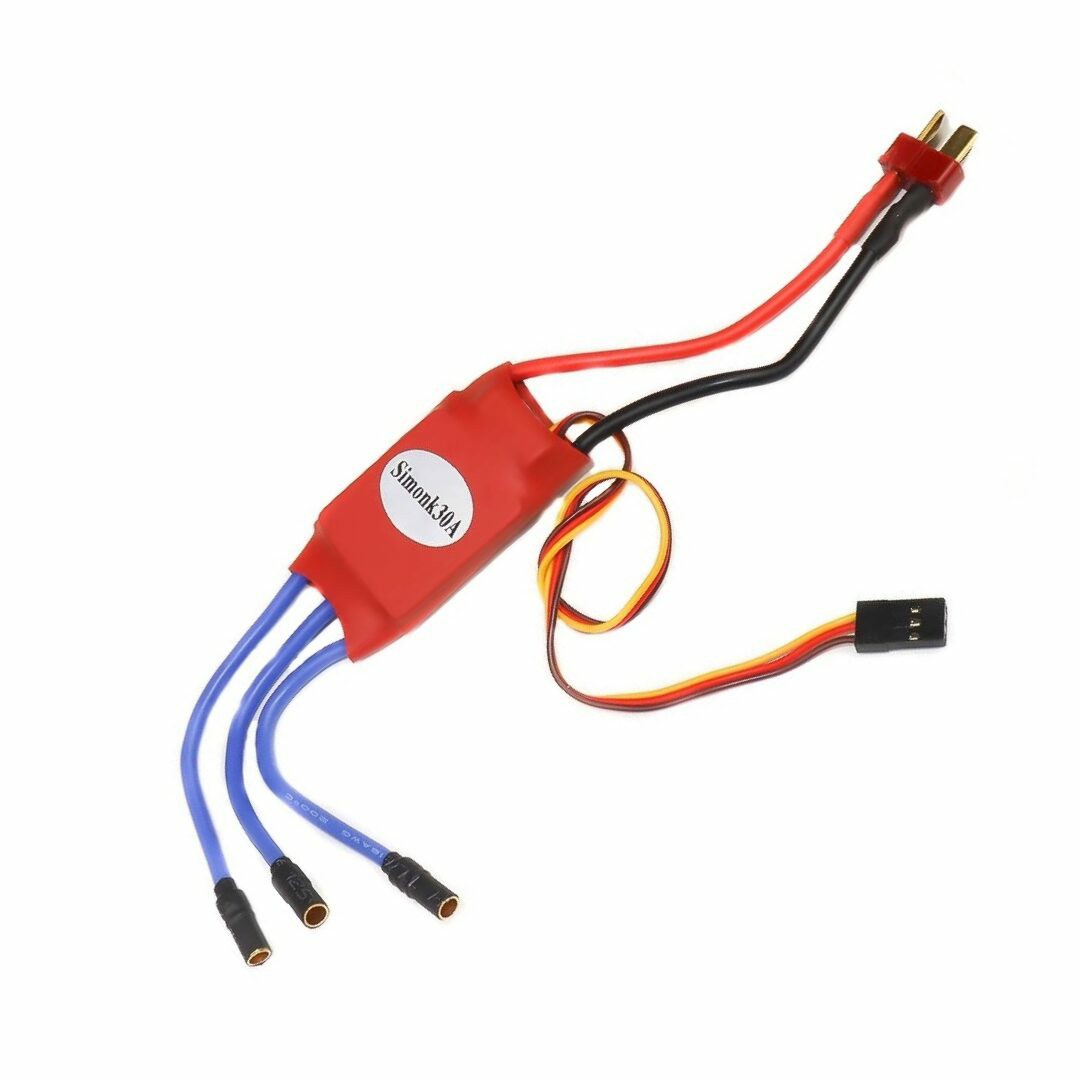

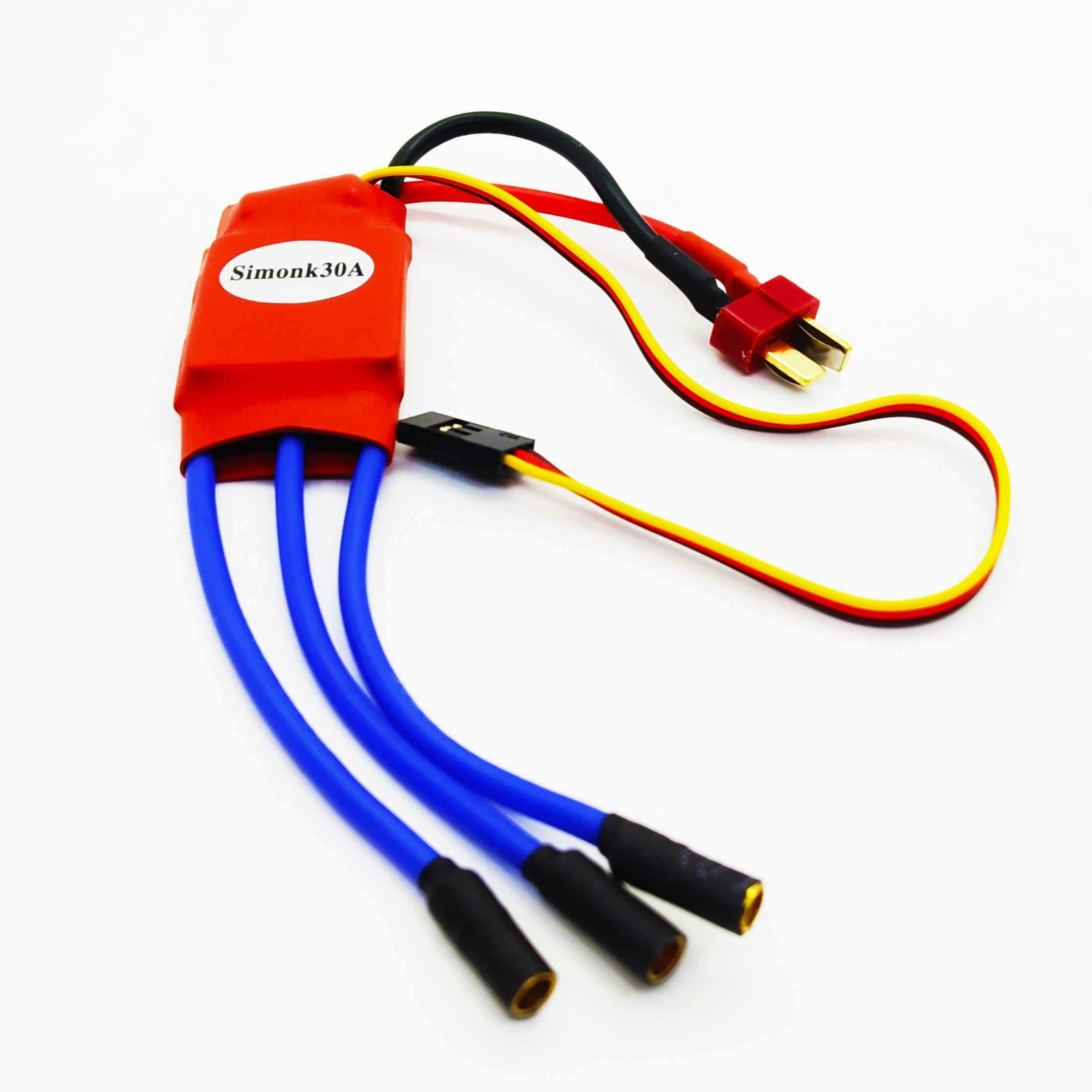

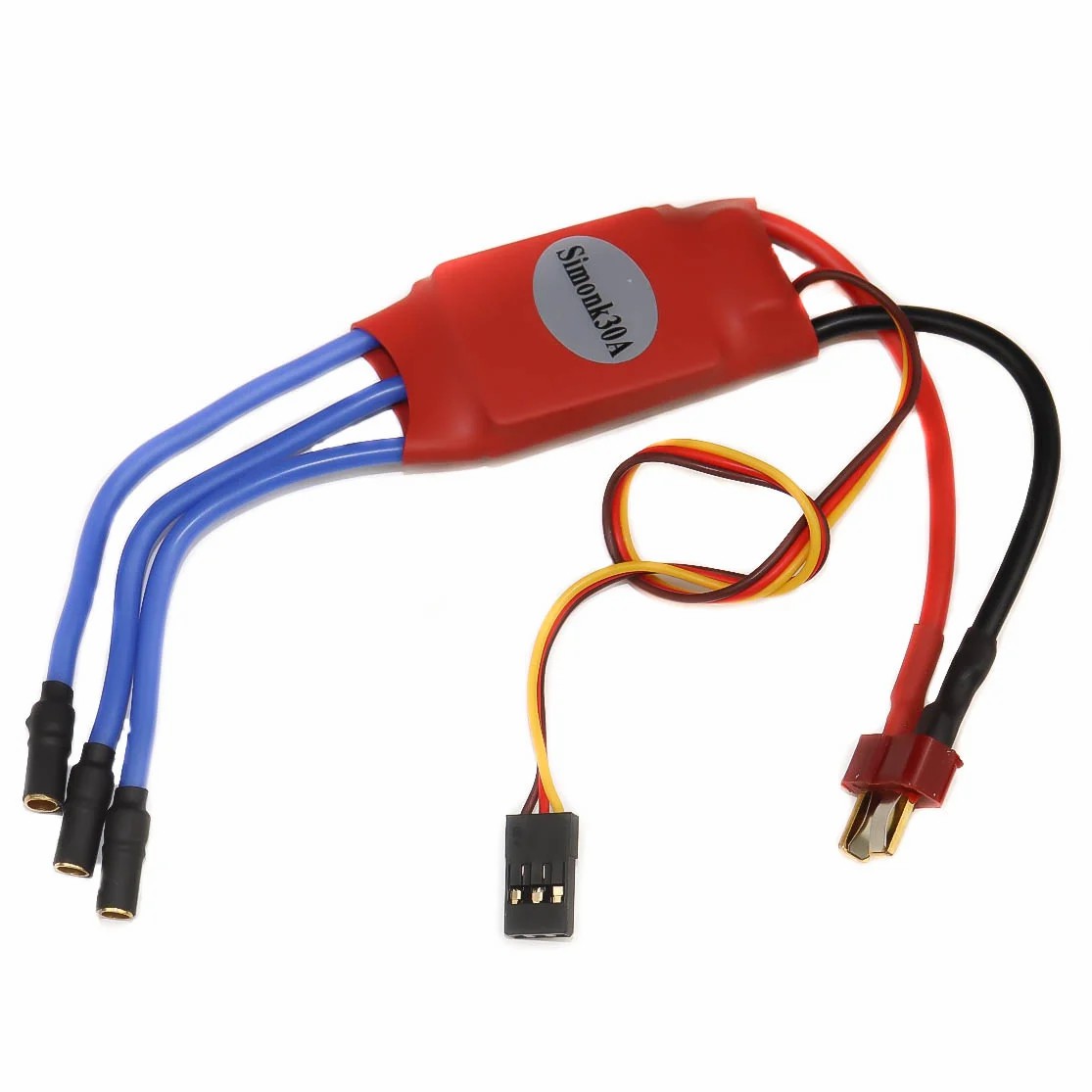

BLDC ESC (Electronic Speed
Controller) is a device designed to control the speed, direction, and braking
of brushless DC motors. Essential for drones, RC vehicles, and robotics, it
ensures smooth operation and efficient power management with precise throttle
response.
Description:
A BLDC ESC (Brushless DC Motor
Electronic Speed Controller) is a circuit that controls the speed, direction,
and braking of a Brushless DC (BLDC) motor. Unlike traditional brushed motor
controllers, a BLDC ESC uses pulse-width modulation (PWM) signals and
field-oriented control (FOC) techniques to regulate motor operation
efficiently. It is widely used in drones, RC vehicles, electric bikes, and
industrial automation applications.
Specifications:
Input Voltage: 6V – 60V (varies by model)
Current Rating: 10A – 200A (varies by
application)
PWM Input Signal: 50Hz – 500Hz (standard for RC
applications)
Motor Compatibility: Supports sensorless and
sensored BLDC motors
BEC Output: 5V/2A or higher (for powering
microcontrollers or receivers)
Protection Features: Over-current,
over-temperature, and low-voltage cutoff
Operating Modes: Forward, reverse, and braking
functions
Communication Interfaces: PWM, UART, CAN, or I²C
(depends on the model)
Features:
High-efficiency motor control with minimal heat
dissipation
Smooth acceleration and deceleration control
Compact and lightweight design for embedded
applications
Supports regenerative braking in some models
Adaptive timing for optimized motor performance
Programmable settings for throttle response and
braking force
Supports sensorless and sensored motor
configurations
Applications:
Drones & uavs: Provides precise speed control
for brushless drone motors
RC Vehicles & Boats: Enables proportional
throttle control for racing applications
Electric Bikes & Scooters: Powers hub motors
with efficient speed regulation
Industrial Automation: Used in conveyor belts,
robotic arms, and CNC machines
Wind Turbines & Generators: Helps control
motor speed for energy conversion
3D Printers & Robotics: Enables precision
motor control for movement and extrusion
