A Single Pole Single Throw
(SSPDT) relay module designed to handle up to 7 amps of current with a 12V
control signal. Ideal for switching a single circuit, this relay is commonly
used in automotive, industrial, and home automation applications where reliable
switching of high-power devices is required.
Description:

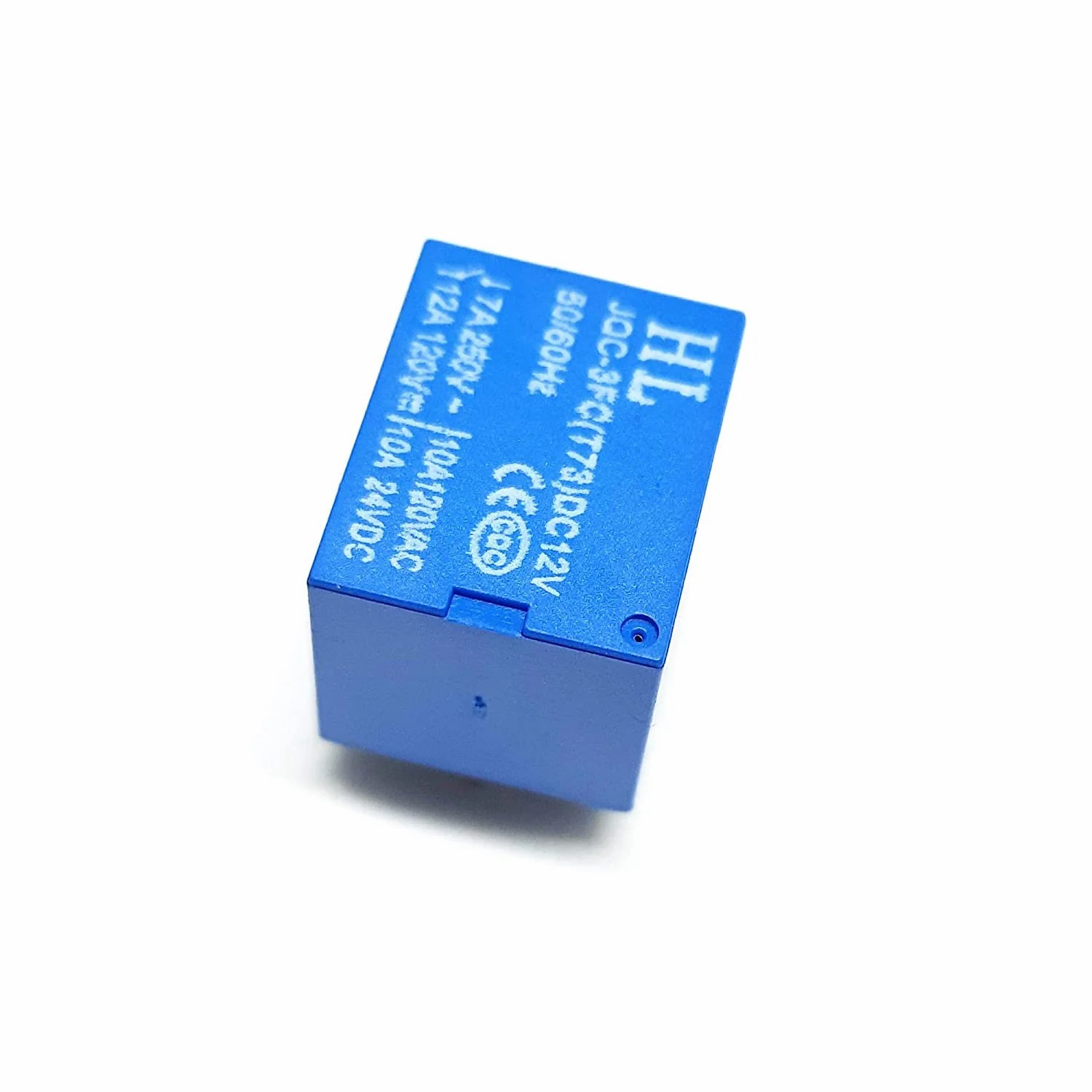

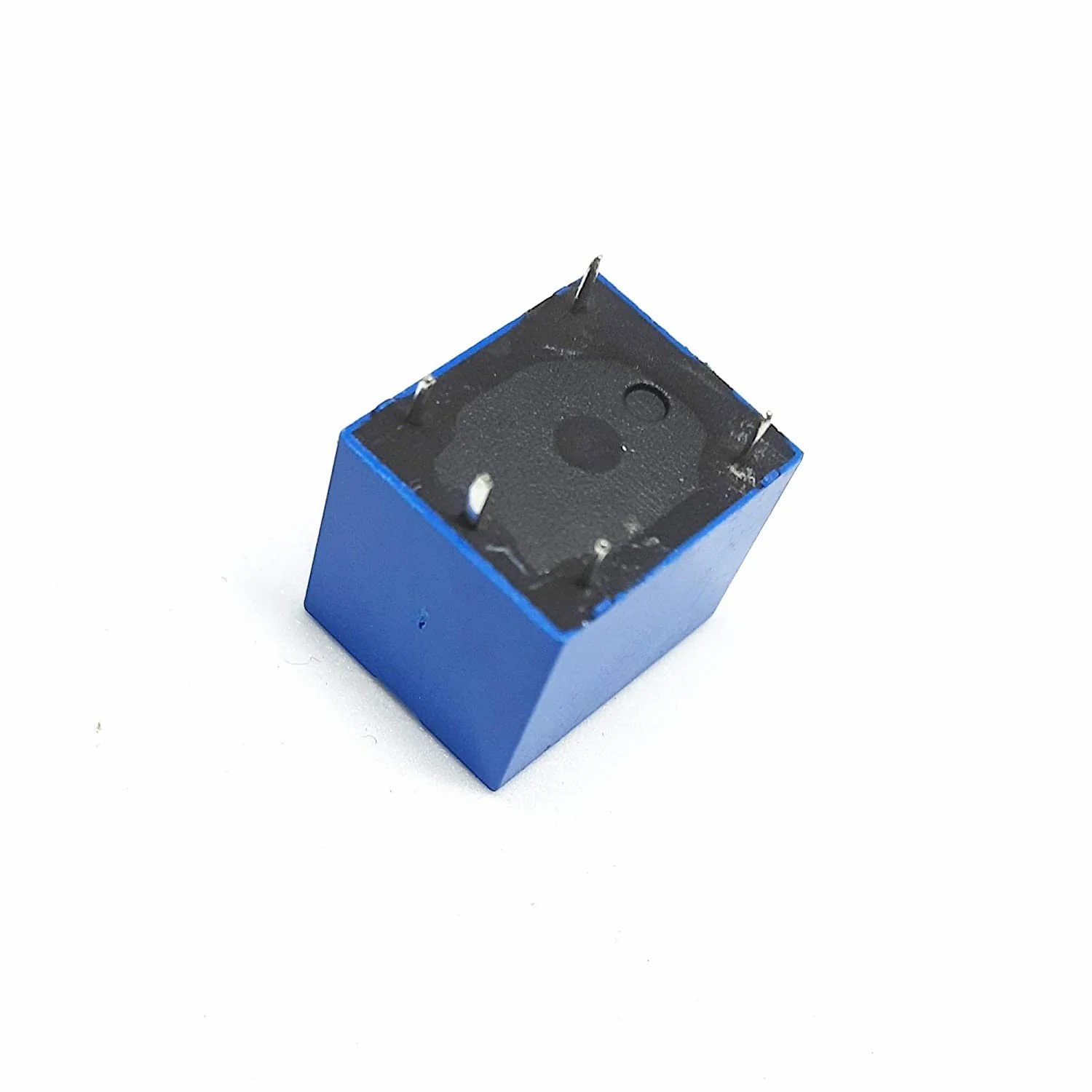

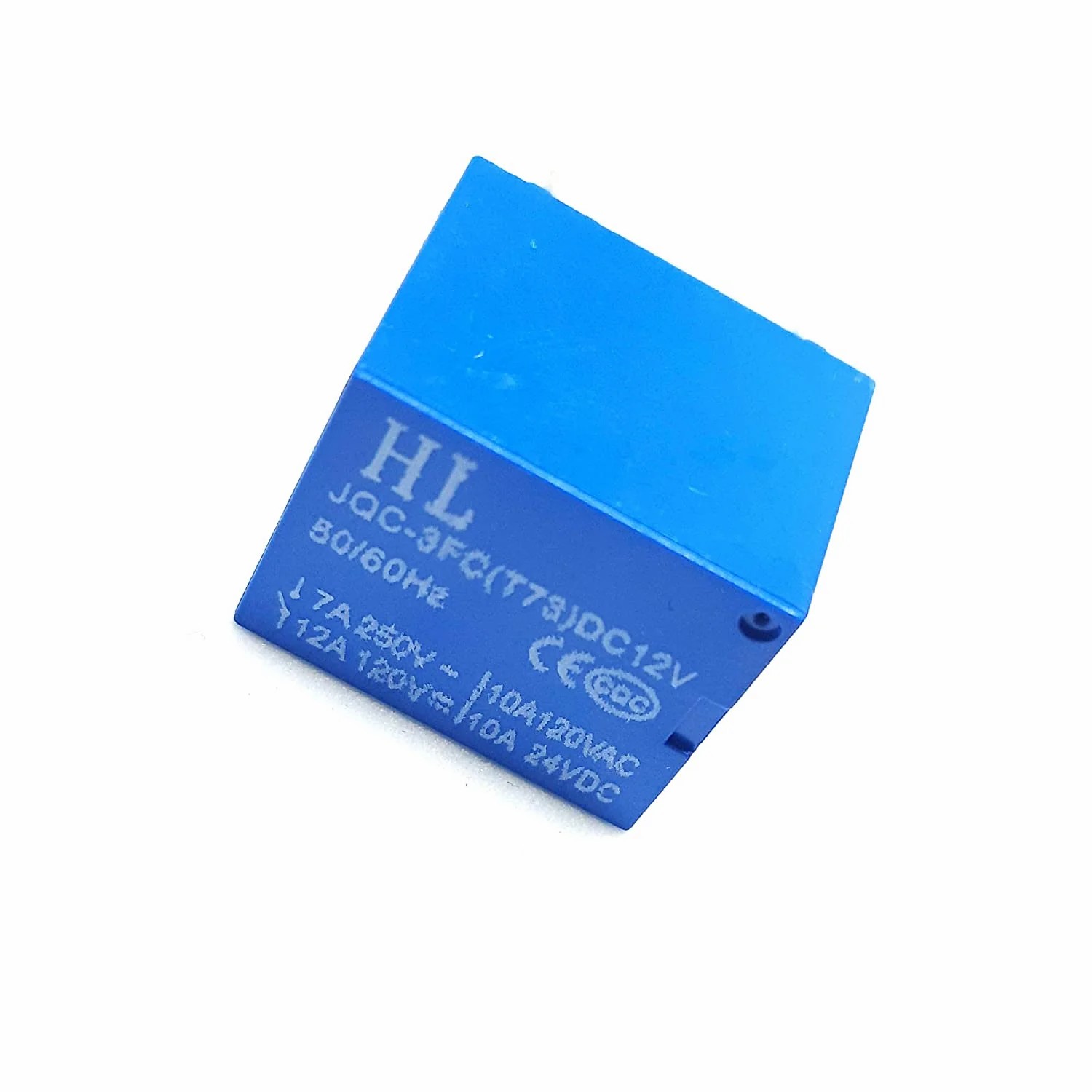

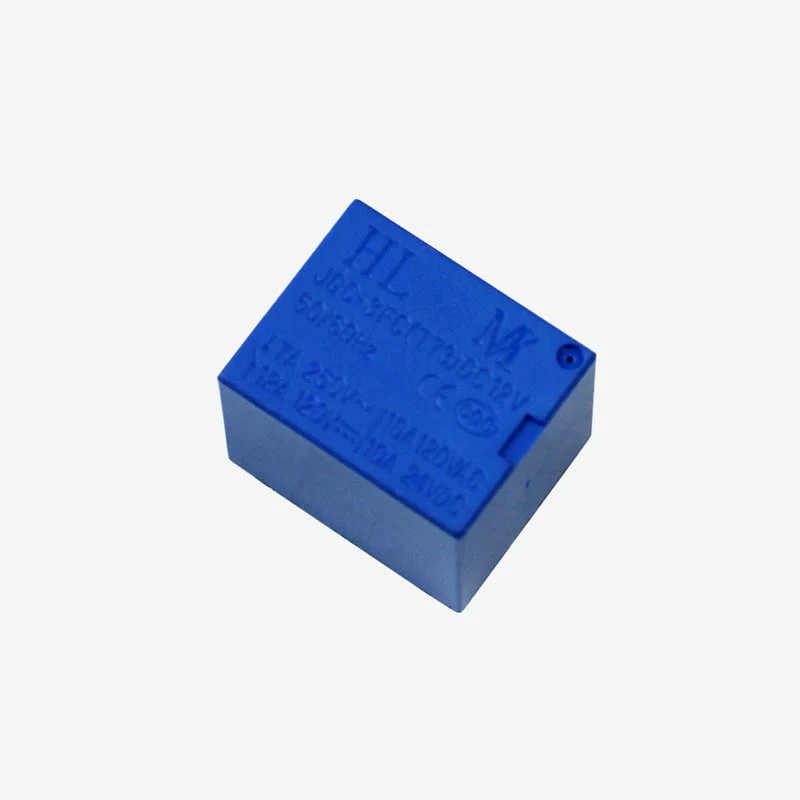

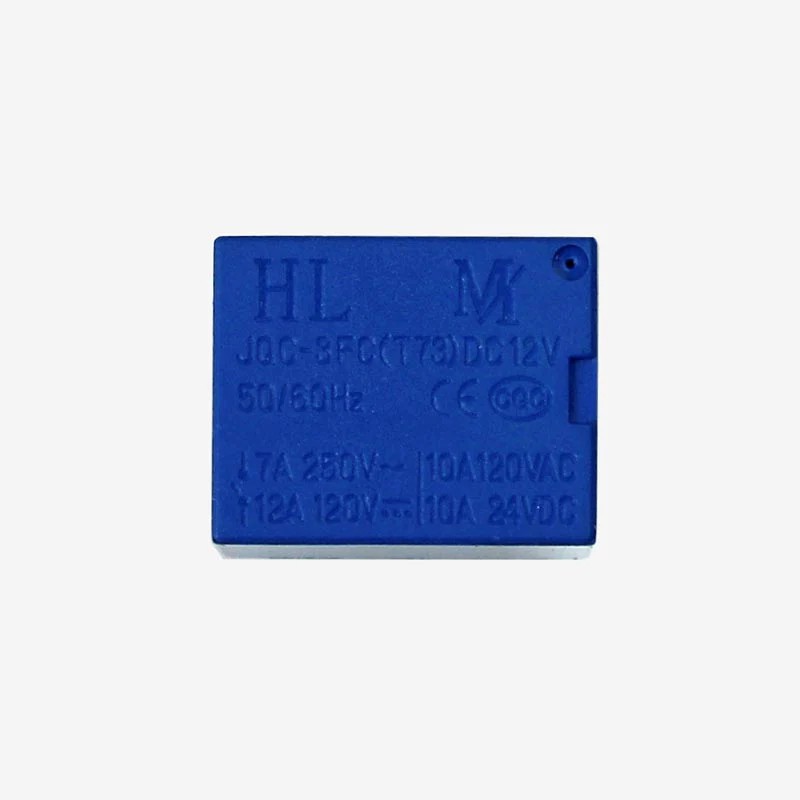

The SPDT 12V 7A Relay is an
electromechanical switch designed to control high-power devices using a 12V DC
trigger signal. It features a Single Pole Double Throw (SPDT) configuration,
providing both Normally Open (NO) and Normally Closed (NC) contacts. With a switching
capacity of up to 7A at 250V AC or 30V DC, it is ideal for home automation,
industrial control, and embedded system applications.
Specifications:
Operating Voltage: 12V DC
Current Rating: 7A
Relay Type: SPDT (Single Pole Double Throw)
Load Capacity:
AC: 250V AC @ 7A
DC: 30V DC @ 7A
Coil Resistance: ~400Ω
Trigger Voltage: 12V logic compatible
Contact Material: Silver alloy for durability
Dimensions: Compact and easy to integrate
Features:
SPDT Configuration allows switching between two
circuits
Compatible with microcontrollers such as Arduino,
Raspberry Pi, and ESP32
Reliable performance with long-lasting contacts
Compact design for easy mounting and integration
Low power consumption for efficient operation
Applications:
Home Automation: Controlling lights, fans, and
household appliances
Industrial Automation: Switching motors, pumps,
and solenoids
IoT & Embedded Systems: Remote control and
automation projects
Security Systems: Activating alarms, sirens, and
surveillance devices
Robotics: Powering actuators and high-power
component.
