Designed for controlling
high-current motors, capable of handling up to 43A of continuous current. With
integrated protection features such as over-temperature and over-current
protection, it's ideal for driving large DC motors in industrial, automotive,
and robotics applications, ensuring reliable and smooth operation.
Description:

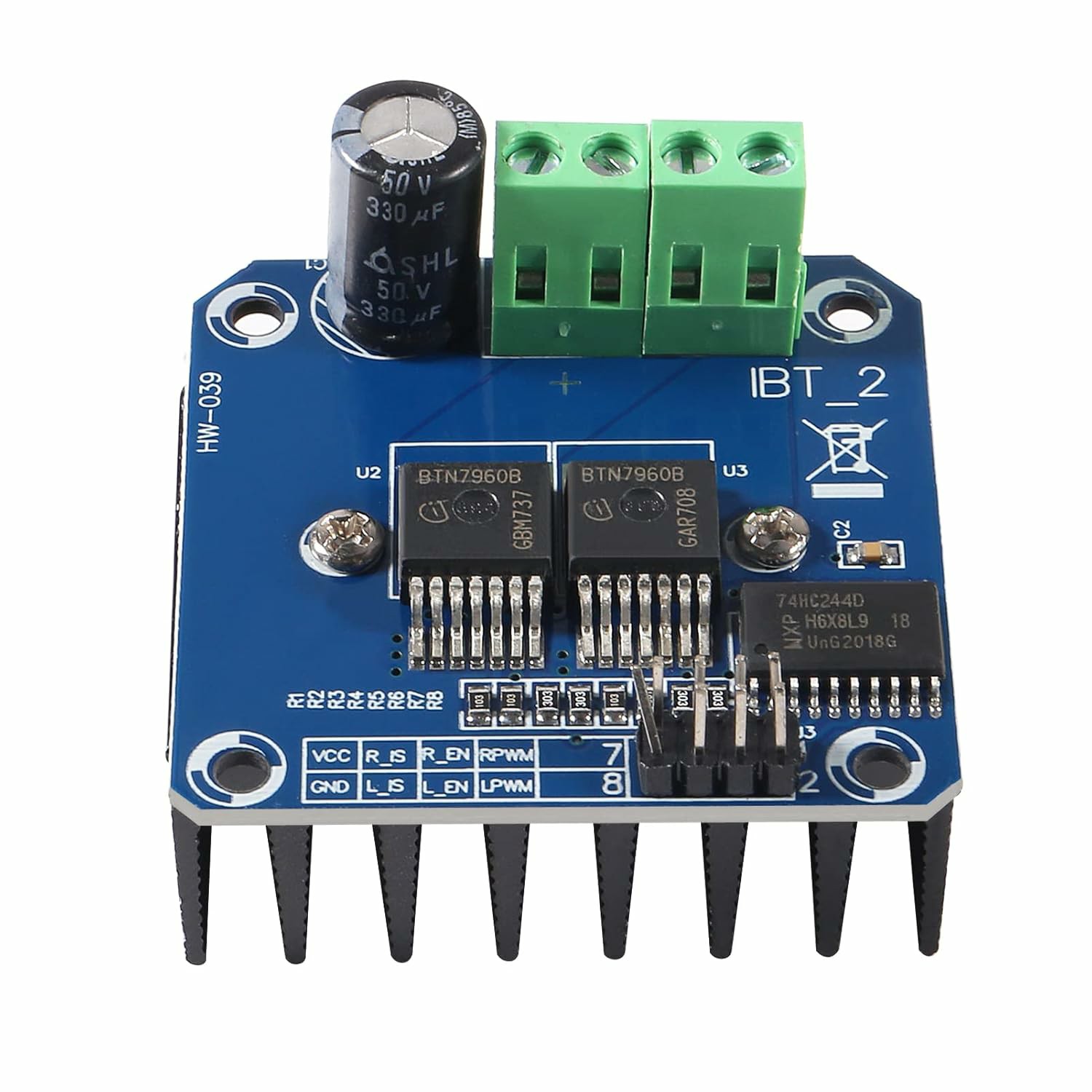

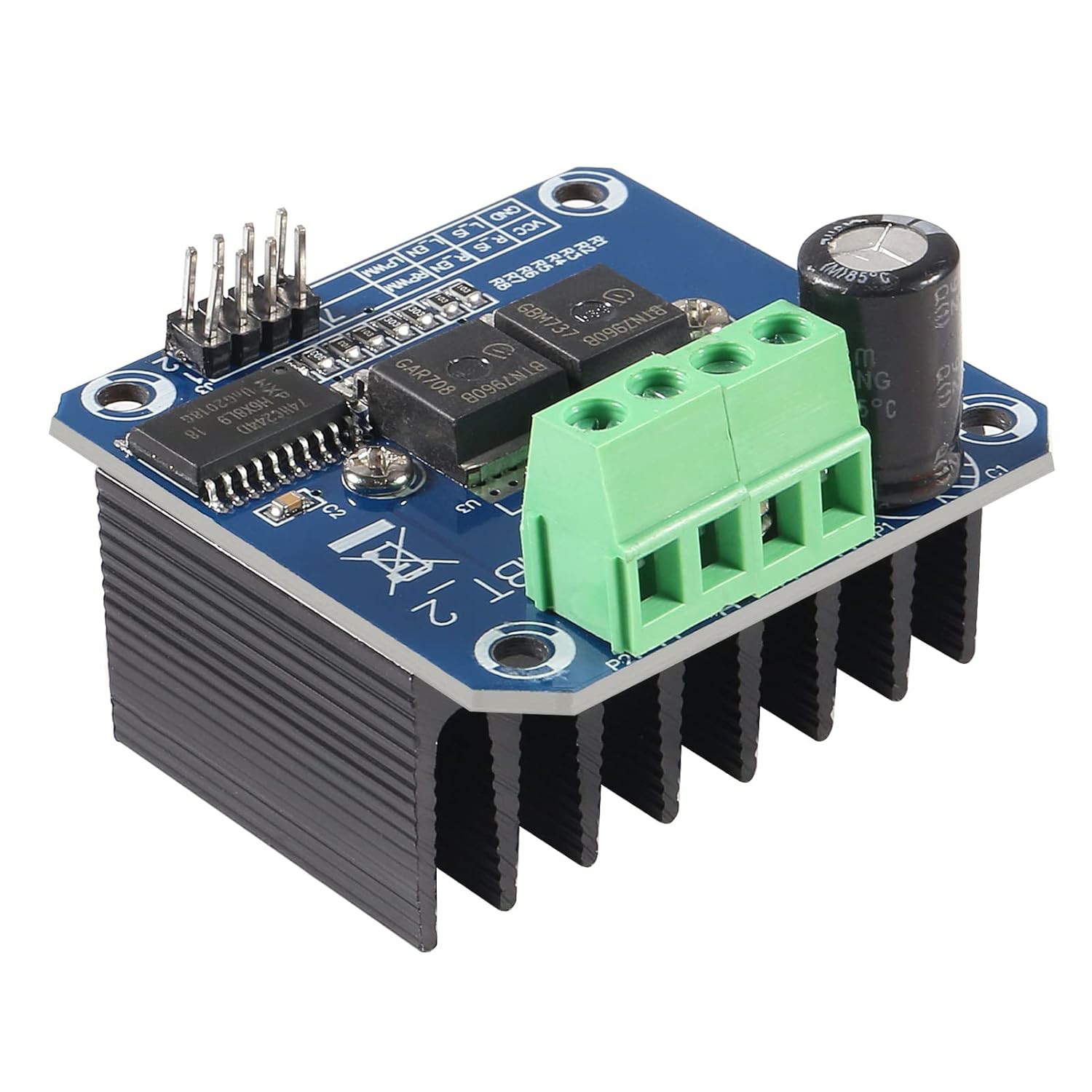

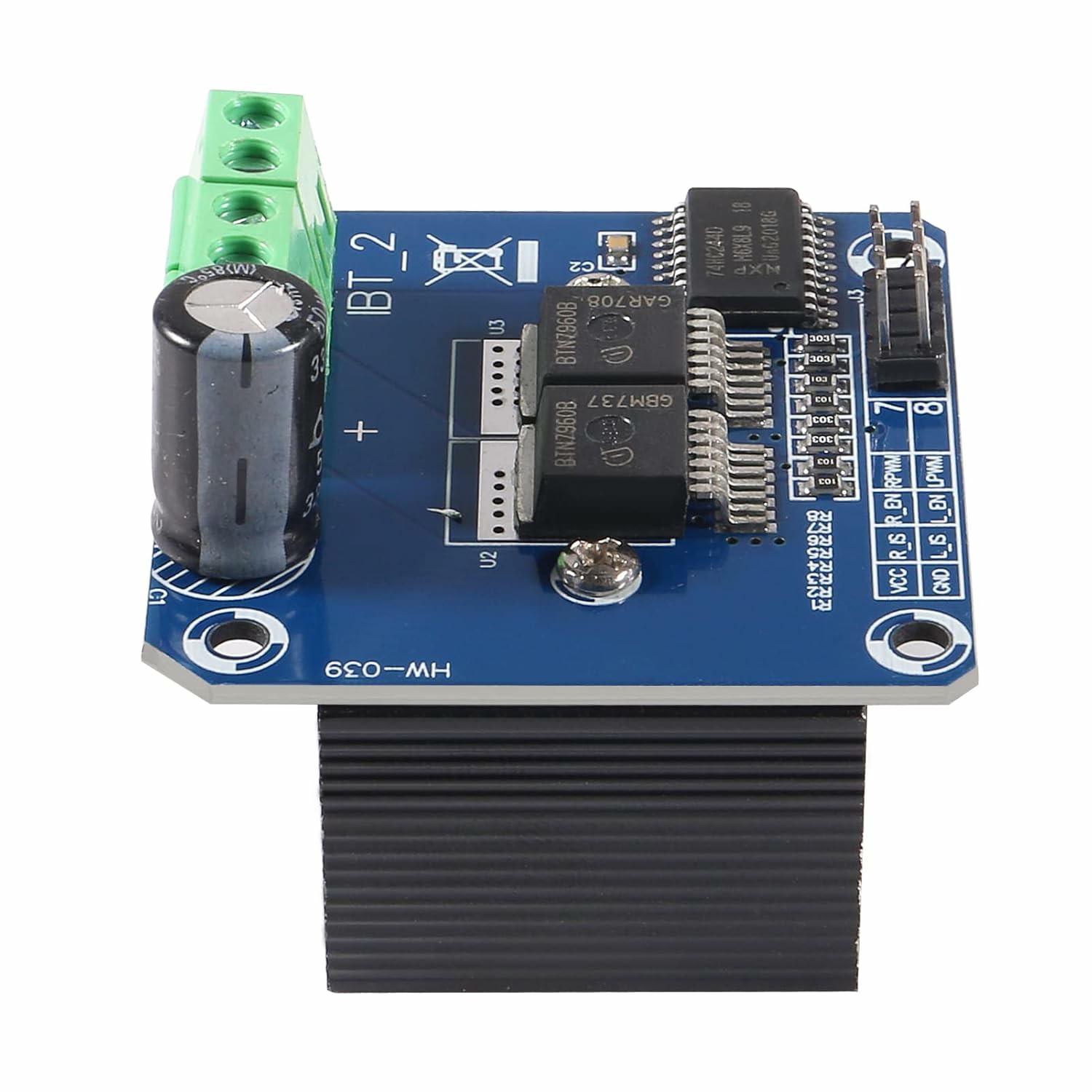

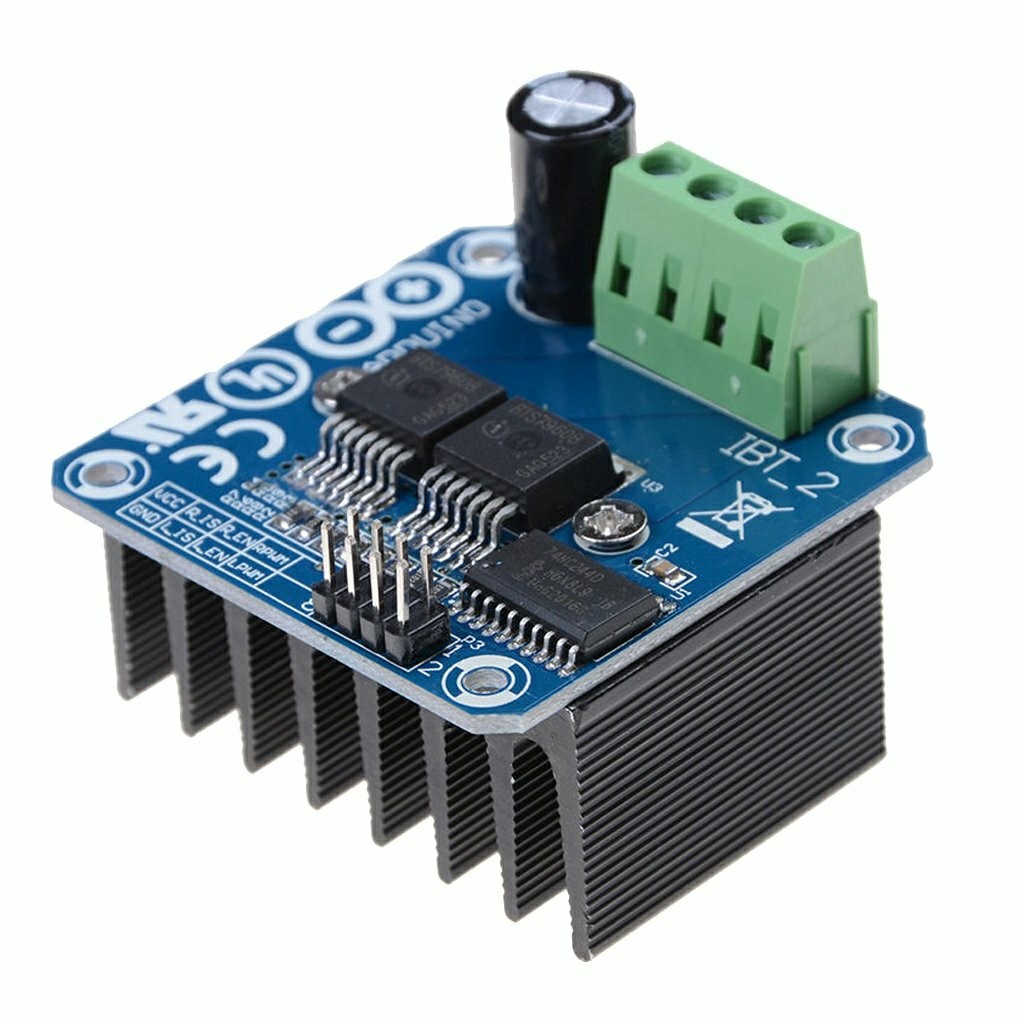

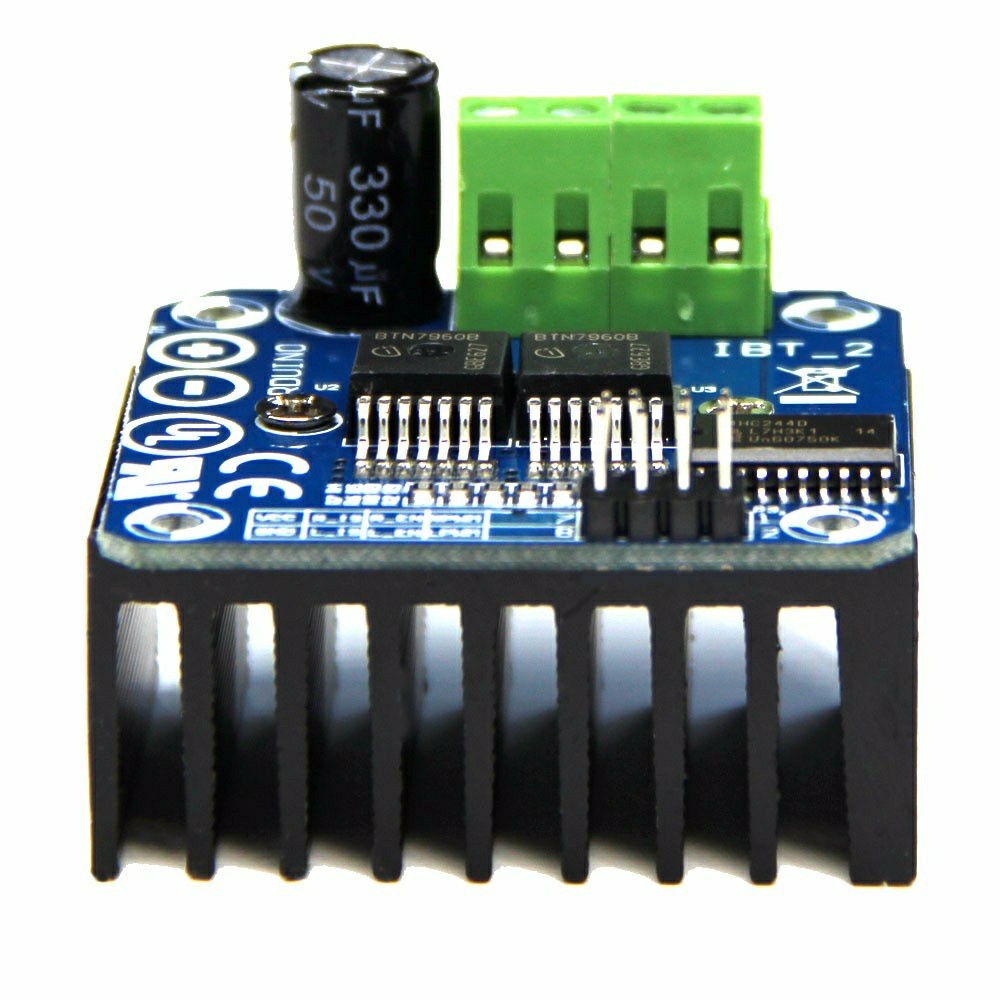

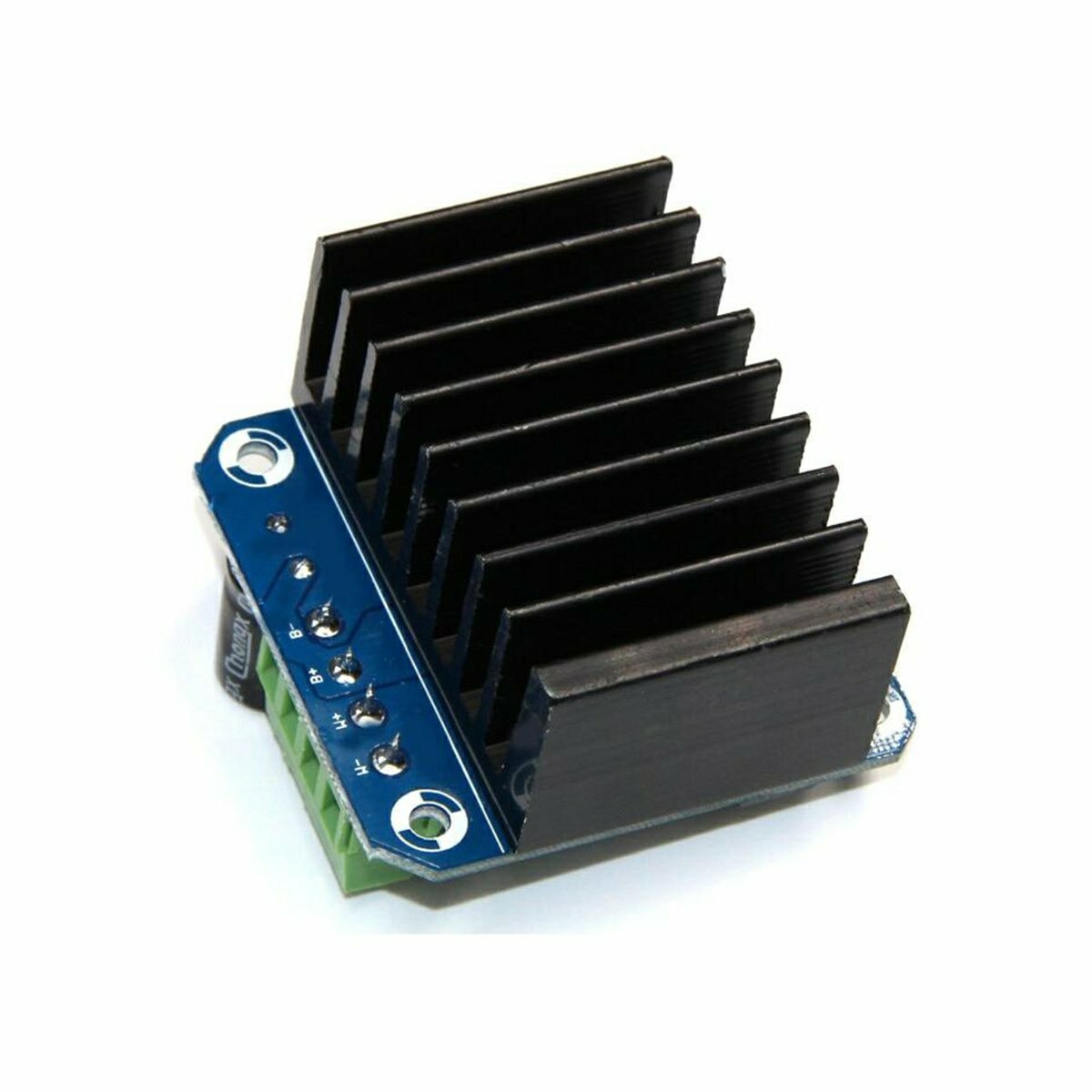

The BTS7906B is a high-power
H-Bridge motor driver designed to control DC motors with high current demands.
It is ideal for robotics, industrial automation, and automotive applications.
With a maximum current rating of 43A, it efficiently drives motors while
offering overcurrent, overtemperature, and short-circuit protection.
Specifications:
Operating Voltage: 5.5V – 42V DC
Maximum Continuous Current: 43A
Peak Current: 100A (short duration)
PWM Frequency: Up to 25 kHz
Logic Level Voltage: 3.3V / 5V compatible
Thermal Shutdown Protection: Yes
Overcurrent Protection: Yes
Package Type: TO-263-7
Features:
Dual Half-Bridge Configuration: Drives a single
DC motor in both directions
High Current Handling: Supports up to 43A
continuous current
Integrated Protection: Overcurrent, thermal, and
short-circuit protection
PWM Control: Compatible with microcontrollers for
speed and direction control
Low Power Consumption: Efficient operation with
minimal heat generation
Robust Design: Suitable for automotive and
industrial environments
Applications:
Robotics: Controlling high-power DC motors in
robotic arms and mobile robots
Electric Vehicles: Used in small electric vehicle
motor controllers
Industrial Automation: Drives high-power
actuators and conveyor belts
Smart Home Automation: Controls high-power
motorized systems like doors and windows
Automotive Systems: Power window, wiper, and seat
adjustment motors
