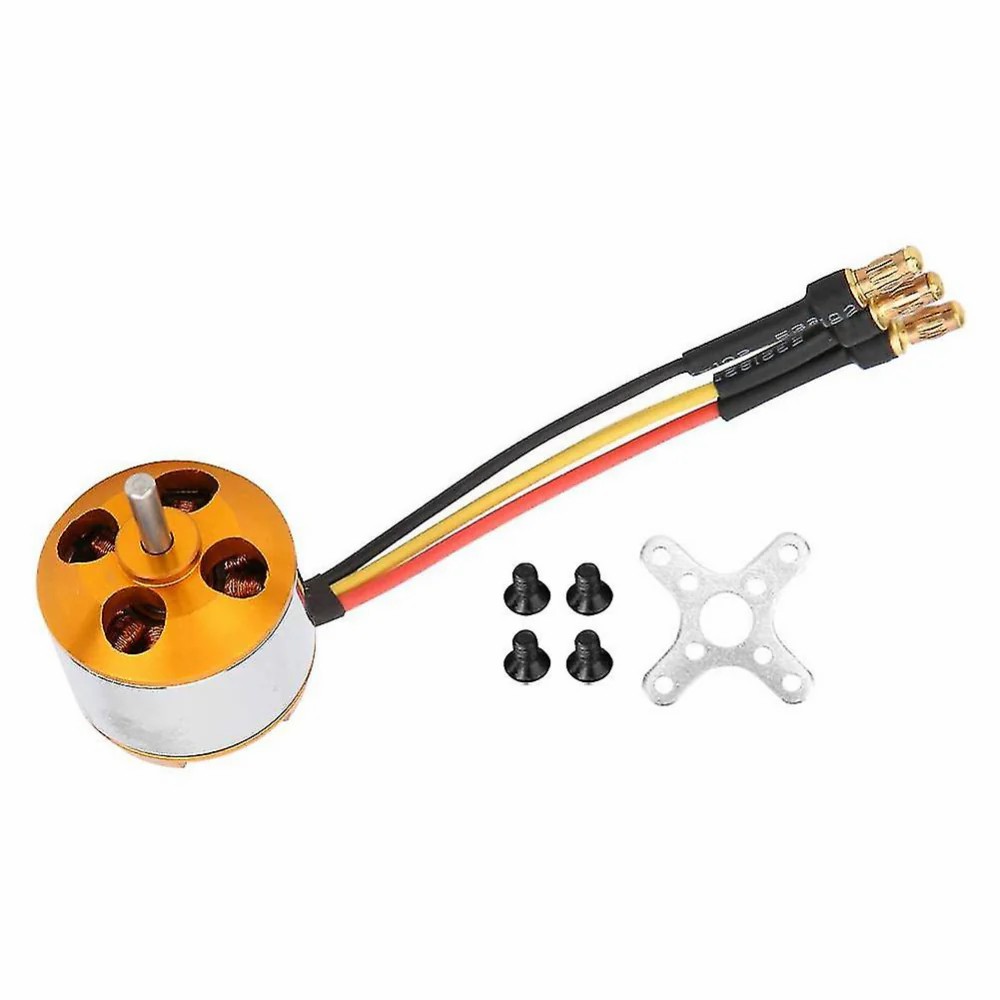

A212 BLDC Motor 1200KV: A
powerful brushless DC motor with a 1200KV rating, providing high-speed and
efficient performance for applications like drones, RC vehicles, and robotics.
Its brushless design ensures smooth operation with reduced wear and enhanced
durability.
Description:
The 1200KV Brushless DC (BLDC)
motor is a high-speed motor designed for applications that require a balance
between torque and RPM. The "1200KV" rating means the motor rotates
at 1200 RPM per volt applied. It is commonly used in RC drones, airplanes,
electric vehicles, and robotics. Unlike brushed motors, BLDC motors operate
with electronic commutation, ensuring higher efficiency, lower heat generation,
and longer lifespan. An electronic speed controller (ESC) is required to drive
the motor.
Specifications:
KV Rating: 1200KV (1200 RPM per volt)
Operating Voltage: 7.4V – 22.2V (2S – 6S LiPo)
Power Output: Typically 200W – 600W
Current Draw: 10A – 45A (depending on load and power)
No. of Poles: Usually 12N14P or 14N12P
Mounting Hole Distance: Standard 16mm or 19mm pattern
Shaft Diameter: Typically 3mm – 5mm
Weight: Approximately 50g – 120g
Features:
High-speed operation with minimal energy loss
Brushless design for enhanced durability and
reliability
High power-to-weight ratio, making it suitable
for aerial and mobile applications
Low heat generation due to efficient electronic
commutation
Requires an ESC for precise speed and direction
control
Applications:
Drones & Quadcopters: Provides high RPM and efficient thrust for
stable flight
RC Aircraft & Helicopters: Ideal for high-speed flight and maneuverability
Electric Vehicles (EVs): Suitable for small e-bikes and lightweight
electric transport solutions
