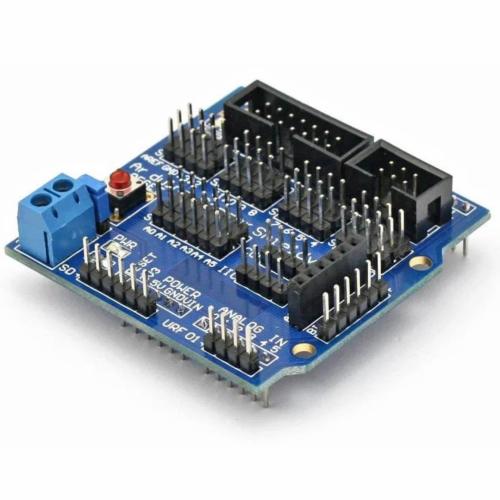

The Arduino Sensor Shield is an expansion board designed to simplify the
connection of sensors and other peripherals to an Arduino board. It provides
labeled pin headers for easy integration with various sensors, motors, and
actuators, making it ideal for prototyping and IoT projects.
Description:
Arduino sensor shield is
specifically designed for Arduino board to connect to various types of
electronic brick modules. The latest version of shield can support electronic bricks with
3-wire and 4-wire communication, and it is compatible with the mainstream two
interfaces of electronic bricks in the market: 2.0mm 4-pin grove interface and
2.54mm 3-pin interface. Each functional module has buckled port with VCC, GND
and Output, which has corresponding port on the Sensor Shield, connected with a plain 2.54mm
dual-female cable you may start playing already. Buckled brick cables are like
cement for bricks make the connections easier, secure and more professional
looking.
FEATURES:
· Input voltage: 5v
· Compatible interfaces: 2.54 3/4-pin
interface
· PCB size: 61.0mm X 55.46mm X 1.6mm
· Digital IO port 54 ports prepared to
digital modules or servos
· Analog IO Port 16 ports prepared to
analog sensor input
