Description:

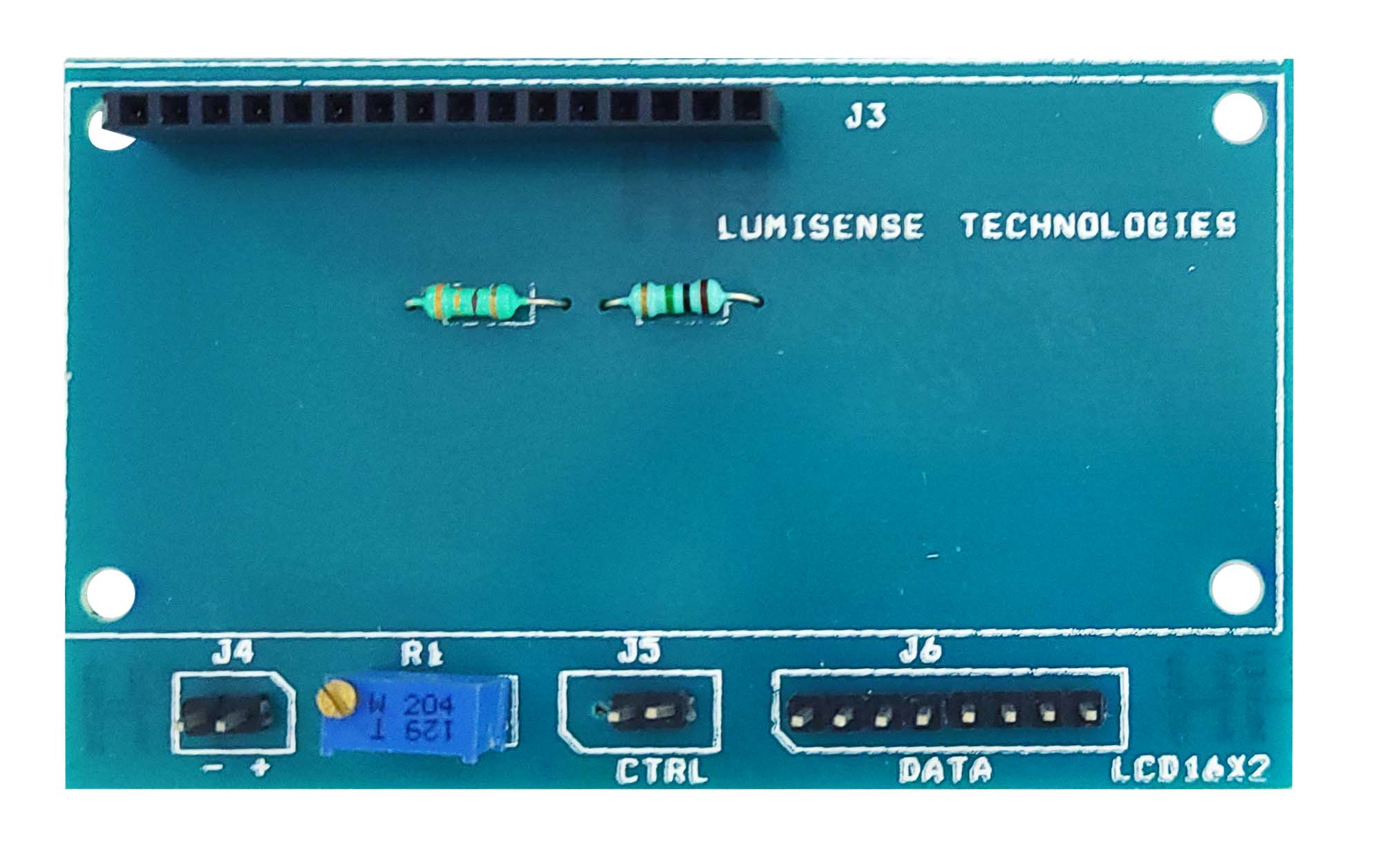

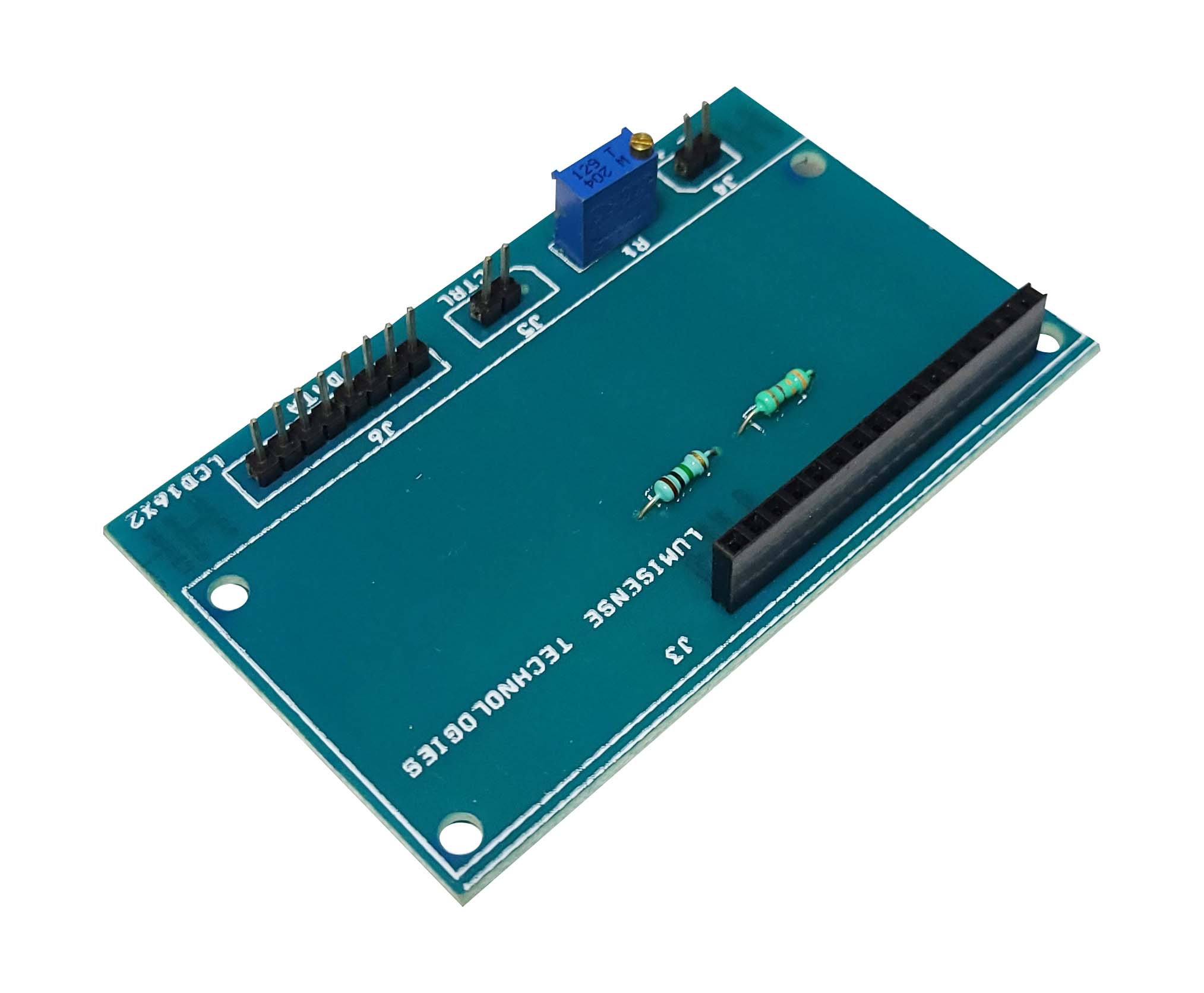

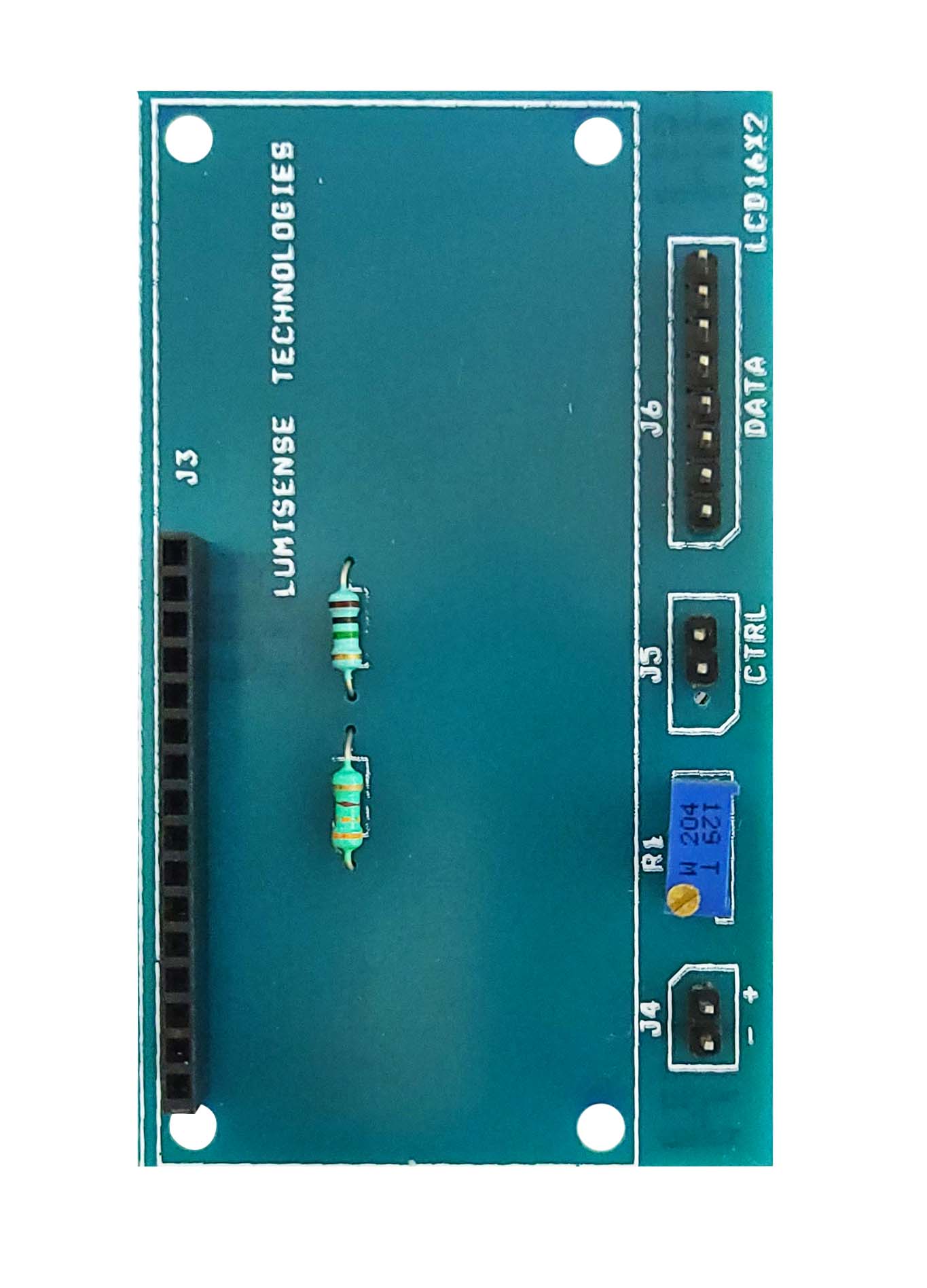

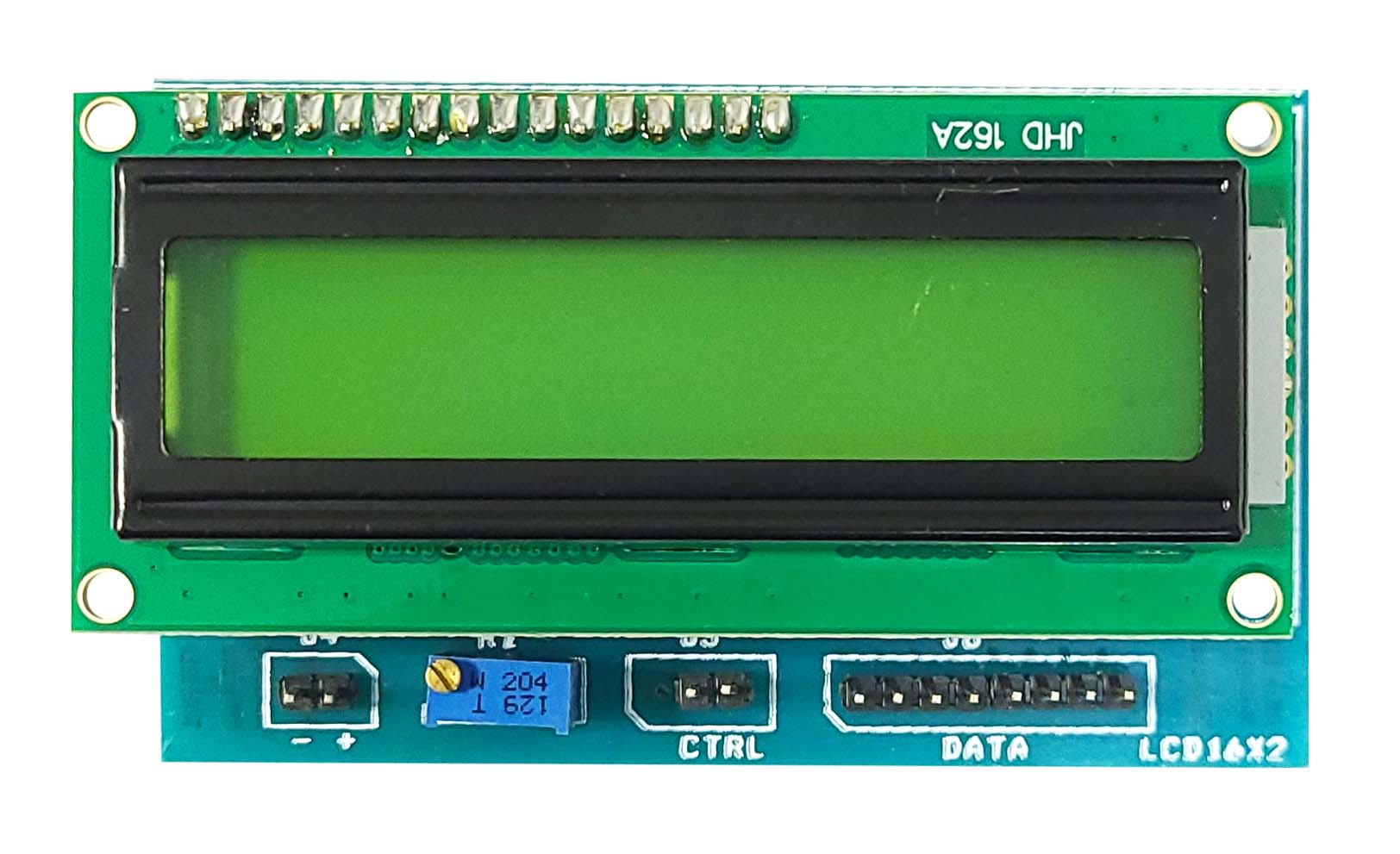

The LCD Interface Module is designed for seamless integration with Raspberry Pi and Arduino for displaying text, graphics, or sensor data. It provides a simple plug-and-play interface with multiple communication options like I2C, SPI, and Parallel (GPIO), making it an excellent choice for hobbyists and professionals alike. This module supports various LCD types, including 16x2, 20x4 character displays, and graphical LCDs, enhancing user interaction in embedded projects.

Specification:

• Compatibility: Works with Raspberry Pi (all models) & Arduino (Uno, Mega, Nano, etc.)
• Display Support:
• Character LCDs: 16x2, 20x4
• Graphical LCDs: 128x64, 240x128 (depending on the variant)
• Communication Interfaces:
• I2C (SDA, SCL) for minimal wiring
• SPI for high-speed communication
• Parallel GPIO (4-bit or 8-bit mode) for direct interfacing
• Operating Voltage: 5V (Compatible with 3.3V using level shifters)
• Backlight: LED backlight with adjustable brightness
• Contrast Control: Onboard potentiometer for manual contrast adjustment
• Dimensions: Varies based on display type

Features:

• Multi-interface support (I2C/SPI/Parallel) for easy integration
• Low power consumption, suitable for battery-powered projects
• Backlight control for better visibility in different lighting conditions
• Compact and lightweight, ideal for portable applications
• Pre-soldered header pins for quick prototyping

Applications:

• DIY Electronics: Display sensor data, real-time clocks, and system status
• Home Automation: Monitor temperature, humidity, and security system information
• Industrial Monitoring: Display machine status, error messages, and logs
• Robotics: Provide visual feedback for control systems
• IoT Projects: Integrate with Wi-Fi modules for smart applications
