Description:

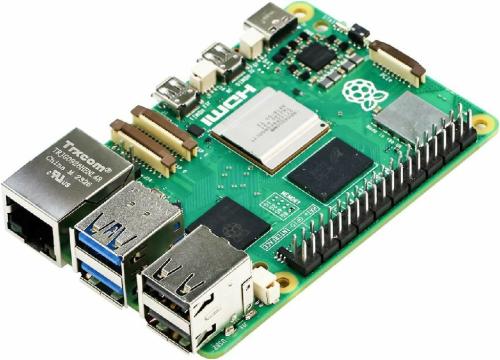

The Raspberry Pi 5 (8GB) is a
cutting-edge single-board computer that brings incredible performance
enhancements and new features compared to its predecessors. It is ideal for
users needing a powerful and versatile platform for a variety of applications,
including desktop computing, gaming, robotics, IoT, and media consumption.
The board is equipped with a
Broadcom BCM2712 processor, which offers a quad-core Cortex-A76 CPU running at
2.4GHz and a VideoCore VII GPU for high-quality graphical performance. With 8GB
of LPDDR4X SDRAM, this version is suitable for demanding tasks such as
multitasking, AI processing, and multimedia applications.
Key Features of
Raspberry Pi 5 (8GB)
1.
Processor (CPU)
Broadcom
BCM2712 quad-core 64-bit Arm Cortex-A76 CPU, running at 2.4GHz. Comes with
cryptography extensions for enhanced security. It includes a 512KB per-core L2
cache and a 2MB shared L3 cache for better data processing.
2.
Graphics (GPU)
VideoCore
VII GPU supports OpenGL ES 3.1 and Vulkan 1.2, making it ideal for
high-performance graphical applications. The GPU provides 4Kp60 support, making
it suitable for high-definition multimedia and gaming experiences.
3.
Memory (RAM)
8GB
LPDDR4X-4267 SDRAM provides ample memory for multitasking, resource-intensive
applications, and smoother performance.
4.
Display
Dual
4Kp60 HDMI display output supports up to 4K resolution at 60Hz with HDR
support, delivering high-quality visual content. The 4Kp60 HEVC decoder enables
smooth 4K video playback.
5.
Connectivity
Dual-band
802.11ac Wi-Fi supports both 2.4GHz and 5GHz wireless networks for faster and
more reliable wireless connectivity. Bluetooth 5.0 and Bluetooth Low Energy
(BLE) allow for easy connection with various Bluetooth devices. Gigabit
Ethernet offers high-speed wired networking and supports PoE+ (Power over
Ethernet) with an additional PoE+ HAT.
6.
USB Ports
Includes
two USB 3.0 ports supporting simultaneous 5Gbps operation for high-speed data
transfer and two USB 2.0 ports for connecting peripherals such as keyboards,
mice, and other USB devices.
7.
Storage
The
microSD card slot supports high-speed SDR104 mode for fast data transfer and
boot times. The system can be expanded with external storage through the PCIe
2.0 x1 interface, which requires a separate M.2 HAT or other adapters.
8.
Power
Powered
via a 5V/5A DC USB-C connector with Power Delivery support for stable power
management. A power button allows for easy power control.
9.
Camera and Display Interfaces
Equipped
with two 4-lane MIPI camera/display transceivers, enabling the connection of
compatible cameras and displays for various applications, from surveillance to
interactive displays.
10.
Additional Features
The
Raspberry Pi standard 40-pin GPIO header allows interfacing with sensors,
actuators, and other hardware projects. A real-time clock (RTC), powered by an
external battery, ensures accurate timekeeping even when the board is powered
off.
Specifications of
Raspberry Pi 5 (8GB)
1
Processor
Broadcom
BCM2712, 2.4GHz quad-core 64-bit Arm Cortex-A76 CPU with cryptography
extensions for enhanced security. Includes 512KB per-core L2 cache and a 2MB
shared L3 cache.
2
Graphics
VideoCore
VII GPU supports OpenGL ES 3.1 and Vulkan 1.2.
3
Display
Dual
4Kp60 HDMI display output with HDR support and a 4Kp60 HEVC decoder for
high-quality video playback.
4
Memory
8GB
LPDDR4X-4267 SDRAM ensures efficient multitasking and handles heavy workloads
effectively.
5
Connectivity
Dual-band
802.11ac Wi-Fi supports 2.4GHz and 5GHz networks. Bluetooth 5.0 and Bluetooth
Low Energy (BLE) enable seamless connectivity. Gigabit Ethernet supports PoE+
with a separate PoE+ HAT.
6
USB Ports
Includes
two USB 3.0 ports with simultaneous 5Gbps operation and two USB 2.0 ports for
peripheral connectivity.
7
Storage
Features
a microSD card slot supporting high-speed SDR104 mode. PCIe 2.0 x1 interface
allows connection to fast peripherals, requiring a separate M.2 HAT or adapter.
8
Power Supply
Operates
on a 5V/5A DC supply via USB-C with Power Delivery support. A power button
allows for power management.
9
GPIO
Standard
Raspberry Pi 40-pin header allows for hardware interfacing.
10
Camera & Display
Includes
two 4-lane MIPI camera/display transceivers for various display and camera
applications.
11
Real-Time Clock (RTC)
Powered
by an external battery to maintain accurate timekeeping even when the device is
powered off.
Applications of
Raspberry Pi 5 (8GB)
The
Raspberry Pi 5 (8GB) is ideal for various use cases, including:
1.
Desktop Computing
An
affordable alternative to traditional PCs, suitable for web browsing, email,
and document editing.
2.
Media Center
Capable
of streaming 4K content, making it ideal for home theater and media center
setups.
3.
IoT Projects
The
GPIO header, combined with Wi-Fi, Ethernet, and Bluetooth connectivity, makes
it perfect for building IoT devices and smart home solutions.
4.
Robotics
The
GPIO and PCIe interface enable control over robotics platforms with enhanced
performance.
5.
Gaming
Great
for retro gaming emulation and even lightweight modern gaming.
6.
Server Applications
Useful
for file servers, web servers, or VPN servers, thanks to its high-speed
Ethernet and USB 3.0 connectivity.
7.
Education
Perfect
for programming education, STEM learning, and hands-on electronics projects.
