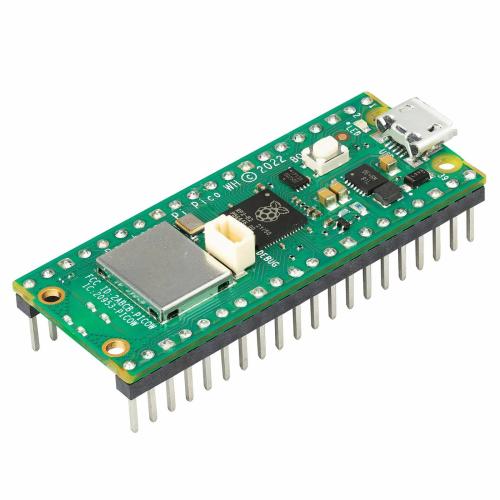

Raspberry Pi Pico W with
built-in Wi-Fi, enabling wireless IoT applications. It features the RP2040
dual-core ARM Cortex-M0+ processor for efficient performance.
Description:
The Raspberry Pi Pico
W is an upgraded version of the popular Raspberry Pi
Pico microcontroller board. It adds built-in Wi-Fi
capability with a 2.4GHz wireless interface for IoT (Internet of
Things) and smart device applications. Powered by the RP2040
microcontroller, the Pico W is designed to be a low-cost yet powerful platform
for embedded systems, IoT projects, and other small-scale computing
applications. It offers powerful features, including a dual-core Arm
Cortex-M0+ processor, 264KB SRAM, and 2MB of onboard flash storage. This makes
it an ideal choice for hobbyists and developers looking to create innovative,
wireless, and battery-efficient devices.
With Programmable I/O
(PIO) and a variety of connectivity options, the Raspberry Pi Pico W is a
versatile development board, offering the flexibility needed for complex
projects. It retains all the benefits of the Pico, with the added advantage
of Wi-Fi support, making it an excellent choice for wireless applications.
Key Features:
RP2040 microcontroller chip: Custom-designed by
Raspberry Pi, featuring dual-core ARM Cortex-M0+ processors running up
to 133 MHz.
264KB SRAM and 2MB onboard QSPI
Flash for storing programs and data.
Integrated Wi-Fi (802.11n) using
the Infineon CYW43439 chip for 2.4 GHz wireless connectivity.
Programmable I/O (PIO): 8 programmable state
machines for custom peripheral support and flexible I/O control.
26 multi-function GPIO pins, supporting a range
of digital I/O, PWM, SPI, UART, I2C, and ADC.
USB 1.1 Host and Device support for
connecting peripherals like keyboards, mice, or storage devices.
Low power consumption, ideal for battery-powered
applications.
Drag-and-drop programming: Easily upload code via
USB in formats like UF2 or binary.
Onboard temperature sensor and accurate
clock/timer for precision applications.
Compact size: 21mm x 51mm, making it suitable for
space-constrained embedded projects.
Specifications:
Microcontroller: RP2040
Processor: Dual-core ARM Cortex-M0+ at
up to 133 MHz
RAM: 264 KB SRAM
Flash Storage: 2MB onboard QSPI Flash memory
Wi-Fi: 2.4GHz (802.11n) wireless support
via Infineon CYW43439 chip
GPIO Pins: 26 multi-function GPIO pins, with:
2 SPI interfaces
2 I2C interfaces
2 UART interfaces
3 analog inputs (12-bit ADC)
16 controllable PWM channels
USB: USB 1.1 (Micro USB for power and data
transfer)
Power Supply: 1.8V to 5.5V via Micro USB or GPIO
pins
Power Consumption: Low power consumption,
suitable for battery-powered projects
Programming: MicroPython, C, C++
Drag & Drop: For easy code upload via USB
mass storage
Onboard Features: Temperature sensor, clock, and
timer on-chip
Size: 51mm x 21mm
Weight: ~20g
Applications:
Internet of Things (IoT): The Pico W's integrated
Wi-Fi makes it ideal for IoT applications, including home automation,
smart sensors, and wireless control systems.
Embedded Systems: Use the Pico W as the core
controller for embedded devices in industries like robotics, smart
devices, and remote monitoring systems.
Wireless Communication: With 2.4GHz Wi-Fi
capability, the Pico W is well-suited for projects requiring wireless
communication, such as remote sensors, wearables, and connected devices.
Low Power and Battery-Powered Projects: Its low
power consumption is perfect for battery-powered applications, making it
ideal for portable, energy-efficient devices.
Prototyping and Education: The Pico W is great
for students and hobbyists who are learning embedded systems and
programming. The drag-and-drop feature and flexible I/O make it simple to
get started with various projects.
Data Logging and Remote Sensing: Use the Pico W
for capturing sensor data and transmitting it wirelessly to a remote
server or cloud-based platform.
Wearables and Health Monitoring: The small size
and low power make it an excellent choice for wearable devices like
fitness trackers or health monitoring systems.
