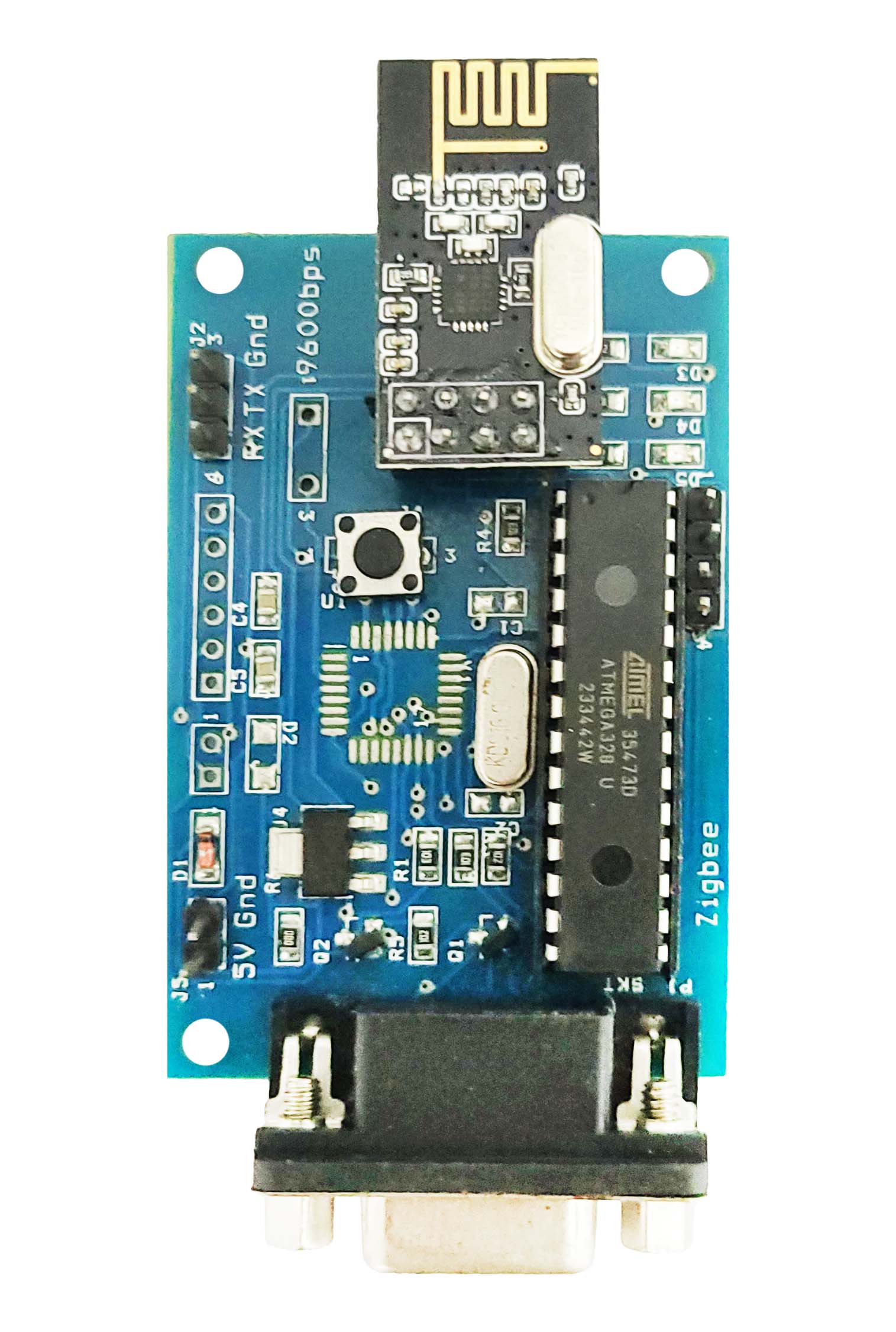

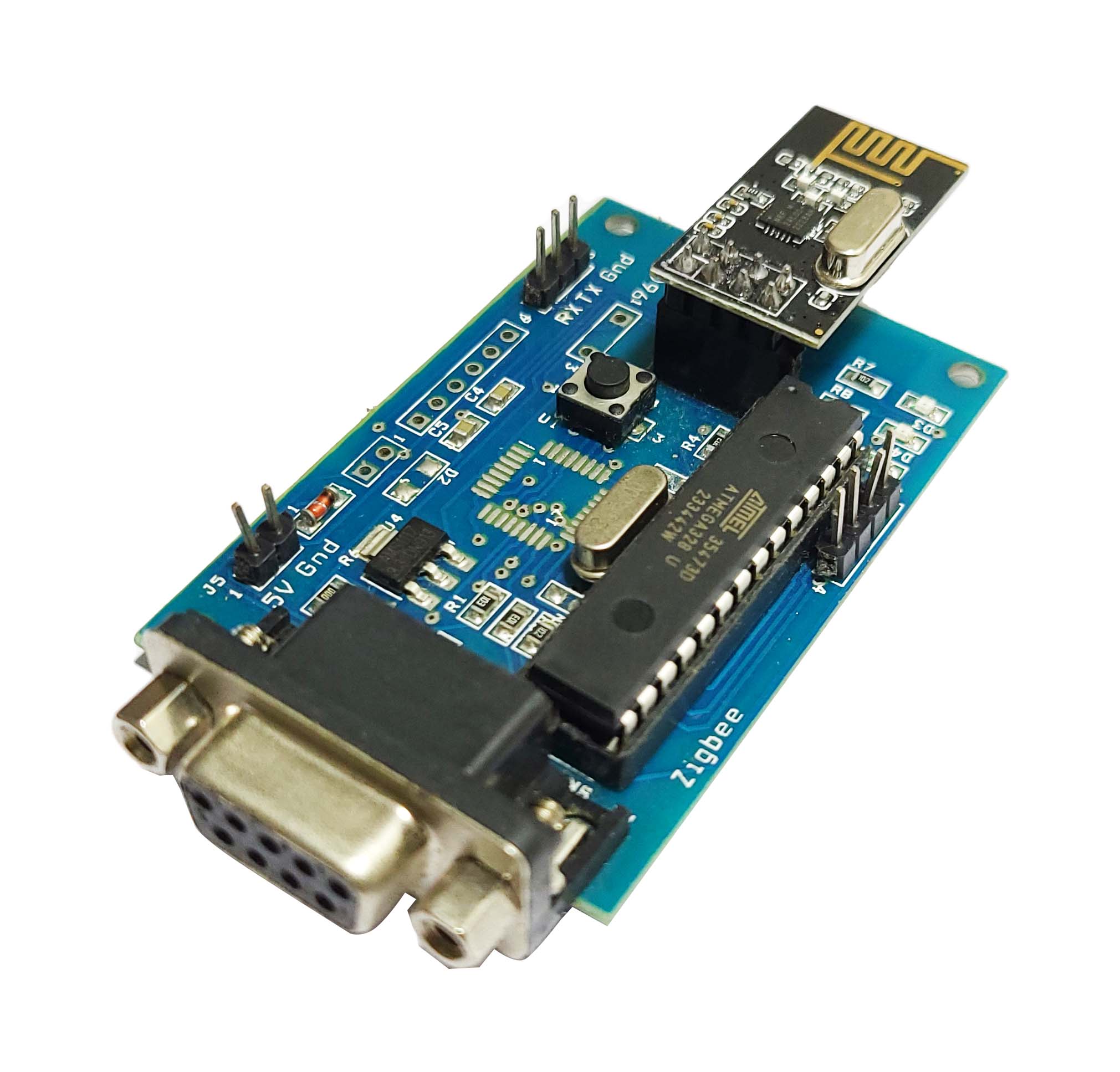

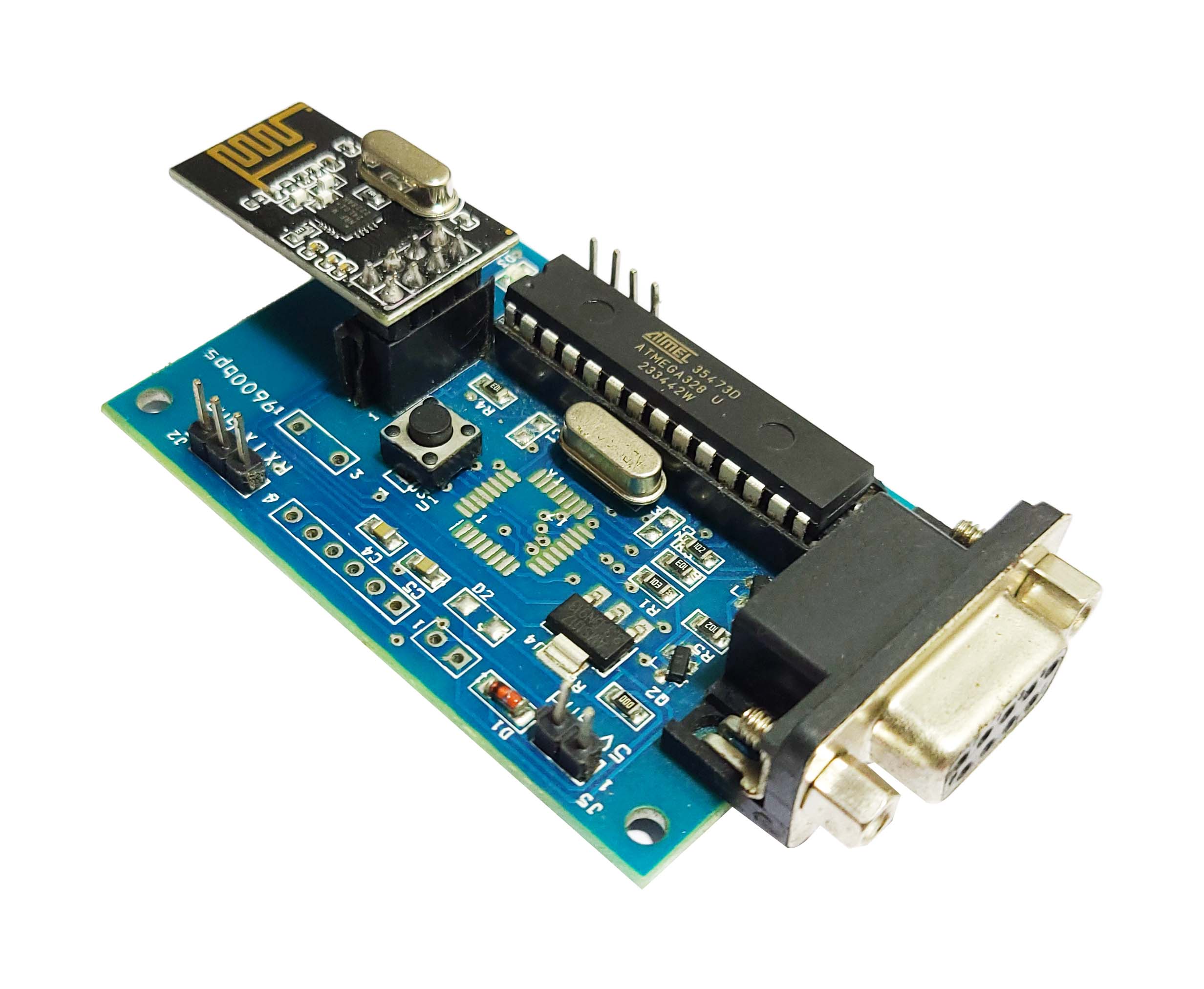

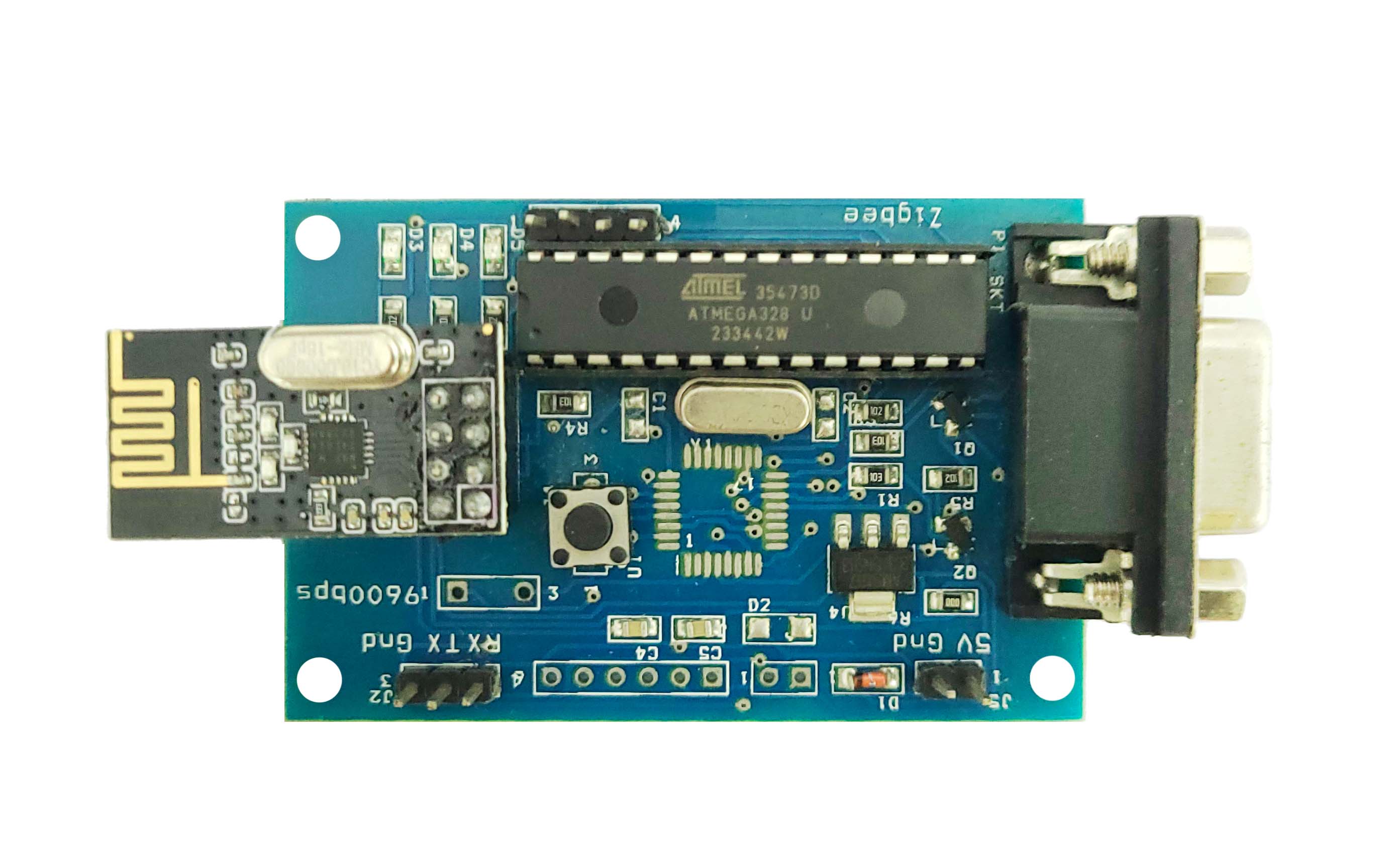

The Zigbee 2.4 GHz Module is a
low-power, short-range wireless communication module that operates on the 2.4
GHz frequency
Description:
The Zigbee 2.4 GHz module is a low-power, wireless communication device designed for short to medium-range networking. It operates on the IEEE 802.15.4 standard and is widely used in IoT applications, home automation, industrial control, and smart energy systems. It enables mesh networking, allowing devices to communicate reliably over extended distances.
Specification:
Frequency: 2.4 GHz ISM band
Communication Protocol: IEEE 802.15.4 (Zigbee)
Data Rate: Up to 250 kbps
Operating Voltage: 2.7V – 3.6V
Current Consumption:
Transmission: ~40 mA
Reception: ~25 mA
Sleep Mode: ~1 µA
Antenna: PCB trace, chip, or external antenna (SMA)
Transmission Range: Up to 100 meters (line-of-sight, extendable in mesh networks)
Interface: UART, SPI, I2C
Network Topology: Mesh, Star, Point-to-Point
Encryption: 128-bit AES security for secure data transmission
Features:
Low power consumption, ideal for battery-operated devices
Supports mesh networking for extended communication range
Reliable and interference-resistant communication in the 2.4 GHz band
Secure data transmission with AES encryption
Simple integration with microcontrollers and IoT platforms
Applications:
Home Automation: Smart lighting, thermostats, security systems
