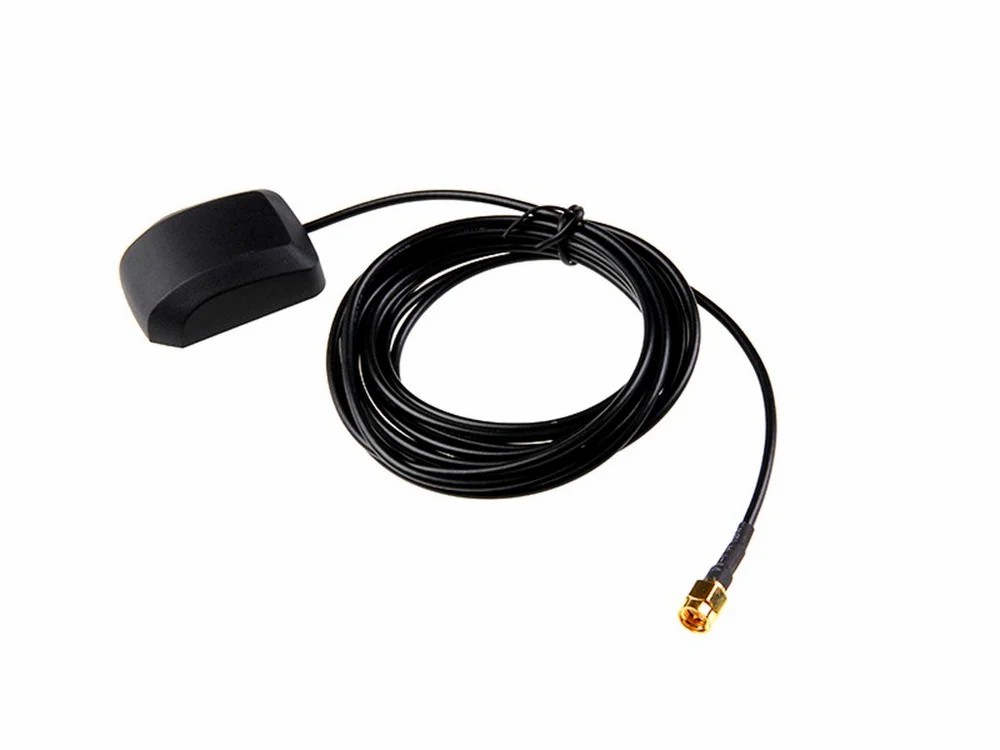

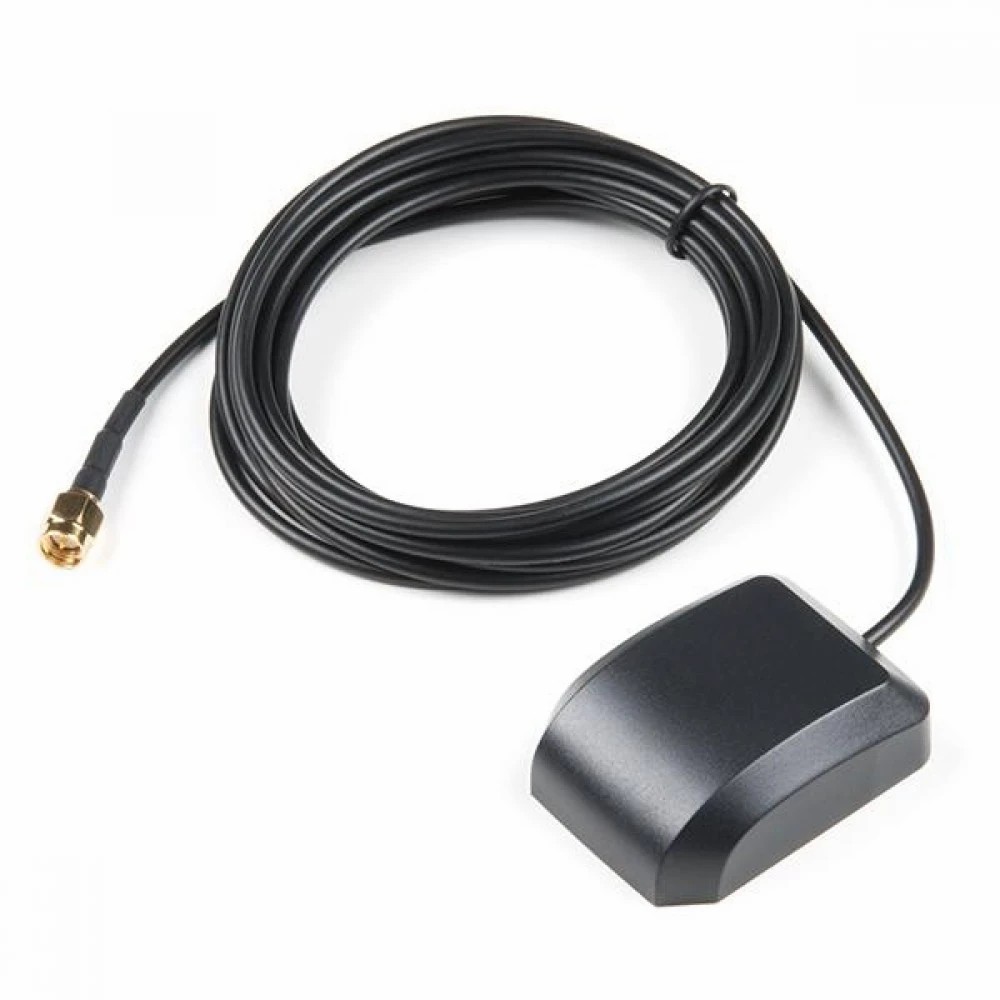

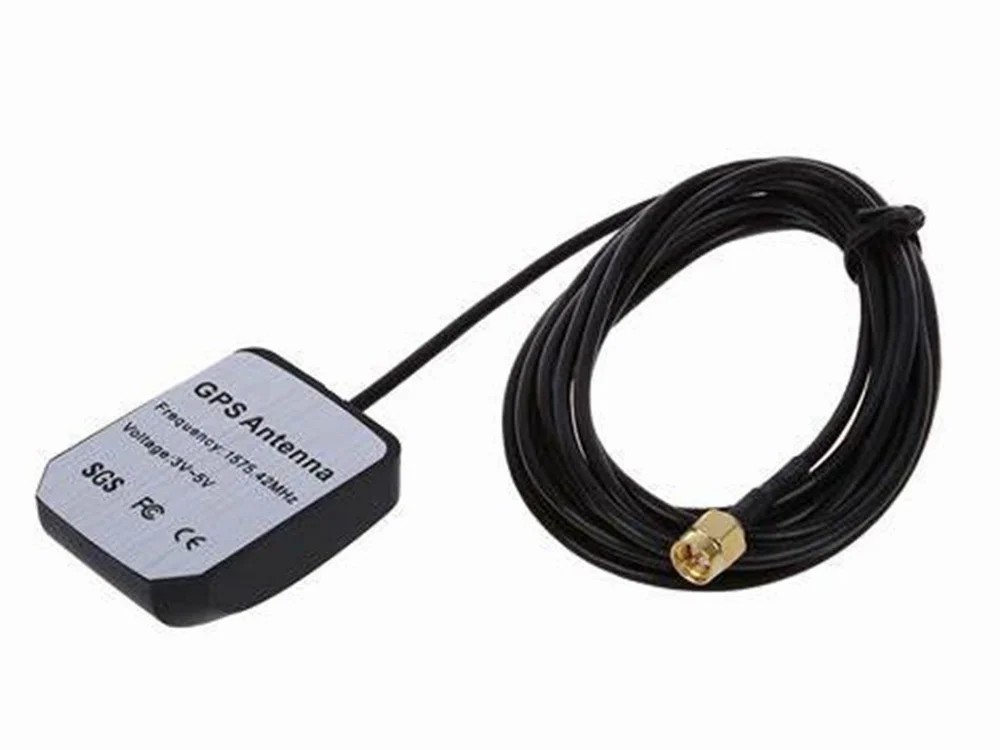

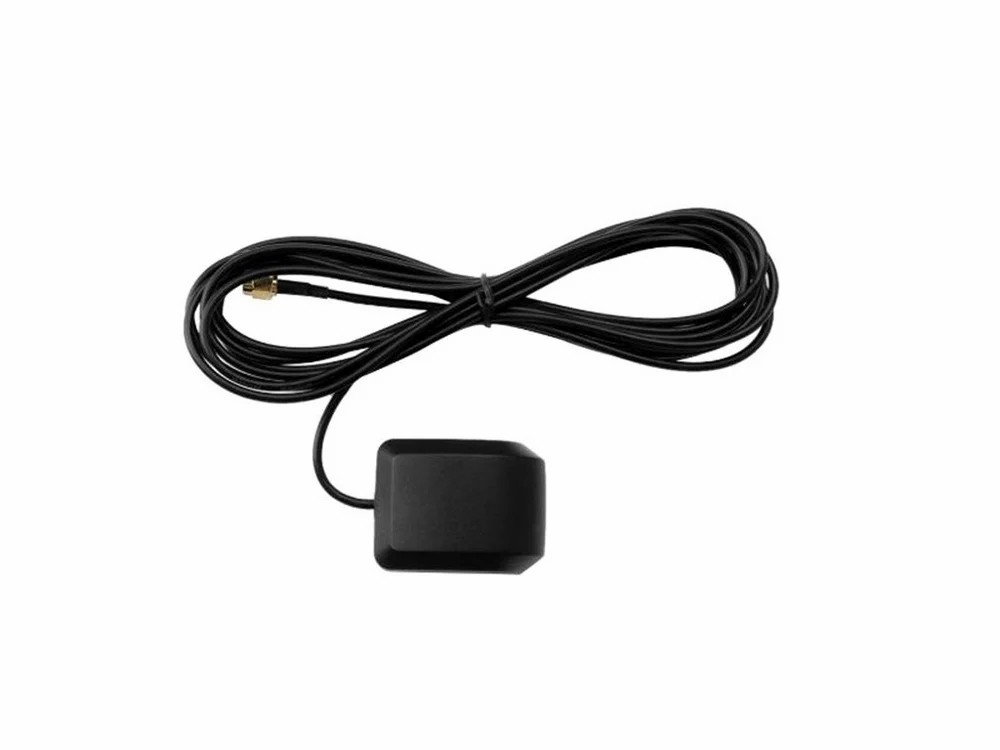

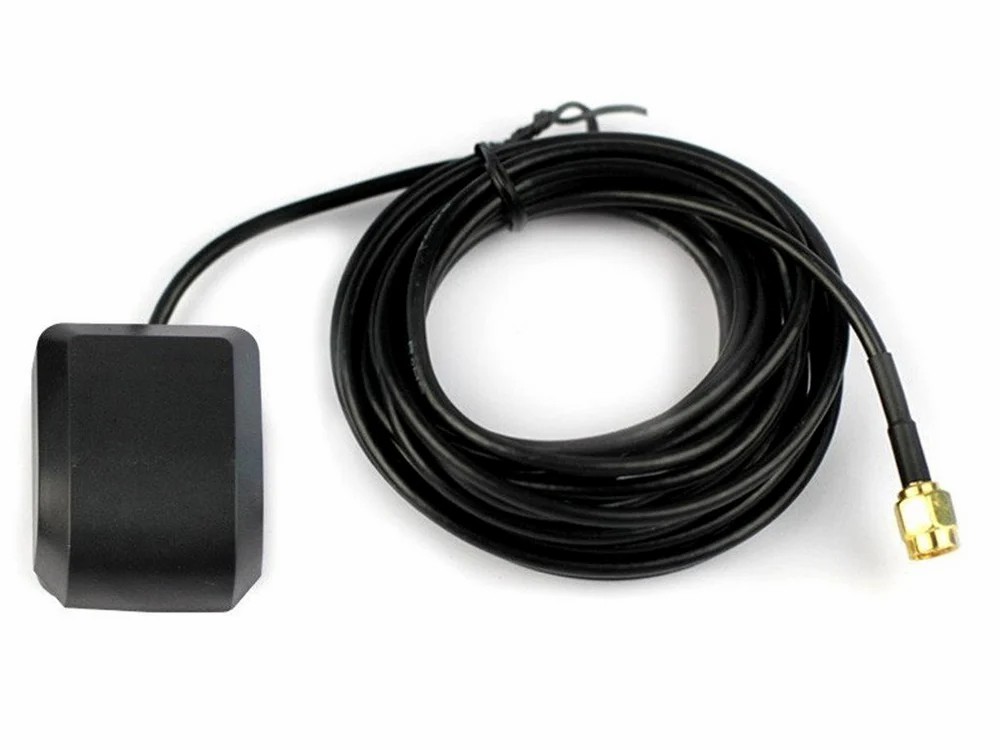

The GPS External Antenna is
designed to enhance GPS signal reception. It is typically used with GPS modules
or receivers to provide better satellite tracking, Ideal for outdoor and mobile
applications, it improves the accuracy and reliability of GPS-based navigation
systems.
Description:
This GPS Antenna is designed
for applications requiring high positioning accuracy. Its compact size allows
it to be used in space-constrained environments. With a 3-meter-long cable,
this antenna enhances GPS signals for indoor projects using Raspberry Pi HATs
or Arduino Shields.
The antenna features a flat
magnetic surface for quick stabilization or can be permanently fixed using
double-sided tape. Its high-gain wide-band patch antenna, combined with an
IP67-rated waterproof and UV-resistant enclosure, ensures reliable performance
even in outdoor environments. A mid-SAW filter configuration eliminates
potential LNA burnout from nearby out-of-band radiated energy bursts caused by
co-located antennas.
The antenna is manufactured to
strict first-tier automotive-quality standards.
Features
High Gain Patch Antenna: Provides reliable
performance on an integral surface.
IP67 Waterproof & UV Resistant: Suitable for
outdoor applications.
LNA Amplifier: Includes a low-noise amplifier for
signal enhancement.
Magnetic Surface: Internal magnet enables quick
placement on metallic surfaces.
Ease of Use: Requires no RF or antenna expertise
for operation.
Specifications
Operating Frequency: 1575.42 MHz
LNA Gain (without cable): 27 dB
Noise Figure: 1.5 dB (Typical)
Operating Voltage Range: 3 - 7 VDC
Operating Current: 15 mA
Maximum GSM Working Frequency: 824–894 MHz /
1710–1880 MHz
VSWR: 2:1
Impedance: 50 Ohms
Peak Gain: 2 dBi at 900 MHz, 2 dBi at 1800 MHz
Polarization: Omni-directional, linear
polarization
Protection: IP67-rated waterproof
Connector: SMA-Male
Cable Length: 3 meters
Cable Thickness: 2.6 mm
Color: Black
Weight: 60 grams
Applications
Enhancing GPS signals in indoor environments.
Projects using Raspberry Pi HAT or Arduino
Shields.
