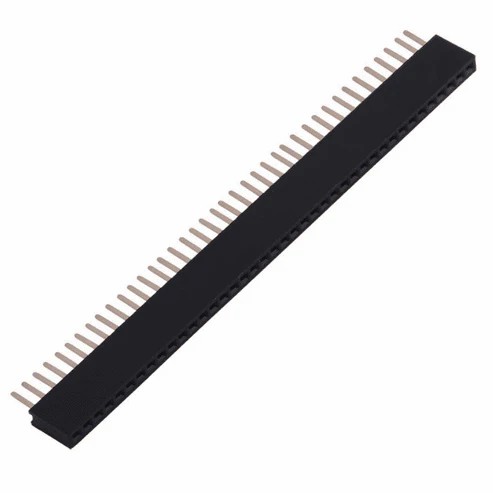

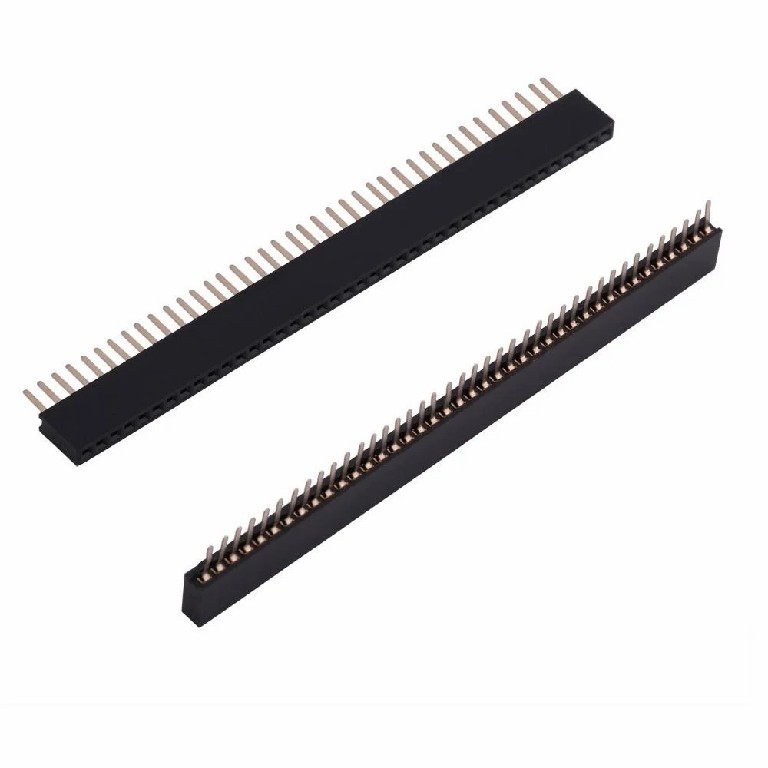

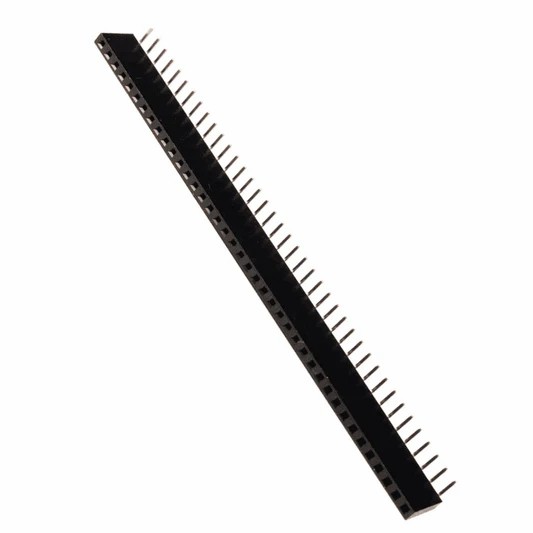

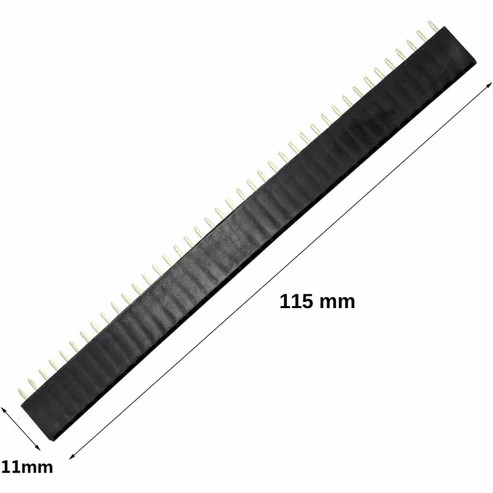

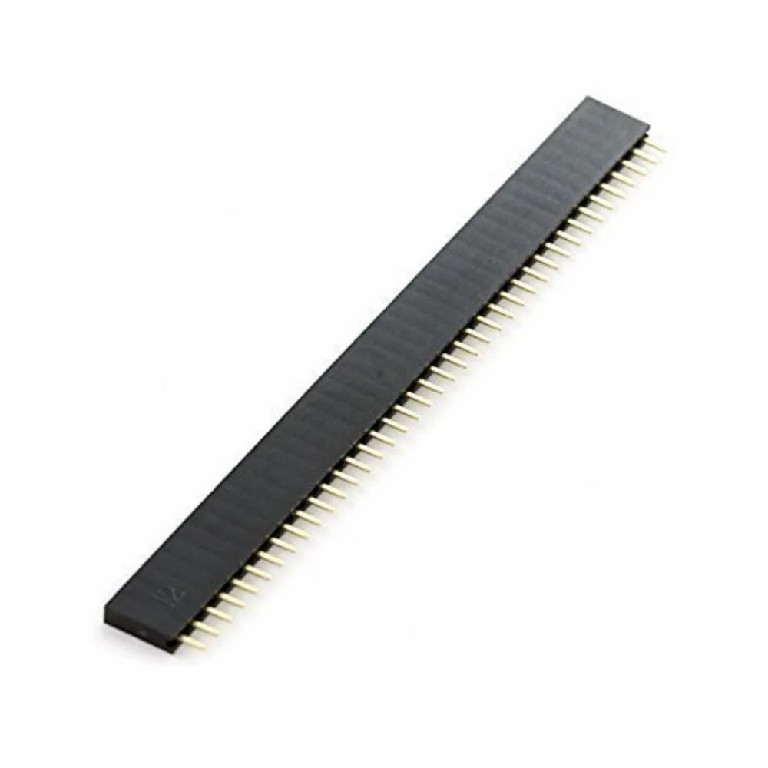

Berg Stick Female: A space-efficient female connector designed for wire-to-board applications. Ideal for making secure connections in compact devices and systems, such as in consumer electronics, robotics, and embedded projects.
The Berg stick female connector is a type of electrical connector commonly used in electronics and electrical systems. Here’s a detailed overview of what it is, its characteristics, and typical applications:
Overview
Type: Female connector
Design: Typically features a series of pins or sockets arranged in a single or multi-row configuration.
Mounting: Often used in PCB (Printed Circuit Board) applications or as a connection point for wires.
Insulation: The connector is usually encased in a plastic housing to provide insulation and protection against short circuits.
Features
Compact Size: Berg connectors are designed to save space, making them ideal for applications where size is a constraint.
Variety of Configurations: Available in different pin counts and arrangements (e.g., 2x2, 2x4, 1x6).
Durability: Designed for reliable connections, they are often made from durable materials that can withstand frequent connect/disconnect cycles.
Easy to Use: The connectors typically allow for simple insertion and removal of the mating male connector.
Specifications
Current Rating: Varies by model; usually ranges from 1A to 5A per pin.
Voltage Rating: Commonly rated for voltages up to 250V.
Operating Temperature: Typically between -40°C to +105°C.
Material: Contacts are often made of copper or brass with a tin or gold plating for better conductivity and resistance to corrosion.
Applications
Consumer Electronics: Used in devices like computers, printers, and audio equipment.
Telecommunications: Found in network equipment and telecommunications hardware.
Industrial Equipment: Used in machinery and control systems where reliable electrical connections are critical.
Automotive: Used in wiring harnesses and control modules
