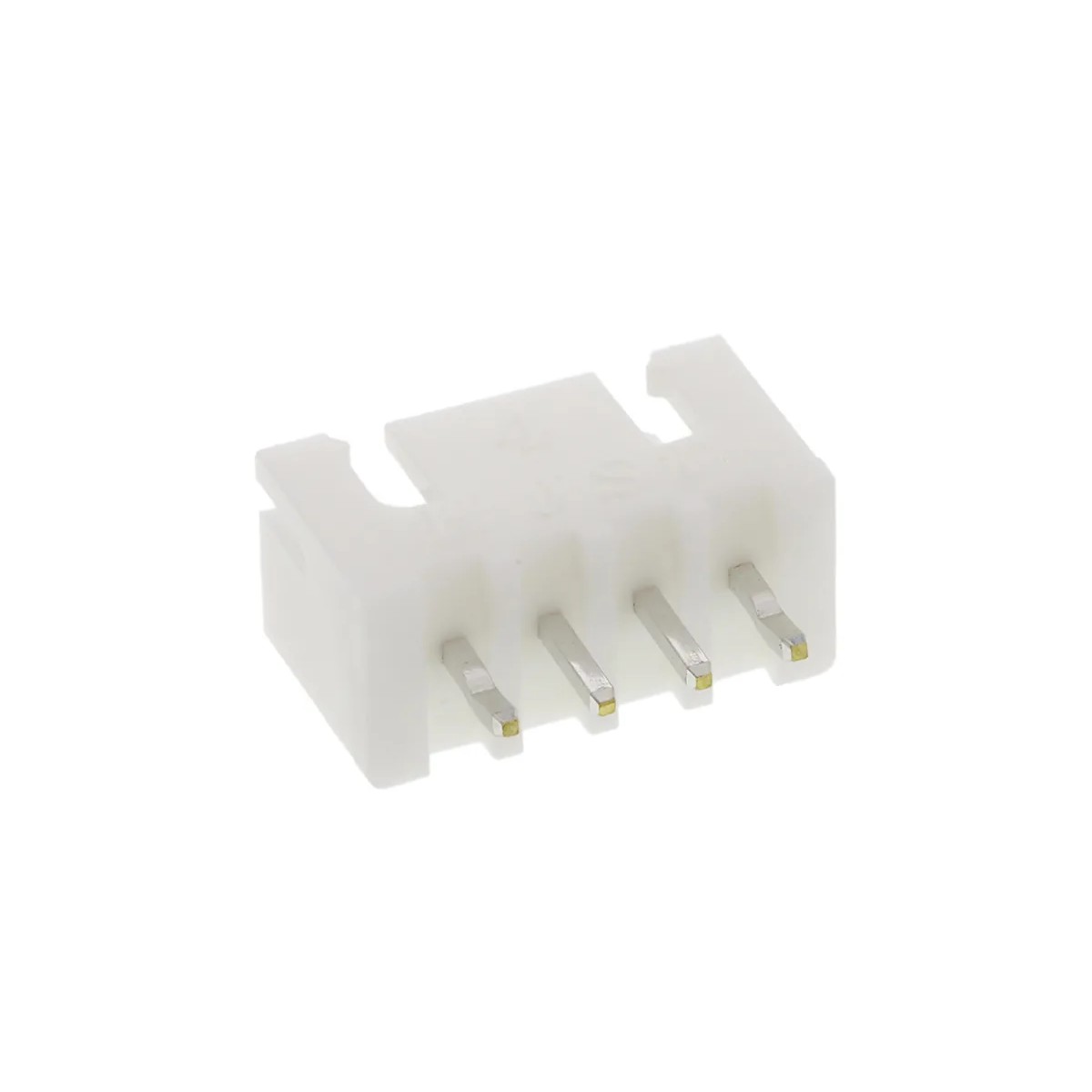

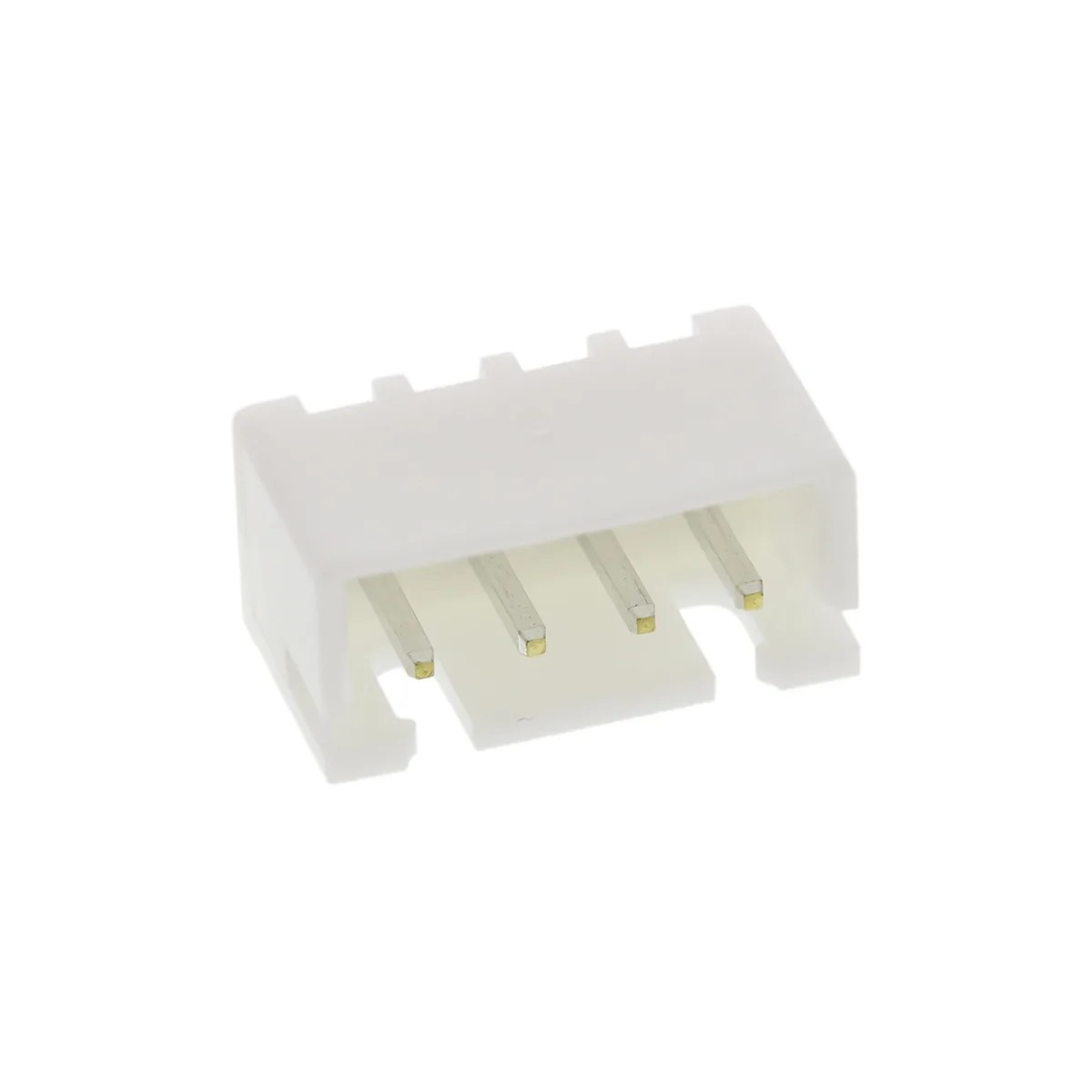

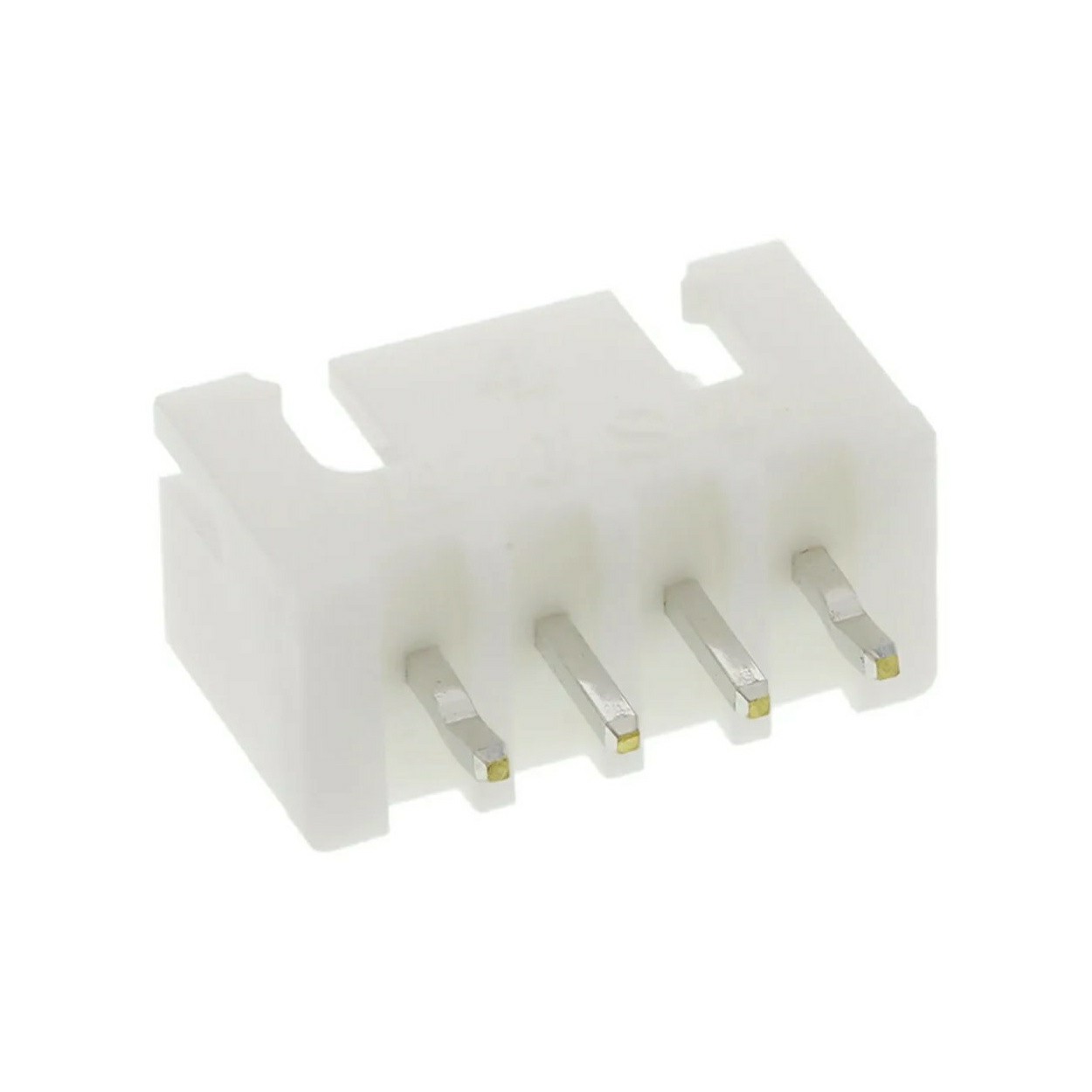

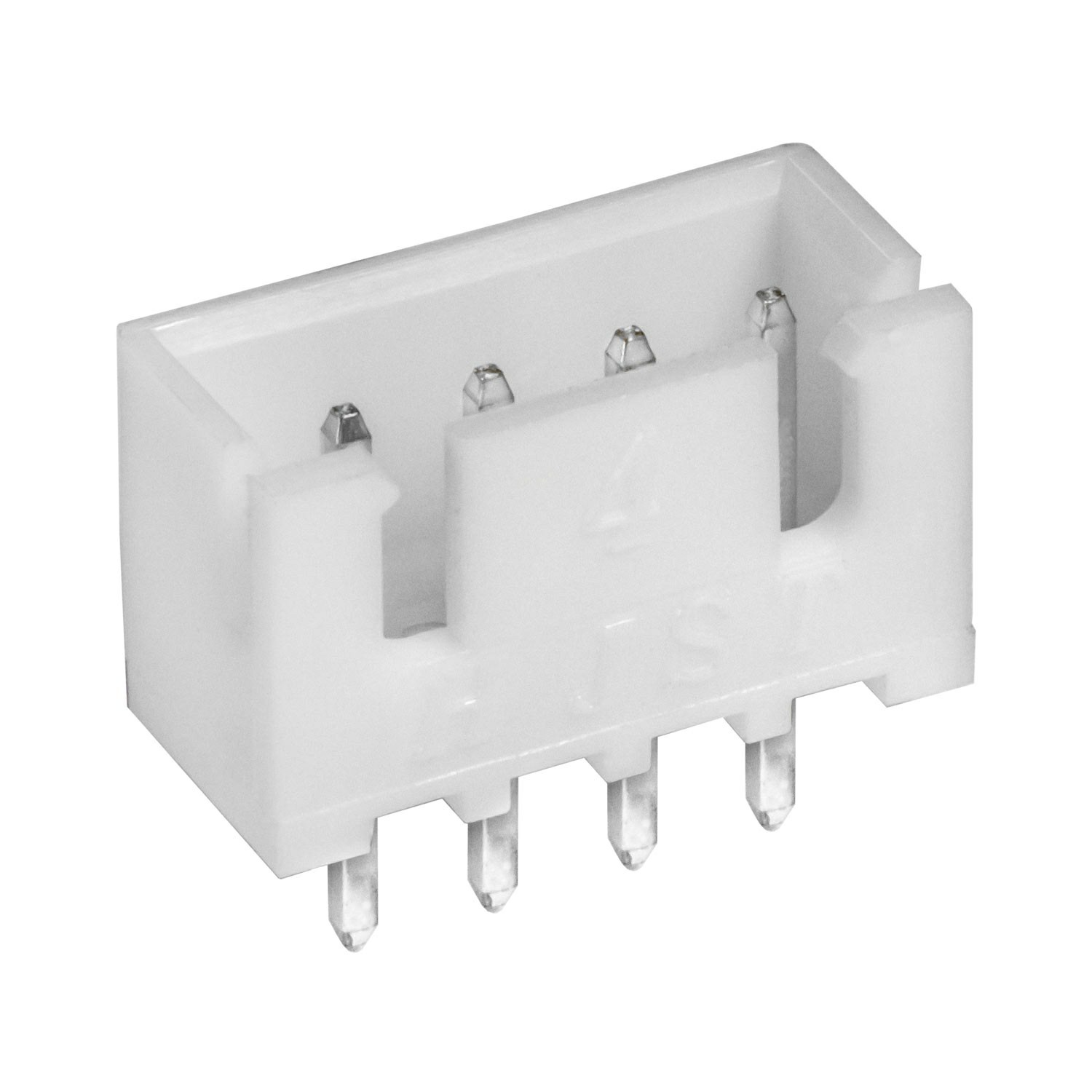

4-Pin RMC Connector Male
The 4-Pin RMC (Reverse Mount
Connector) Male is a robust and versatile connector, designed for seamless
electrical connections in systems requiring four-line configurations. It is
widely used in embedded systems, industrial automation, consumer electronics,
and robotics due to its compact design, durability, and reliable performance.
Description
The 4-Pin RMC Male Connector provides
a secure and stable connection with its corresponding female connector,
ensuring efficient power, signal, or data transmission. Its reverse mount
design guarantees a snug fit, minimizing the risk of accidental disconnections.
Manufactured with high-quality materials, the connector is resistant to wear,
corrosion, and environmental stress, making it suitable for both indoor and
outdoor applications.
This connector's compact form factor
and ease of installation make it ideal for projects with space constraints or
requiring frequent assembly and disassembly.
Specifications
- Pin Count:
4
- Connector Type:
Male, Reverse Mount
- Material:
- Pins:
High-quality copper or brass with tin or gold plating for enhanced
conductivity and corrosion resistance.
- Housing:
Durable plastic (PVC/ABS) for insulation and structural support.
- Current Rating:
Up to 3A per pin (depending on wire gauge and application).
- Voltage Rating:
Up to 300V.
- Operating Temperature:
-20°C to +80°C.
- Dimensions:
Compact and lightweight, typically ~15-30 mm in length.
- Mounting Style:
Reverse mount, designed to mate with a 4-pin female connector.
- Compatibility:
Fits standard 4-pin RMC female connectors and cables.
Key
Features
- Compact Design:
Suitable for space-constrained applications.
- Durable Construction:
Engineered with high-quality materials for long-lasting performance.
- Secure Fit:
Reverse mount design ensures stable and reliable connections.
- Versatile Applications: Compatible with various power, signal, or data
transmission needs.
- Ease of Installation:
Plug-and-play functionality for quick integration.
Applications
- Embedded Systems:
Connecting sensors, actuators, and peripherals requiring four lines.
- Industrial Automation:
Used in control systems, machinery, and equipment interfaces.
- Robotics:
Wiring motors, sensors, and other components in robotic systems.
- Consumer Electronics:
Ideal for devices requiring multiple connections like displays or audio
systems.
- DIY and Prototyping:
Perfect for building and testing projects needing reliable 4-pin
connections.
The 4-Pin RMC Male Connector
combines durability, reliability, and ease of use, making it an indispensable
component for a wide array of electronic and industrial projects. Its
versatility and robust performance ensure efficient connectivity for
professionals and hobbyists alike.
