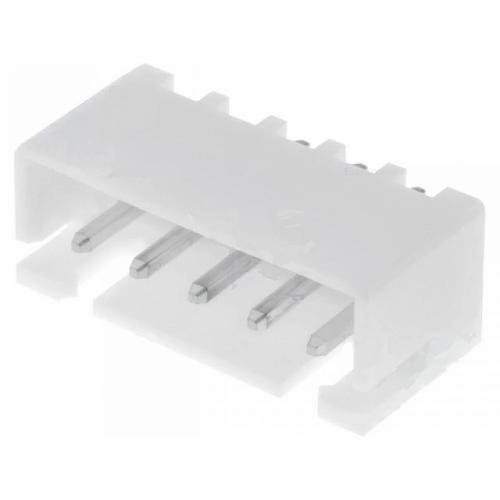

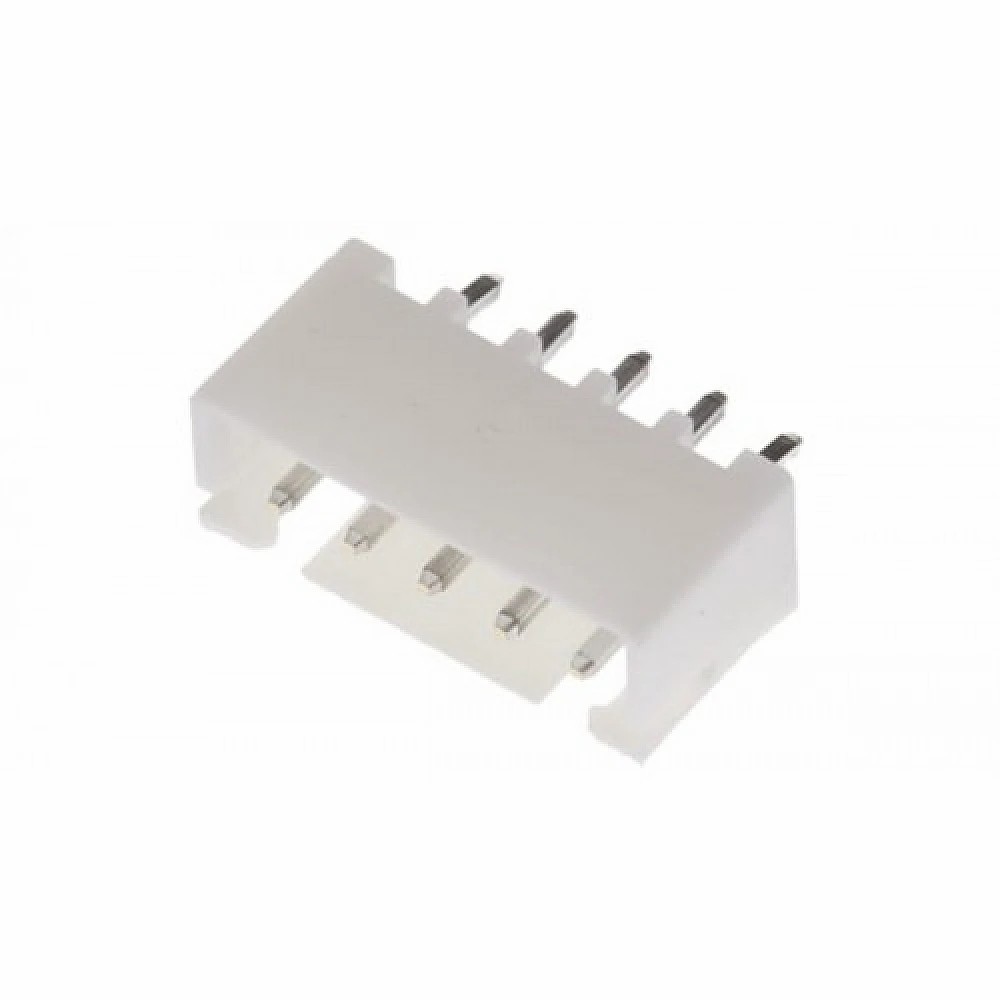

5-Pin RMC Connector Male
The 5-Pin RMC (Reverse Mount
Connector) Male is a high-quality, reliable connector tailored for
applications requiring five-line configurations. Its durable design, compact
size, and secure connectivity make it a preferred choice for embedded systems,
industrial automation, robotics, and consumer electronics.
Description
The 5-Pin RMC Male Connector
ensures stable and efficient power, signal, or data transmission with its
robust reverse mount design. Engineered for secure mating with its
corresponding female connector, it minimizes disconnection risks while
providing consistent performance. Constructed from premium materials, the
connector resists wear, corrosion, and environmental stress, ensuring
durability in demanding conditions.
Its compact form factor makes it
ideal for applications with limited space, and its simple plug-and-play
functionality offers ease of use during assembly and maintenance.
Specifications
- Pin Count:
5
- Connector Type:
Male, Reverse Mount
- Material:
- Pins:
High-grade copper or brass with tin or gold plating for enhanced
conductivity and corrosion resistance.
- Housing:
Durable plastic (PVC/ABS) for excellent insulation and structural
integrity.
- Current Rating:
Up to 3A per pin (depending on application and wire gauge).
- Voltage Rating:
Up to 300V.
- Operating Temperature:
-20°C to +80°C.
- Dimensions:
Compact and lightweight, typically ~20-35 mm in length.
- Mounting Style:
Reverse mount, designed to pair with a 5-pin female connector.
- Compatibility:
Compatible with standard 5-pin RMC female connectors and cables.
Key
Features
- Compact and Lightweight: Perfect for applications with space constraints.
- Durable and Long-Lasting: Premium materials ensure excellent performance in
various conditions.
- Secure Connection:
Reverse mount design provides a stable and reliable fit.
- Versatile Functionality: Suitable for power, signal, or data transmission.
- Ease of Use:
Simple installation with plug-and-play capability.
Applications
- Embedded Systems:
Connecting microcontrollers to peripherals with five-line interfaces.
- Industrial Automation:
Wiring sensors, actuators, and control systems.
- Robotics:
Ideal for multi-signal connections in robotic systems.
- Consumer Electronics:
Used in devices requiring five-pin configurations, such as displays and
advanced sensors.
- DIY and Prototyping:
Great for developing and testing electronic projects.
The 5-Pin RMC Male Connector
is a versatile and robust solution for achieving reliable and efficient
connections in a wide range of applications. Its high performance, compact
design, and ease of installation make it an essential tool for both
professionals and hobbyists.
