An adjustable voltage regulator providing a
stable output voltage in the range of 1.25V to 37V. Suitable for custom voltage
power supplies.
Description

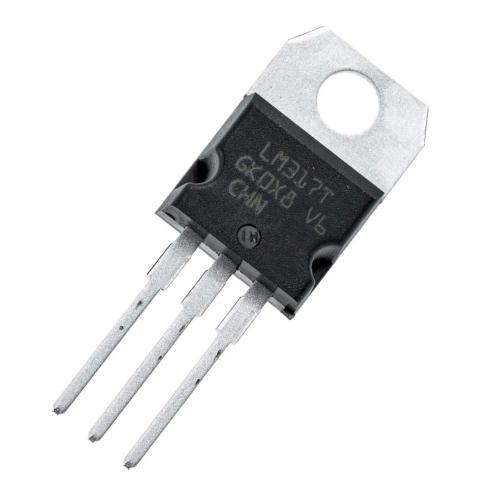

The LM317 is an
adjustable three-terminal positive voltage regulator capable of delivering up
to 1.5A of output current over a voltage range of 1.25V to 37V. It requires
only two external resistors to set the desired output voltage. The device
provides excellent line and load regulation, with a typical line regulation of
0.01% and load regulation of 0.1%. Additionally, it features built-in overload
protection, thermal shutdown, and short-circuit current limiting, ensuring
reliable operation even if the ADJUST terminal is disconnected.
Features
Wide Output Voltage Range: Adjustable from
1.25V to 37V
High Output Current: Can supply more than 1.5A
Excellent Line and Load Regulation:
Typical Line Regulation: 0.01%
Typical Load Regulation: 0.1%
Overload and Thermal Protection
Short-Circuit Current Limiting
Output Safe-Area Compensation
Minimal External Components Required
Specifications
Input Voltage Range: 3V to 40V
Output Voltage Range: 1.25V to 37V
Maximum Output Current: 1.5A
Voltage Regulation:
Line Regulation: 0.01%/V (Typical)
Load Regulation: 0.1% (Typical)
Dropout Voltage: Typically 3V
Thermal Overload Protection: Yes
Short-Circuit Current Limit: Yes
Package Type: TO-220, SOT-223, TO-3
Applications
Adjustable Power Supply
Used in variable power supplies for lab
and industrial applications.
Battery Chargers
Regulates voltage in battery charging
circuits for lead-acid and lithium batteries.
Solar Power Regulation
Converts and stabilizes voltage in solar
panels.
Embedded Systems
Provides stable power to microcontrollers
and sensors.
Operational Amplifier Circuits
Supplies a regulated voltage for op-amp
applications.
Automotive Electronics
Used in car battery voltage regulators
and audio amplifiers.
LED Drivers
Powers LED circuits with adjustable
brightness.
RF and Communication Circuits
Provides a stable voltage in radio
frequency applications.
