DC-DC-BOOSTER-XL4015

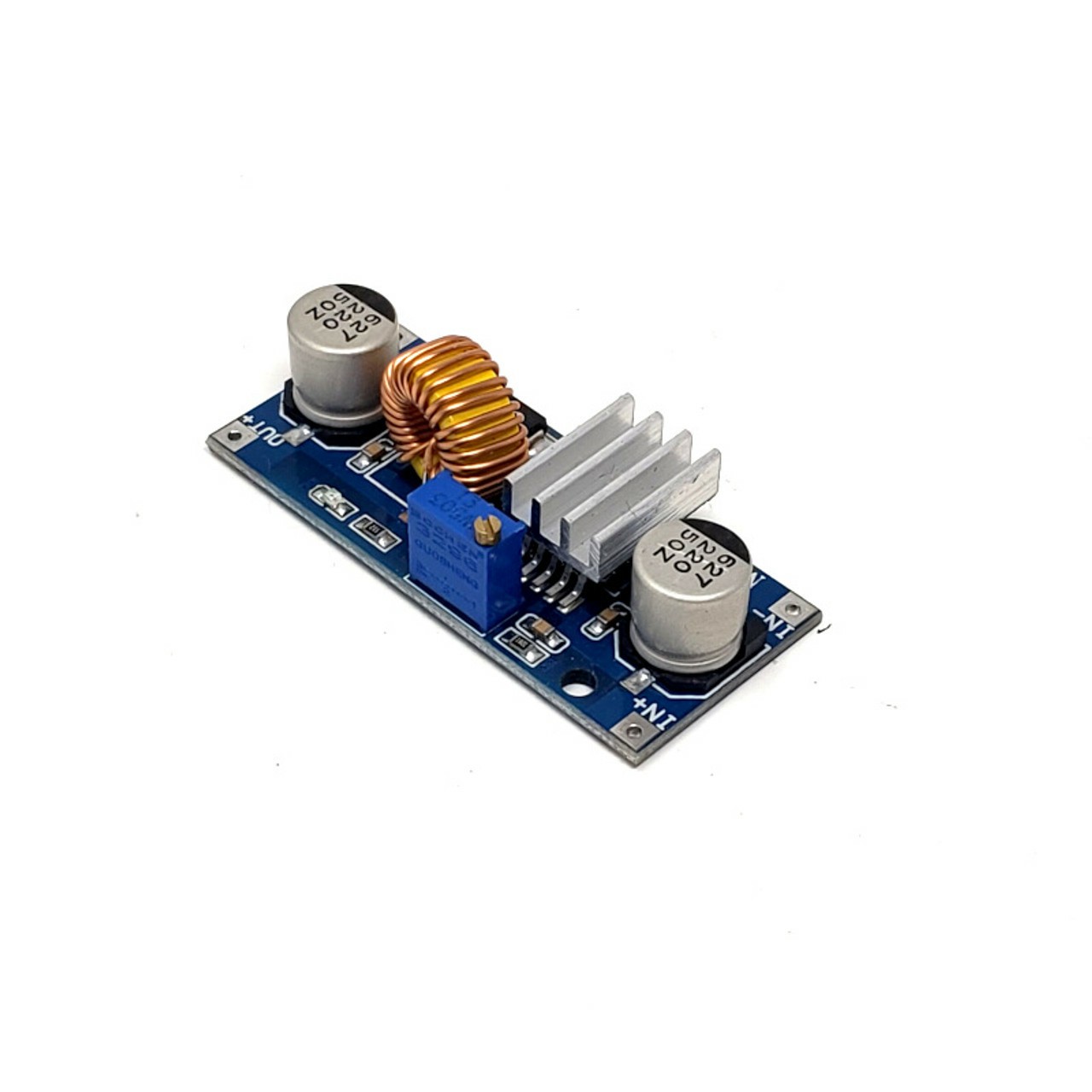

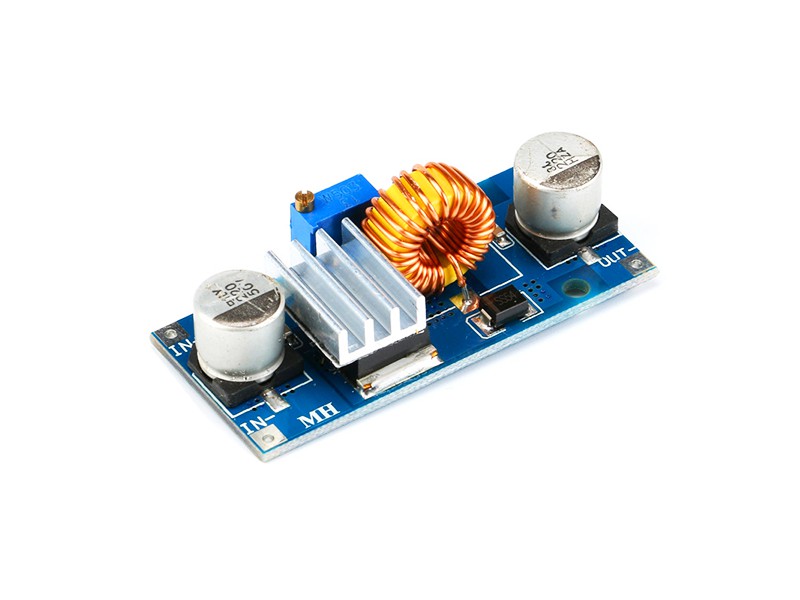

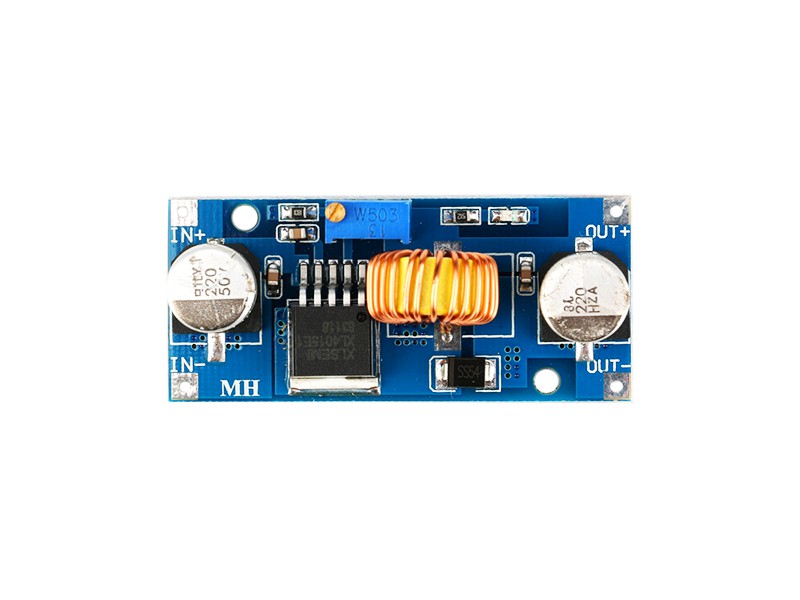

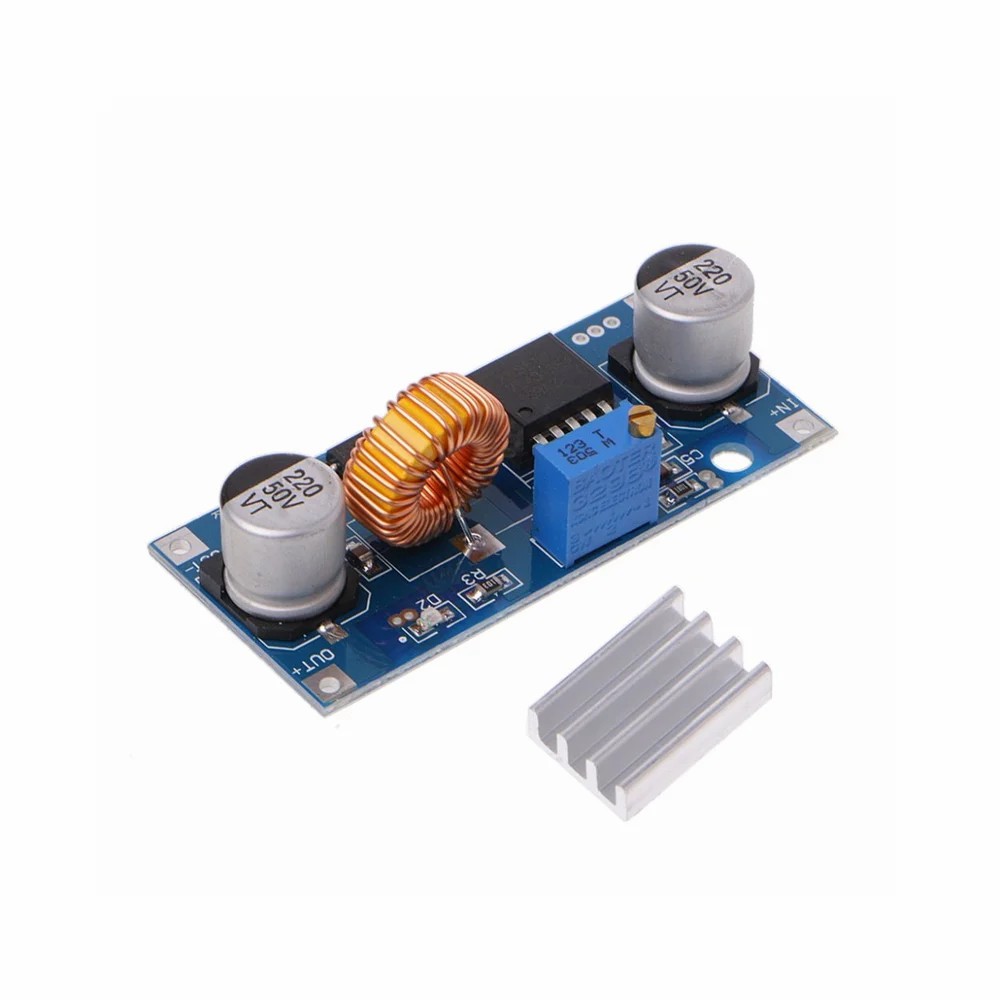

The XL4015 5A CC/CV Adjustable Step
Down DC-DC Buck Converter Module is a versatile linear module with both
constant voltage (CV) and constant current (CC) functions, offering reliable
performance and low ripple (as low as 50mV). This makes it ideal for use as a
charger, where stable power delivery is essential. Built around a quality chip,
it operates at a fixed frequency of 300 KHz, delivering up to a 5A adjustable
load with high efficiency, low ripple, and excellent line/load regulation. This
module includes overcurrent protection, making it highly reliable in various
applications.
The XL4015 is suitable in situations
where the input voltage exceeds the output voltage, such as in power
transformers, DIY adjustable regulated power supplies, and power solutions for
LCD monitors, portable instruments, telecom/networking equipment, vehicle
notebook power supplies, and industrial equipment. Typical applications include
12V to 3.3V, 12V to 5V, 24V to 5V, 24V to 12V, and 36V to 24V step-down
conversions.
This module allows for adjustable
output voltage and current, making it useful as a dedicated charger for lithium
batteries (Li-Ion, LiPo) with CC CV functionality.
Features:
- CC and CV adjustability
- Low ripple output
- Constant current charging for battery protection
- Built-in current limit and output short protection
Specifications:
- Input Voltage:
5V-32V
- Output Voltage:
0.8V-30V
- Output Current:
Adjustable up to 5A
- Output Power:
75W
- Voltage Regulation:
±2.5%
- Load Regulation:
±0.5%
- Switching Frequency:
300 KHz
- Conversion Efficiency: Up to 95%
- Dimensions:
51mm (Length) x 26.3mm (Width) x 14mm (Height)
- Weight:
18g
