XL 6009 Modules: A high-efficiency step-up (boost) voltage regulator module based on the XL6009 chip, designed to convert lower input voltages to a stable higher output. Ideal for applications that require voltage amplification, such as powering circuits with higher voltage demands from a lower power source.
DC-DC
BOOSTER XL6009

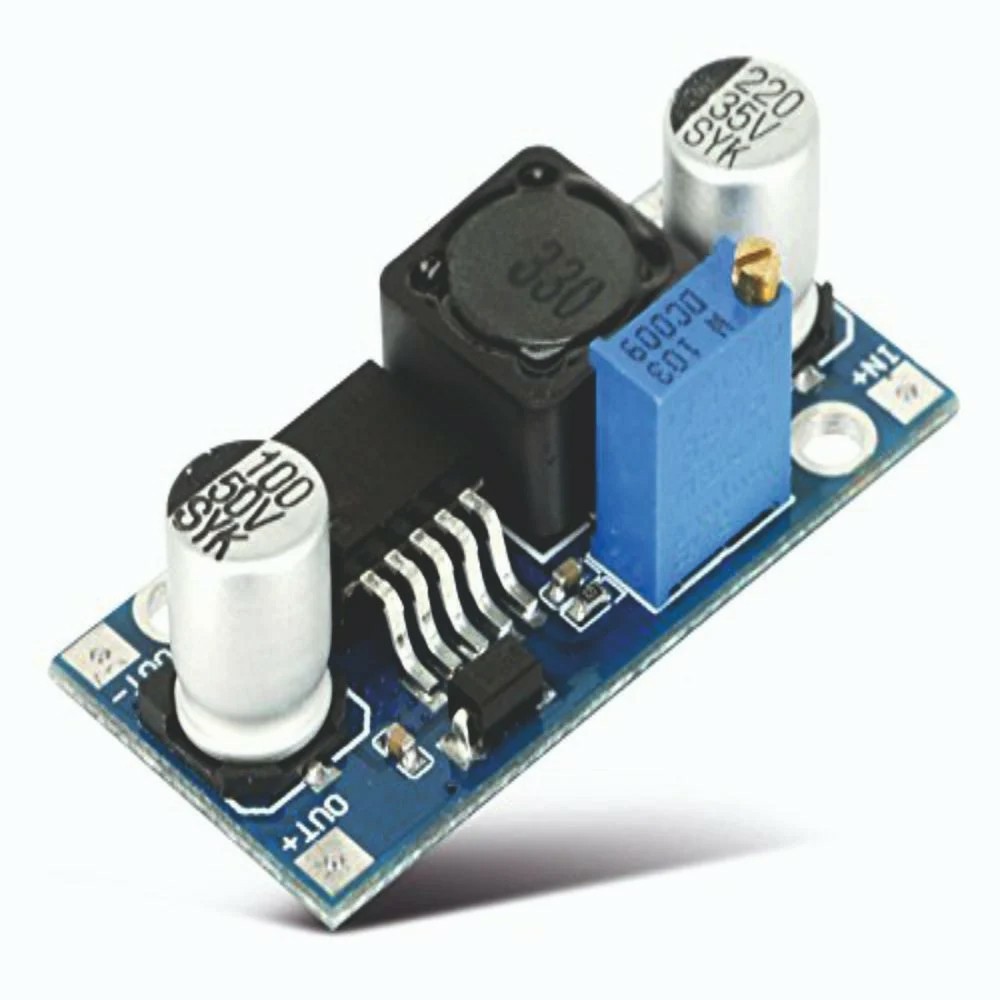

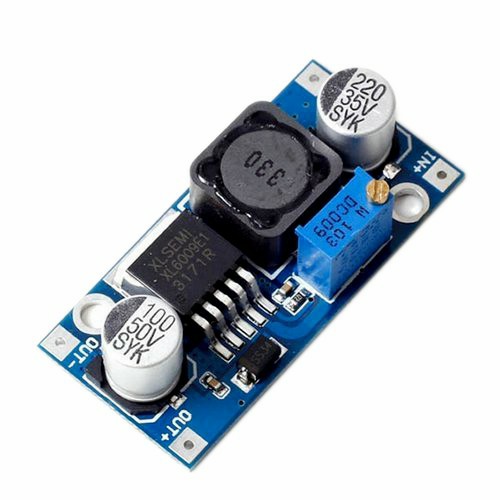

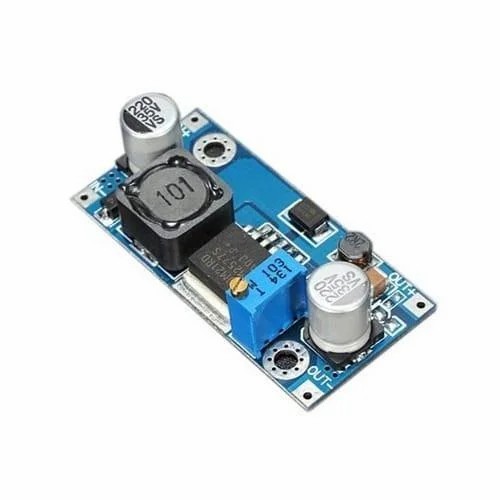

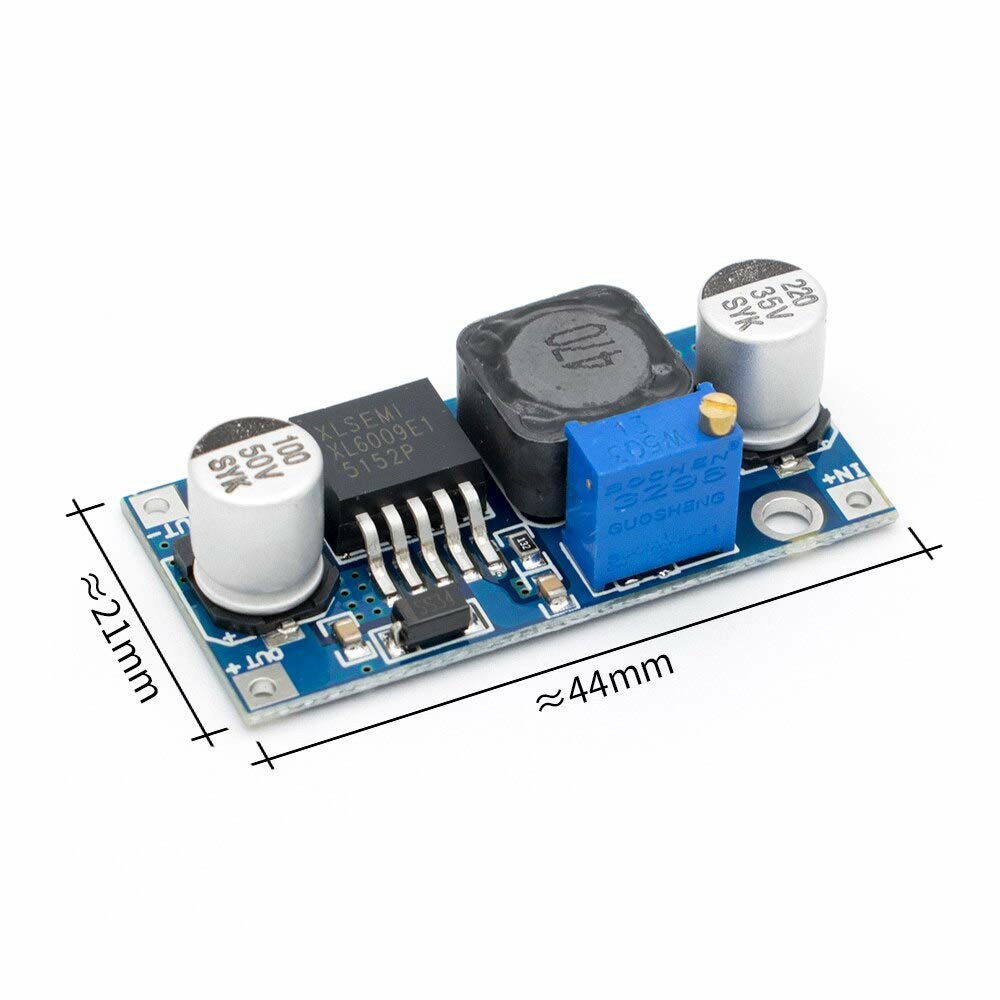

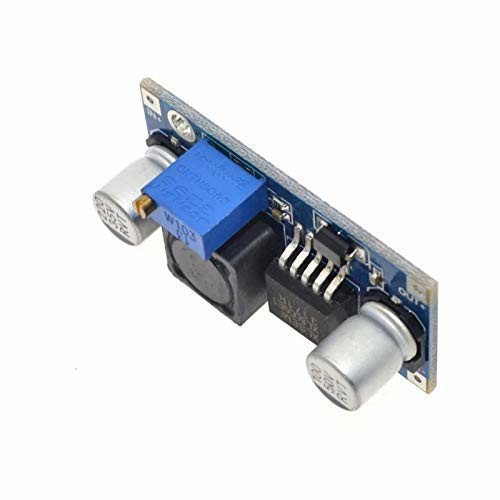

Product Description:
The XL6009 4A is a high-performance
step-up switching (BOOST) module featuring advanced XL6009E1 core technology,
which surpasses the previous generation LM2577 in efficiency and performance.
This second-generation high-frequency switching technology provides a more
cost-effective solution with superior performance, making it a replacement for
LM2577-based modules.
Input Voltage Range:
3V to 32V, with an optimal range of 5V to 32V
Output Voltage Range:
5V to 35V
This module is designed for various
applications requiring a reliable and efficient boost in voltage while
maintaining stability and protection features.
About this Item:
Ultra-Wide Input Voltage: 3V to 32V, with an optimal working range of 5V to 32V
