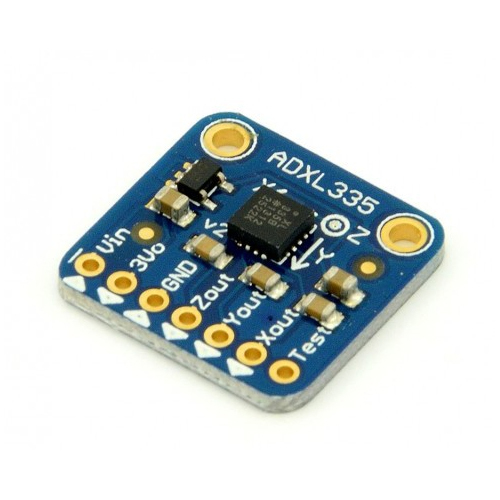

ADXL335
The ADXL335 is a small, low-power, 3-axis accelerometer that is widely used for detecting tilt, motion, and acceleration in various embedded applications. Unlike the MPU6050, which includes both an accelerometer and gyroscope, the ADXL335 is purely an accelerometer, making it simpler and often more suitable for low-power and basic motion-sensing applications.
Key Specifications of ADXL335:
General Specifications:
- Sensor Type: 3-axis accelerometer
- Output: Analog (continuous voltage output proportional to acceleration)
- Measurement Range: ±3g for each axis (X, Y, Z)
Accelerometer Specifications:
- Sensitivity:
- X and Y axes: 300 mV/g (typical)
- Z axis: 270 mV/g (typical)
- Zero g Bias Level (Voltage at 0g):
- 1.5V (nominal) for all axes
- Bandwidth:
- X and Y axes: 1600 Hz
- Z axis: 550 Hz
- Noise Level:
- 150 µg/√Hz for X and Y axes
- 300 µg/√Hz for Z axis
Power Specifications:
- Supply Voltage (VDD): 1.8V to 3.6V
- Typical Current Consumption: 350 µA
- Sleep Mode Current: 0.1 µA (typical)
Interface:
- Analog Output: Each axis (X, Y, Z) provides an analog voltage output proportional to the measured acceleration. The output can be directly connected to an ADC (Analog-to-Digital Converter) for digital processing by a microcontroller.
Physical Characteristics:
- Package Type: 16-pin LFCSP (Lead Frame Chip Scale Package)
- Dimensions: 4mm × 4mm × 1.45mm
Operating Conditions:
- Operating Temperature: -40°C to +85°C
Features:
1. 3-Axis Acceleration Sensing: Measures acceleration in X, Y, and Z directions, allowing for orientation and motion tracking.
2. Small and Low Power: Ideal for battery-powered devices due to its low current consumption and compact size.
3. High Bandwidth: Capable of measuring dynamic acceleration resulting from motion, shock, or vibration.
4. Analog Output: The sensor provides analog voltage outputs, which are simple to interface with many microcontrollers that have ADC channels.
5. No Calibration Required: Factory-calibrated for typical use in most applications.
Applications:
- Tilt Sensing:
- Vibration Monitoring:
- Motion Detection:
- Shock Detection:
- Gaming Controllers:
