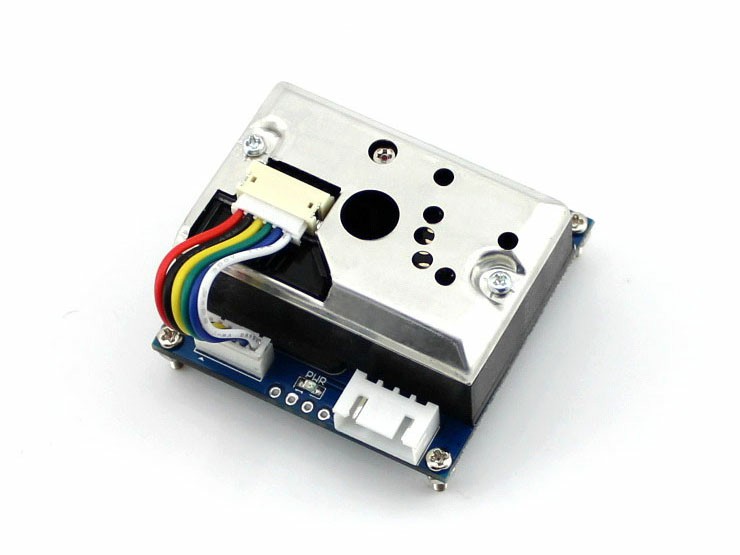

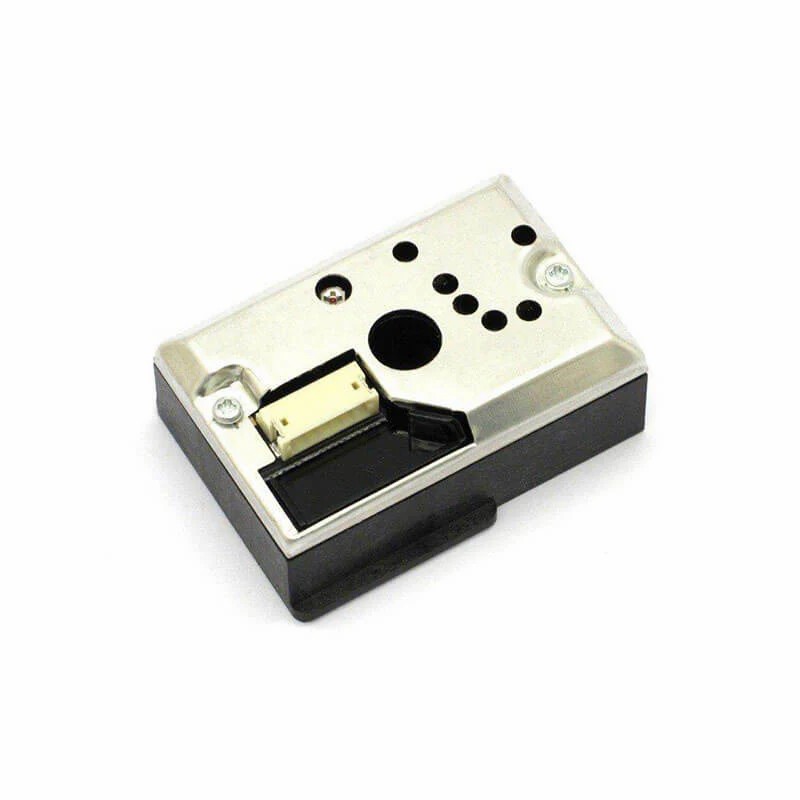

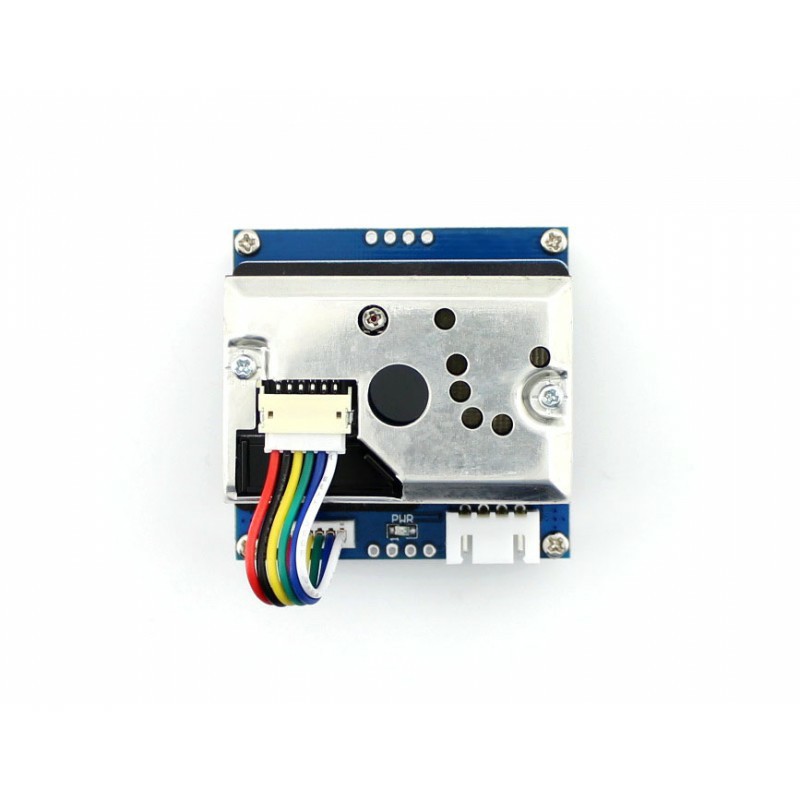

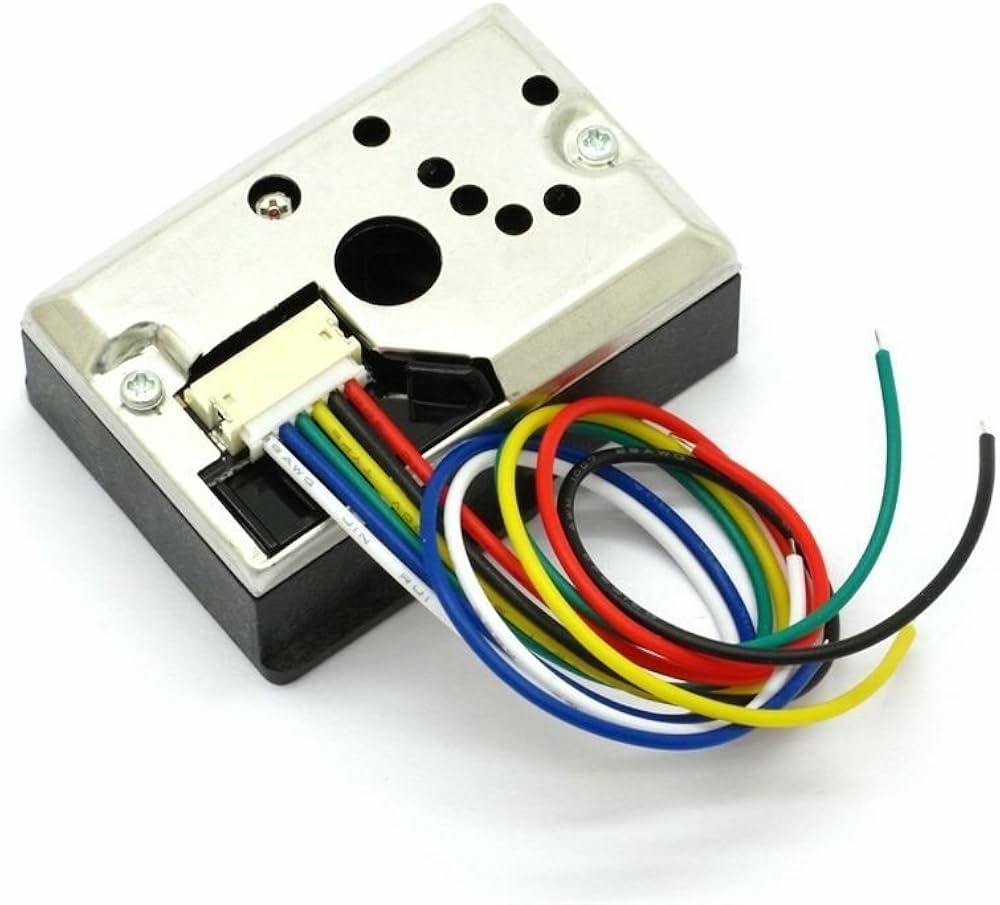

DUST SENSOR
A dust sensor is a device designed to detect and measure the concentration of dust particles in the air. These sensors are commonly used in environmental monitoring, indoor air quality assessment, and industrial applications to ensure clean air and to monitor pollution levels. They help in assessing air quality, triggering air purifiers, and providing data for health and safety regulations.
Specifications
Sensitivity : 0.5V/(100μg/m3)
Measurement range : 500μg/m3
Power : 2.5V~5.5V
Operating current : 20mA(max)
Operating temperature : -10℃~65℃
Storage temperature : -20℃~80℃
Life time : 5 years
Dimension : 63.2mm×41.3mm×21.1mm
Mounting holes size : 2.0mm
Air hole size : 9.0mm
Key Features:
Measurement Range: Usually from a few micrograms per cubic meter (µg/m³) to thousands of µg/m³.
Output Signal: Typically analog (voltage) or digital (e.g., UART, I2C).
Response Time: Ranges from seconds to minutes, depending on the sensor type.
Sensitivity: Varies by model; some can detect particles as small as 0.1 µm
POWER SUPPLY
VCC ↔ 2.5V ~ 5.0V
GND ↔ GND
AOUT ↔ MCU.IO (analog output)
ILED ↔ MCU.IO (module driving pin)
Applications:
Indoor Air Quality Monitoring
Environmental Monitoring
HVAC Systems
Health and Safety
Air purifier
Air conditioner
Air monitor
PM2.5 Detector
