A Load Cell with an Instrumentation Amplifier (Analog Output) measures force or weight and provides an amplified analog voltage signal. It is ideal for precision weighing systems, industrial automation, and force measurement applications.

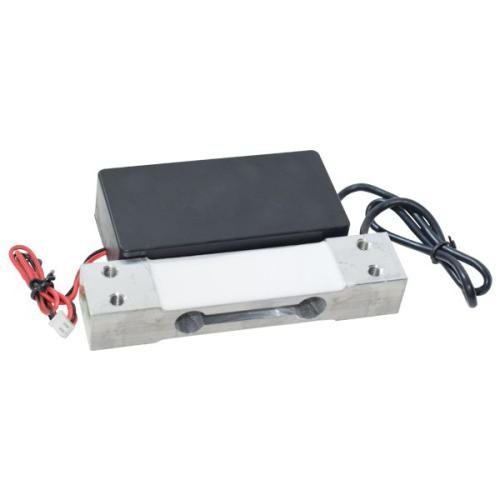

Load Cell with Instrumentation Amplifier Analog Output
DESCRIPTION
A load cell is a transducer that is used to create an electrical signal whose magnitude is directly proportional to the force being measured. This electronic signal can be a voltage change, current change or frequency change depending on the type of load cell and circuitry used. The electrical signal output is typically in the order of a few milli-volts and requires amplification by an instrumentation amplifier before it can be used.
FEATURES
Input voltage: 5v DC
Rated load: 10Kg
Insulation resistance: 5000 Mega Ohm (50V DC)
Operating Temperature: -20 °C to +65 °C
APPLICATIONS
Weigh applications
Retail
Bench
Counting scales
