0.5-inch force sensor measures pressure and force with high sensitivity, ideal for applications like weight detection, touch-sensitive systems, and robotics. Easily integrates with microcontrollers for real-time force measurement in interactive projects.

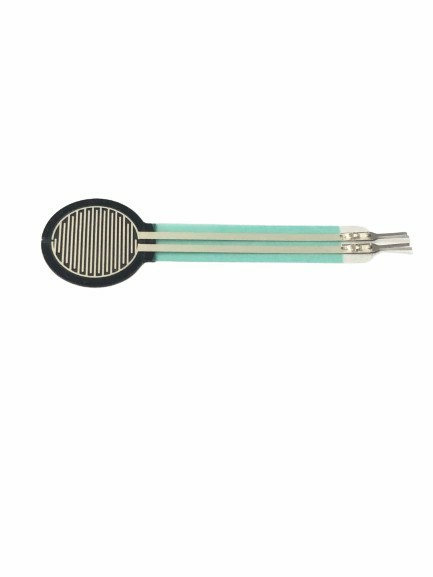

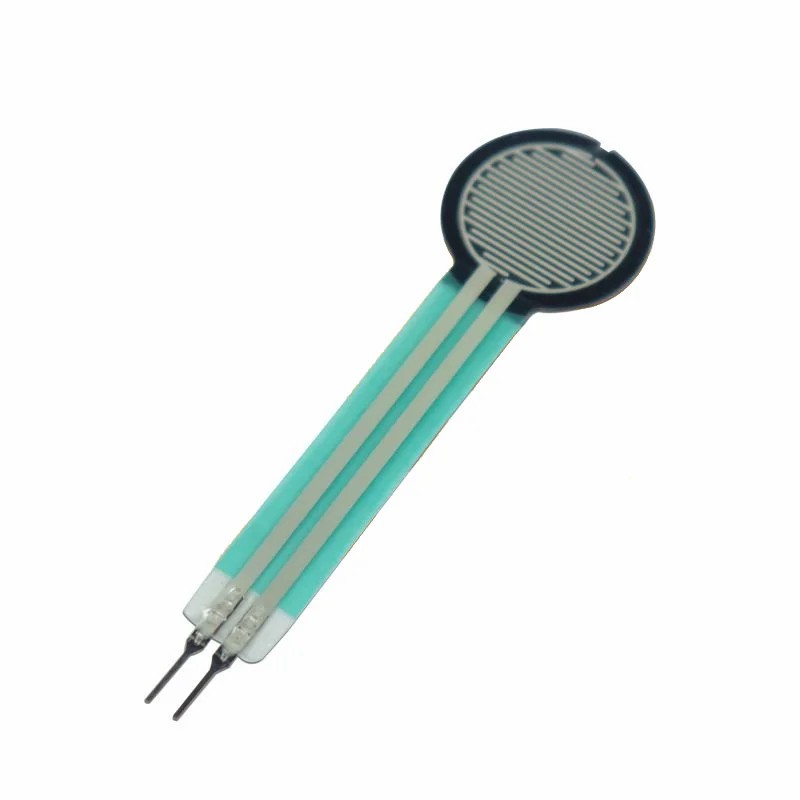

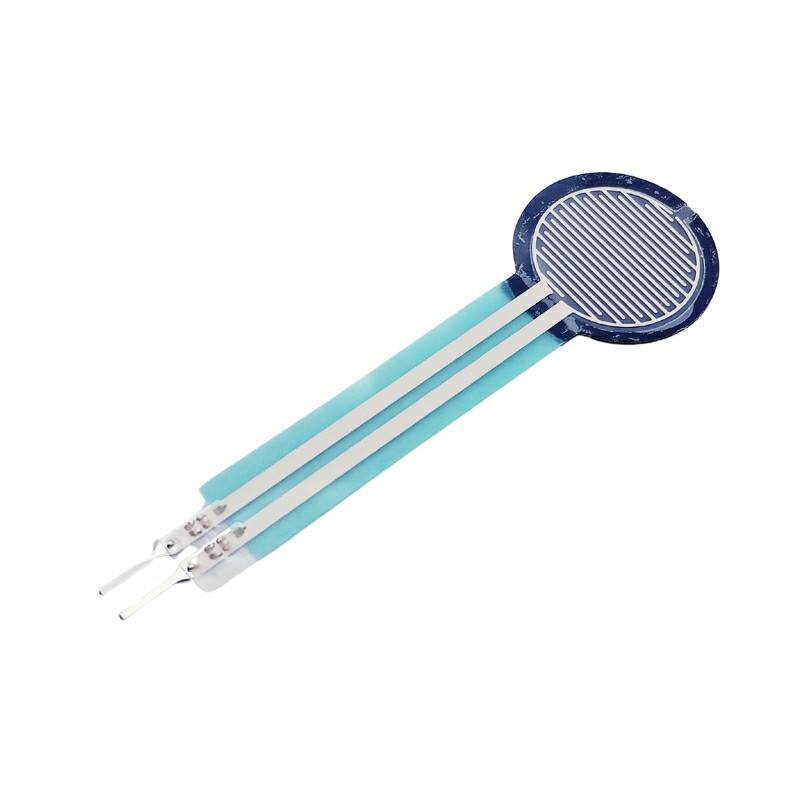

FORCE SENSOR(0.5 INCH)
A force sensor (0.5 inch), also known as a force-sensitive resistor (FSR), is a sensor that changes its resistance based on the amount of force or pressure applied to its surface. The 0.5-inch version refers to the active sensing area, which has a diameter of 0.5 inches. These sensors are commonly used in applications that require force or pressure measurement, such as robotics, consumer electronics, and medical devices.
Key
Features of the Force Sensor (0.5 inch):
Force Sensitivity:
Thin and Flexible:
Compact Sensing Area:
Simple Output(Analog)
Technical
Specifications (Example):
Diameter of Active Area: 0.5 inches (12.7 mm).
Thickness:
Typically around 0.45 mm.
Force Range:
Minimum detection of around 0.2 N (Newton) to a
maximum force of around 20 N or more.
Resistance Range:
No force:
High resistance, typically over 1 MΩ.
Full force:
Resistance decreases to around 1-10 kΩ, depending on the amount of
force.
Response Time:
Less than 5 milliseconds for dynamic force applications.
Durability:
Can handle millions of actuation cycles, making it suitable for long-term
use.
