Description:

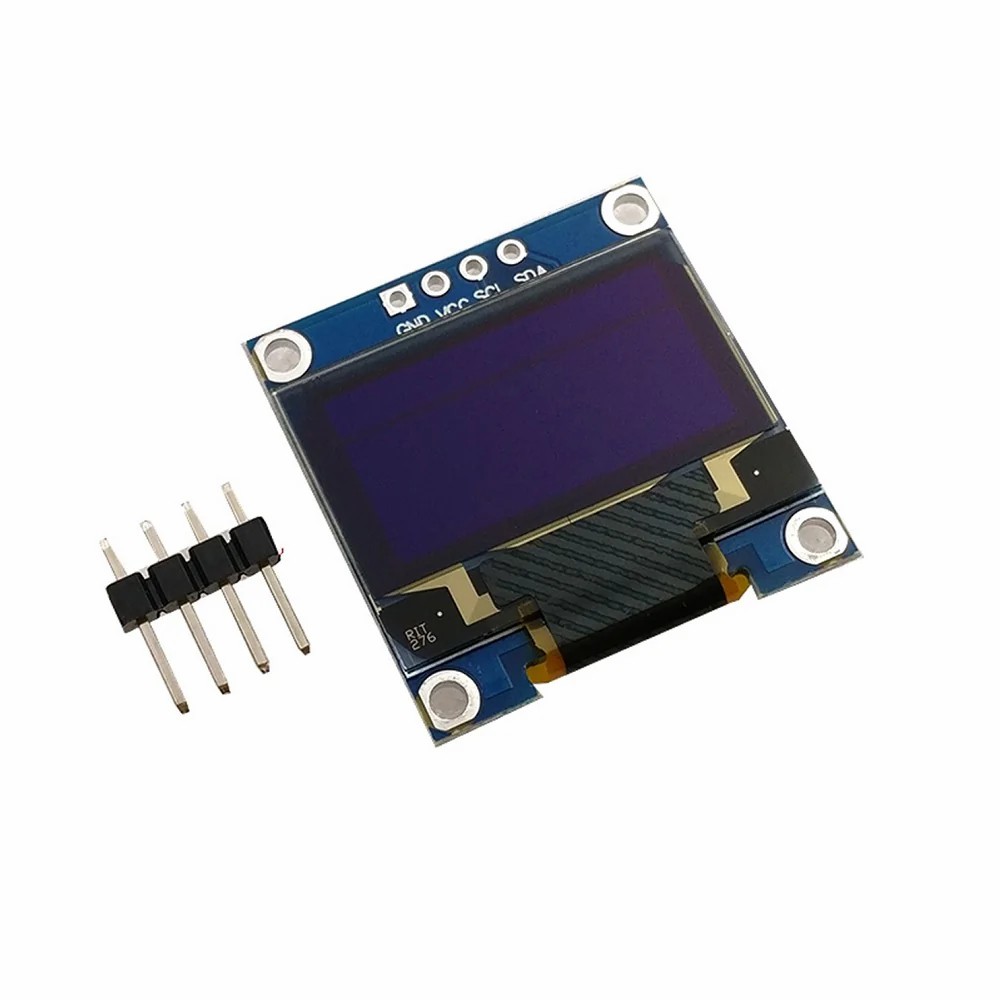

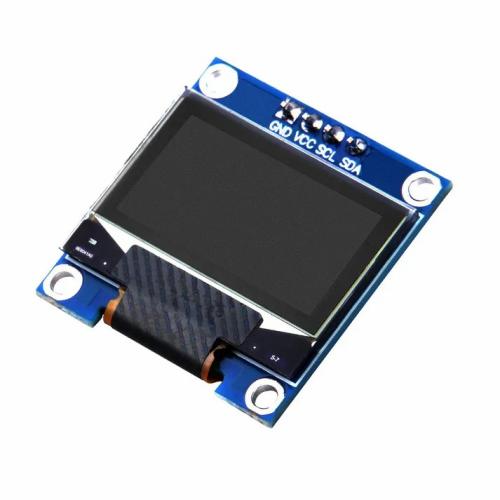

The 0.96-inch OLED Display is a compact, high-performance screen that uses OLED (Organic Light Emitting Diode) technology. It is commonly used in a variety of small electronics and embedded system projects, particularly those that require low power consumption and high display quality. The display features 128×64 pixel resolution with a blue and black color scheme (often, other color variants like white or yellow may be available). It uses the SSD1306 driver IC and is typically connected to a microcontroller or a development board like Arduino or Raspberry Pi through I2C (Inter-Integrated Circuit), a two-wire interface for data transfer.

This display is ideal for compact projects that require a small, high-contrast display without the need for a backlight. The OLED technology allows the screen to have deeper blacks and brighter colors than traditional LCD screens, offering better contrast and readability from different angles. The 0.96-inch OLED module is very popular for small gadgets, IoT devices, wearables, and prototyping.

 Specifications:

• Display Type: OLED (Organic Light Emitting Diode)
• Display Size: 0.96 inches
• Resolution: 128 × 64 pixels
• Driver IC: SSD1306
• Interface: I2C (4-wire interface)
• Voltage: 3.3V to 5V
• Viewing Angle: 160° (wide viewing angle)
• Pixel Color: Blue on black (varies by module)
• Power Consumption: Low (ideal for battery-powered applications)
• Contrast Ratio: High contrast with deeper blacks and vivid colors
• No Backlight: OLED technology doesn't require a backlight for illumination
• Dimensions: Approximately 27mm x 28mm (depending on model)
• I/O Pins Required: 4 pins (VCC, GND, SDA, SCL)
• Pixel Density: High, with clear display quality
• Interface Protocol: I2C (Only 4 wires needed: VCC, GND, SDA, SCL)

Features:

• Self-Illuminating: Each individual pixel in an OLED display emits its own light, meaning no backlight is required, providing deeper blacks and better contrast.
• Low Power Consumption: OLEDs consume significantly less power compared to traditional LCD displays, making them ideal for battery-powered devices.
• High Contrast and Brightness: OLED displays offer vibrant colors and deep blacks, making the display highly readable under various lighting conditions.
• Wide Viewing Angle: The OLED display allows for a wide viewing angle (160°), making it easier to read from multiple directions.
• Compact Size: The 0.96-inch size is small and compact, perfect for projects where space is limited.
• Easy to Use with I2C Interface: The 4-pin I2C interface makes it easy to connect to microcontrollers like Arduino and Raspberry Pi, simplifying integration with your project.
• No Need for a Backlight: OLEDs don’t require a backlight, reducing power consumption and eliminating the need for additional circuitry.
• Fast Response Time: OLED displays typically have faster response times, which make them ideal for applications involving dynamic data.

Applications:

• Arduino Projects: Commonly used in Arduino-based projects to display text, sensor data, or system status.
• Wearable Devices: Ideal for small, battery-operated devices like smartwatches, fitness trackers, or health monitoring devices.
• Internet of Things (IoT): Used to display sensor data, system status, or other information in IoT applications.
• Robotics: Display sensor data, diagnostic information, or status updates for robotics projects.
• Home Automation: Perfect for home automation projects to display data such as temperature, humidity, or security status.
• Toys & Gadgets: Used in small electronic toys or gadgets requiring a compact, low-power display for status or interactive content.
• Portable Devices: Excellent for handheld, battery-operated devices where space is limited and power consumption is important.
• Prototyping: Common in prototyping, allowing developers to display data or debug information during testing and development.
• Digital Clocks: Used in creating small, low-power digital clocks with clear readability.
• Miniature Displays: Can be used in any project requiring a small display for showing information, such as counters, timers, or messages.
