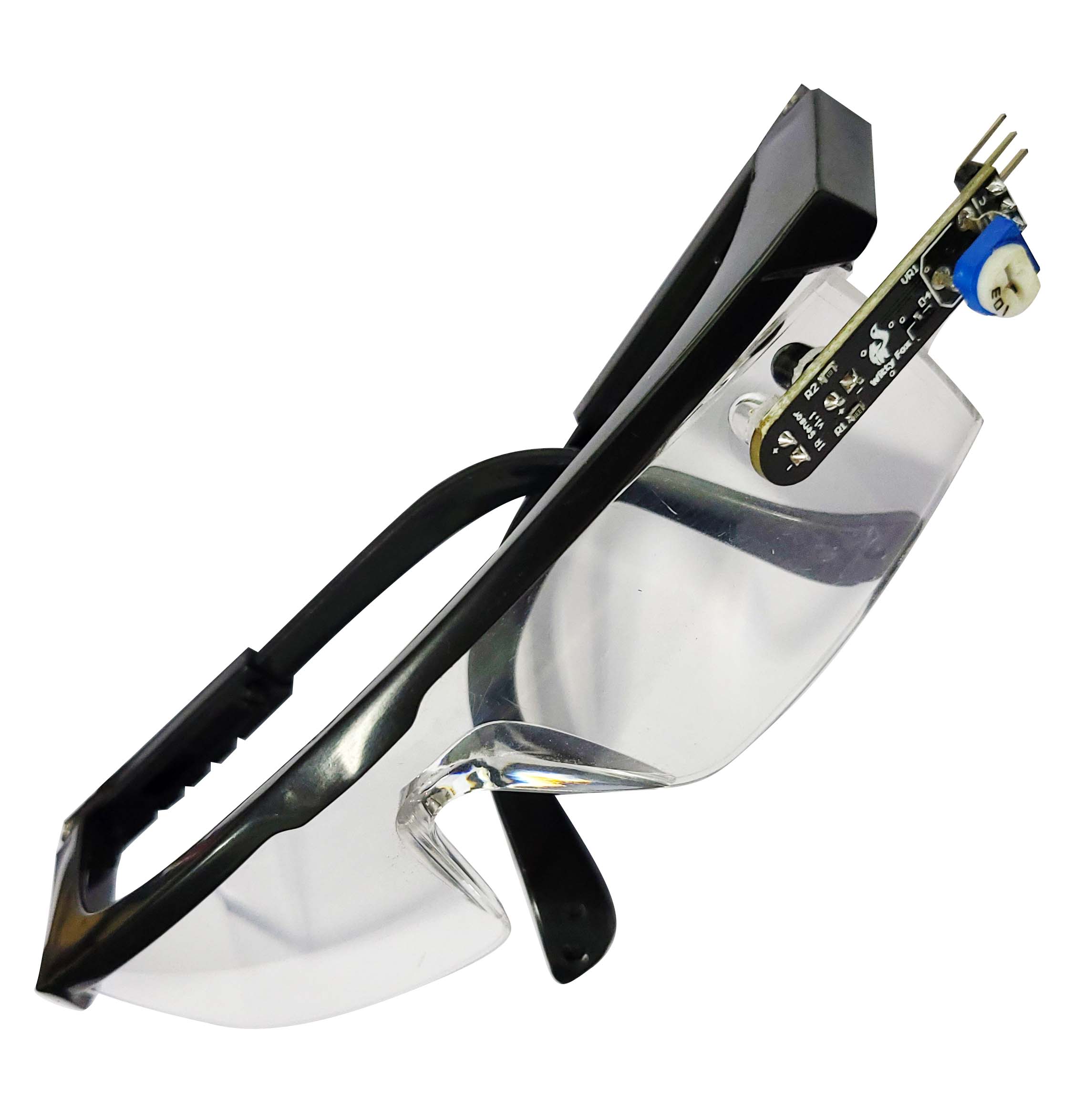

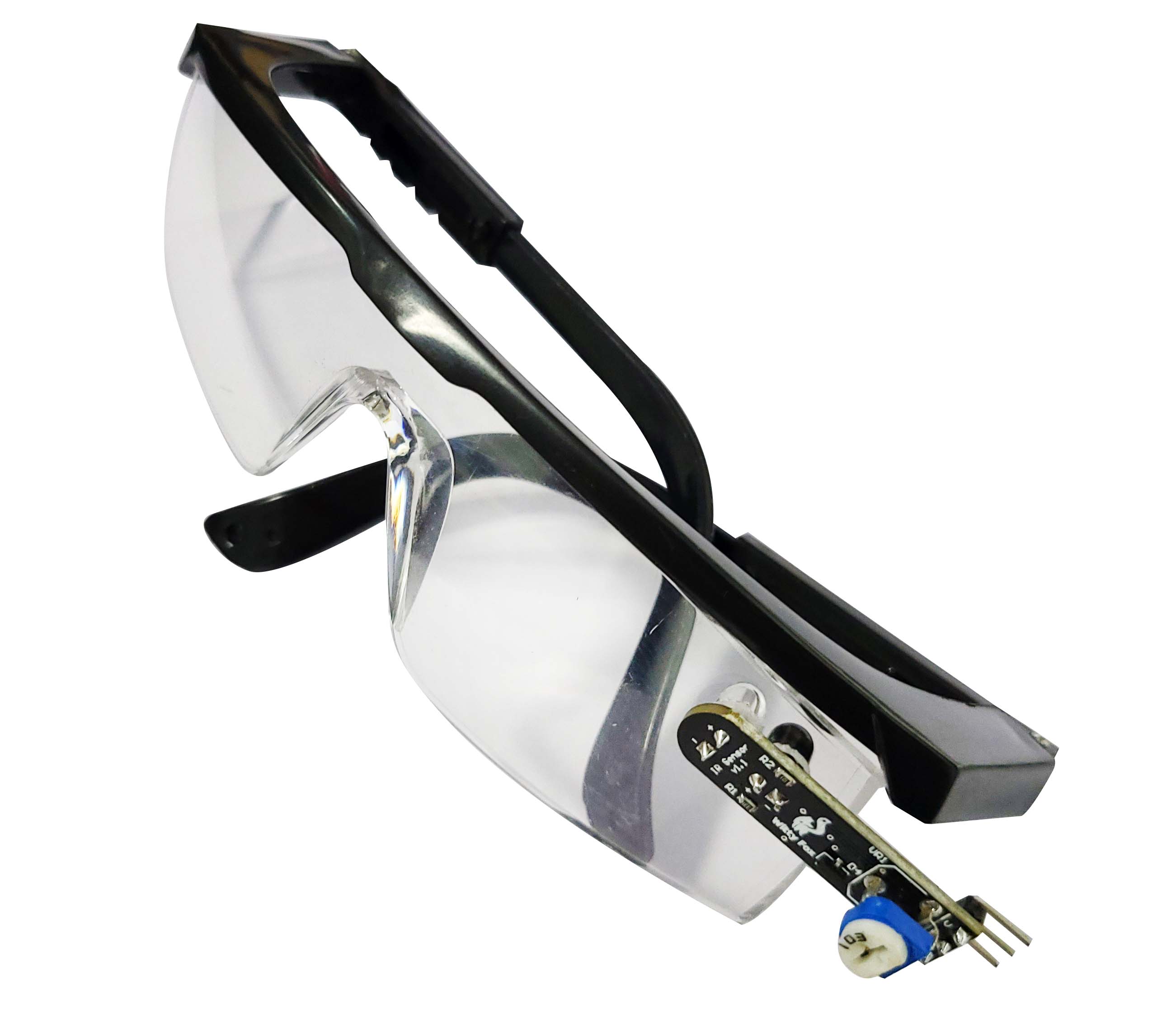

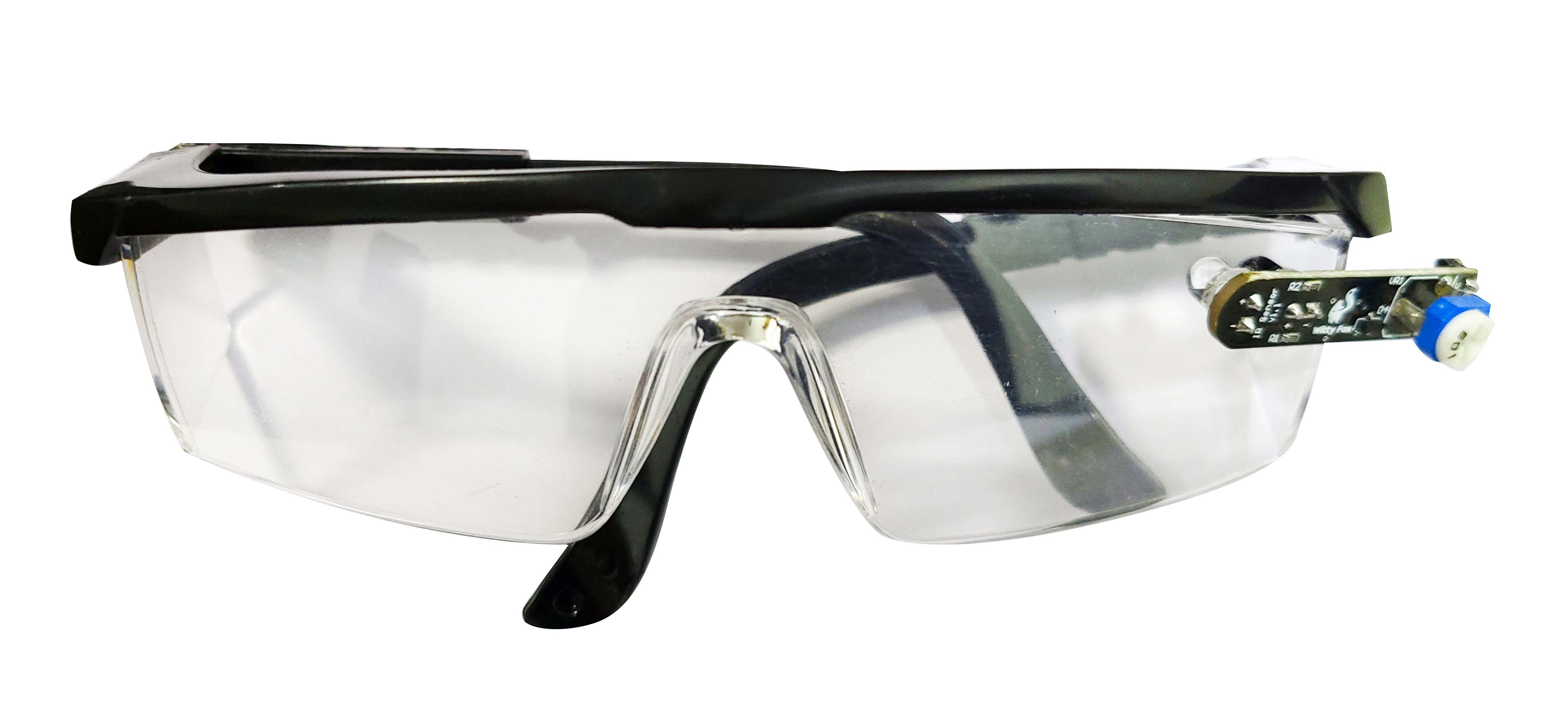

Eye Blink Sensor
An Eye Blink Sensor is a device used to detect the blinking of a person's eyes, typically used in applications such as drowsiness detection, driver monitoring systems, or assistive technology for people with disabilities. The sensor works by using infrared (IR) technology to detect changes in the reflection of light from the eye, signaling when a blink occurs.
How an Eye Blink Sensor Works:
The Eye Blink Sensor generally consists of:
1. Infrared (IR) Transmitter:
2. IR Receiver (Photodiode or Phototransistor):
3. Signal Processing Circuit:
Specifications:
- Operating Voltage: Usually 3.3V to 5V, making it easy to integrate with microcontrollers like Arduino.
- Detection Range: The sensor is positioned a short distance from the eye, typically a few centimeters.
- Output: Digital signal (HIGH when the eye is open, LOW when a blink is detected, or vice versa).
Key Components:
1. IR LED (Infrared Emitter): This emits infrared light toward the eye.
2. Phototransistor/Photodiode: This receives the reflected IR light. When the eye is open, more light is reflected back, and when the eye is closed, less light is reflected.
3. Comparator or Signal Processing Circuit: The changes in light reflection are processed to determine if a blink has occurred.
4. Output Signal: The sensor usually provides a digital output, where the signal changes state during a blink. This output can be connected to a microcontroller or a simple indicator like an LED.
Applications:
1. Driver Drowsiness Detection:
2. Assistive Technology:
3. Medical Monitoring:
4. Human-Computer Interaction:
