Description

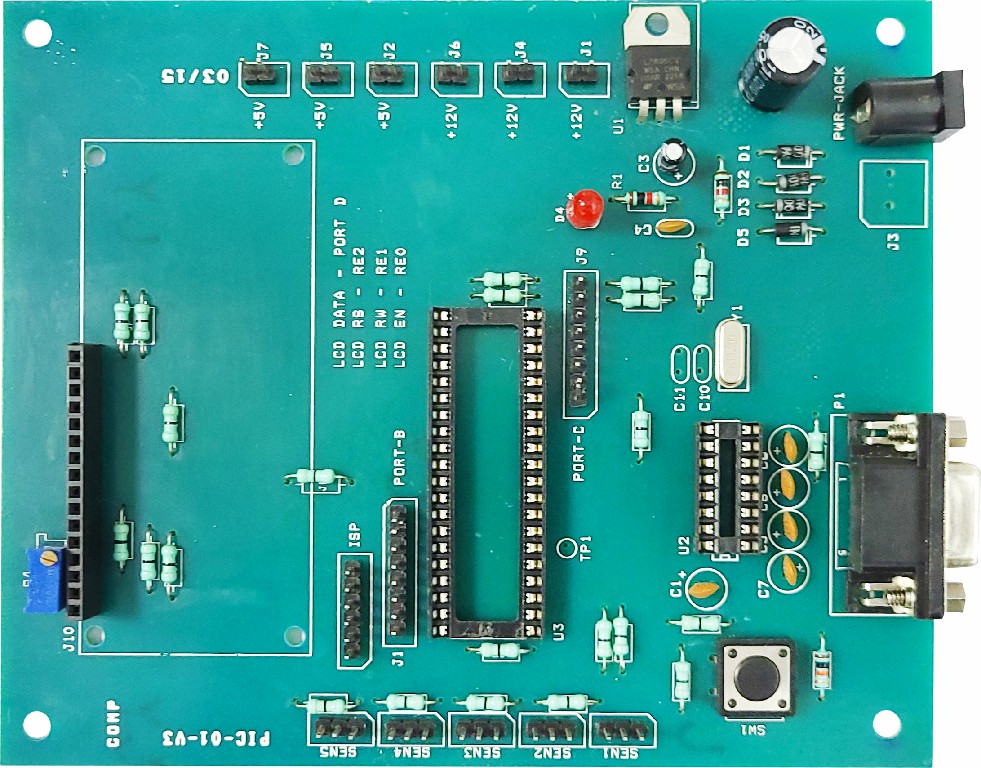

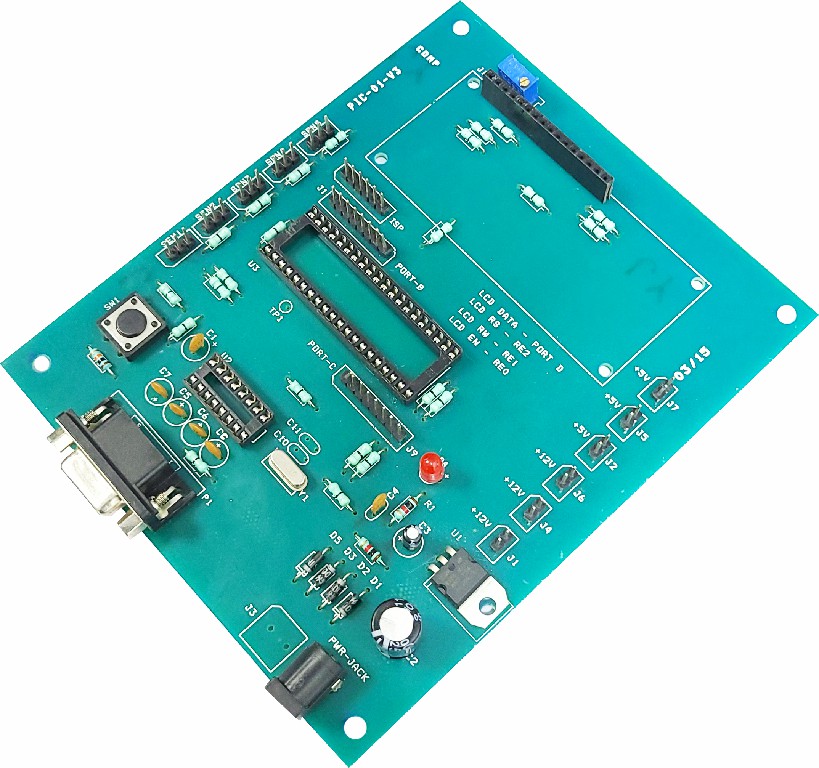

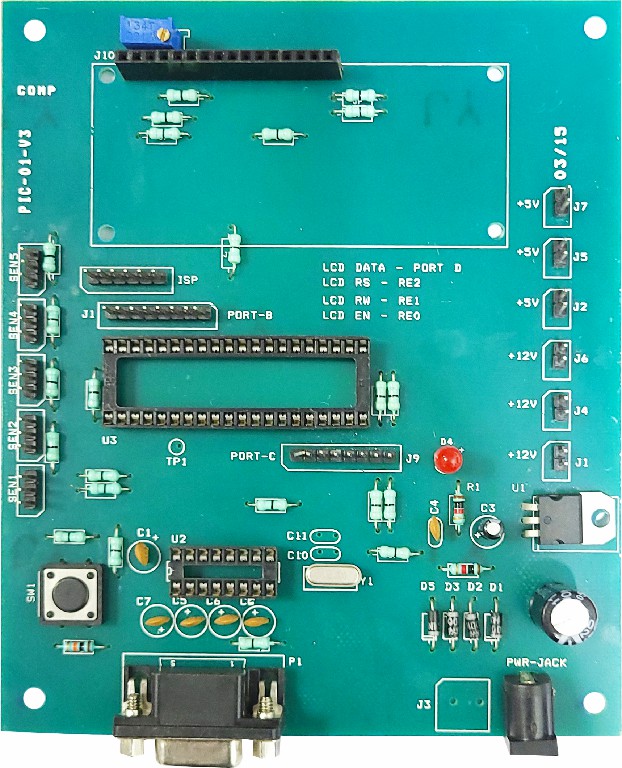

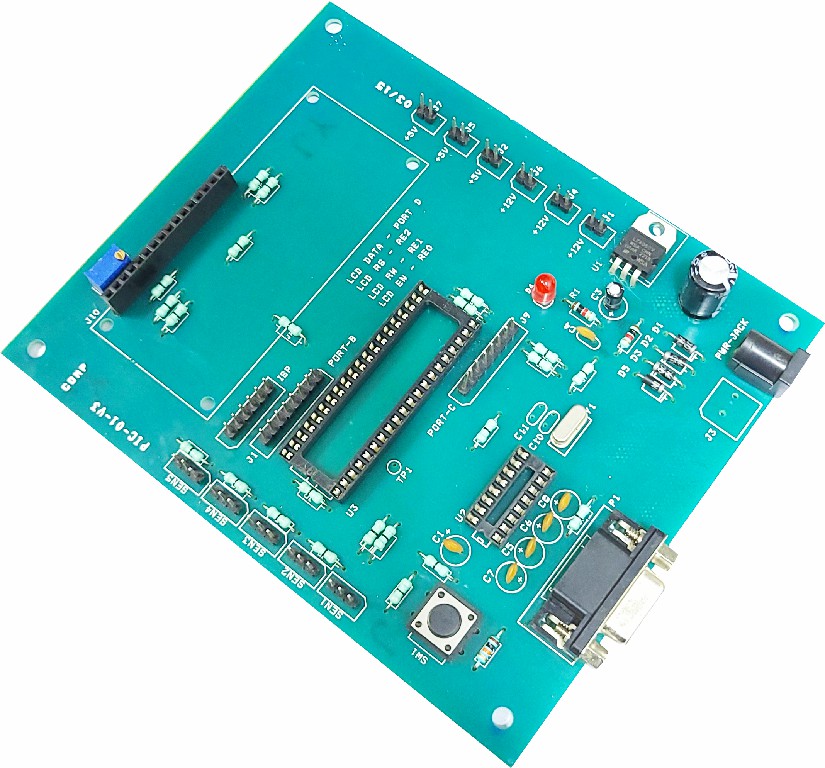

The PIC Assembled PCB
is a highly efficient development board designed for embedded system
applications using the PIC16F877A microcontroller. This board is pre-assembled
and ready to use, making it ideal for students, engineers, and hobbyists
working on microcontroller-based projects.
With compatibility for
PIC16F877A DIP IC, it offers seamless integration with UART communication via
Max232 DIP IC and 16x2 LCD display compatibility. The board is designed for
easy interfacing with digital and analog sensors, relays, and communication modules,
making it suitable for industrial, educational, and IoT applications.
Specifications
- Microcontroller Support: Compatible with
PIC16F877A DIP IC
- Operating Voltage: 5V DC (regulated)
- Clock Frequency: Up to 20 MHz (External
Crystal Oscillator)
- Memory:
- Program Flash: 14 KB
- RAM: 368 Bytes
- EEPROM: 256 Bytes (for data storage)
- Communication Interfaces:
- UART (Compatible with MAX232 DIP IC)
- I2C and SPI supported
- RS232 serial communication support
- Power Supply:
- Supports external DC power input (5V or
12V DC)
- Onboard voltage regulators for stable 5V
output
- I/O Features:
- 33 General-Purpose I/O Pins
- 8 Analog Inputs (10-bit ADC resolution)
- PWM Output Channels
- Dedicated Interrupt Pins
- Display Support: Compatible with 16x2 LCD
Display
- Onboard Peripherals:
- Push Buttons (Reset and User Input)
- LED Indicators (Power, TX/RX, and User
LEDs)
- Screw Terminals for easy wiring
- ICSP (In-Circuit Serial Programming)
Support
Features
1. Pre-Assembled and
Ready to Use
- No additional soldering or assembly
required.
- Pre-designed for fast prototyping and
development.
2. PIC16F877A
Microcontroller Compatibility
- Supports high-performance 8-bit processing
with low power consumption.
- Equipped with RISC architecture for
efficient execution.
3. UART Communication
with MAX232 Support
- Ensures seamless RS232 serial
communication.
- Useful for connecting microcontroller with
PCs, GSM, GPS, and other serial devices.
4. 16x2 LCD Display
Interface
- Direct compatibility for easy data
visualization.
- Used for real-time data monitoring and
user feedback.
5. Multiple
Input/Output Options
- Analog and Digital Sensor Support for
versatile applications.
- Multiple PWM and ADC channels for motor
control, sensors, and automation.
6. Stable Power Supply
with Onboard Voltage Regulation
- Supports both 5V and 12V input via onboard
voltage regulator.
- Provides stable 5V output for connected
sensors and peripherals.
7. ICSP (In-Circuit
Serial Programming) Support
- Allows firmware updates and debugging
without removing the microcontroller.
- Compatible with PICkit and MPLAB tools for
seamless programming.
8. Industrial-Grade
Reliability
- Designed for long-term operation in
industrial and embedded applications.
- Efficient PCB layout for noise-free
performance.
Applications
1. Embedded Systems Prototyping
·
Ideal for
testing circuits and firmware before final implementation.
·
Used in
R&D labs, student projects, and commercial development.
2. Industrial Automation
·
Can be
used for process control, motor control, and automation tasks.
·
Suitable
for sensor-based monitoring and control applications.
3. Robotics
·
Can
control motors, sensors, and actuators in robotic applications.
·
Provides
real-time processing for autonomous robots.
4. Home Automation
·
Used for
interfacing with relays, temperature sensors, and security systems.
·
Can be
used in smart home projects like automatic lighting and fan control.
5. Internet of Things (IoT)
·
Compatible
with Wi-Fi and Bluetooth modules for IoT applications.
·
Can be
used for remote monitoring and control of devices.
6. Sensor-Based Applications
·
Used for
temperature, humidity, gas, and motion detection.
·
Ideal for
environmental monitoring systems.
7. Educational and Learning
·
Perfect
for students and beginners to learn microcontroller programming.
·
Helps in
understanding embedded systems and interfacing concepts.
