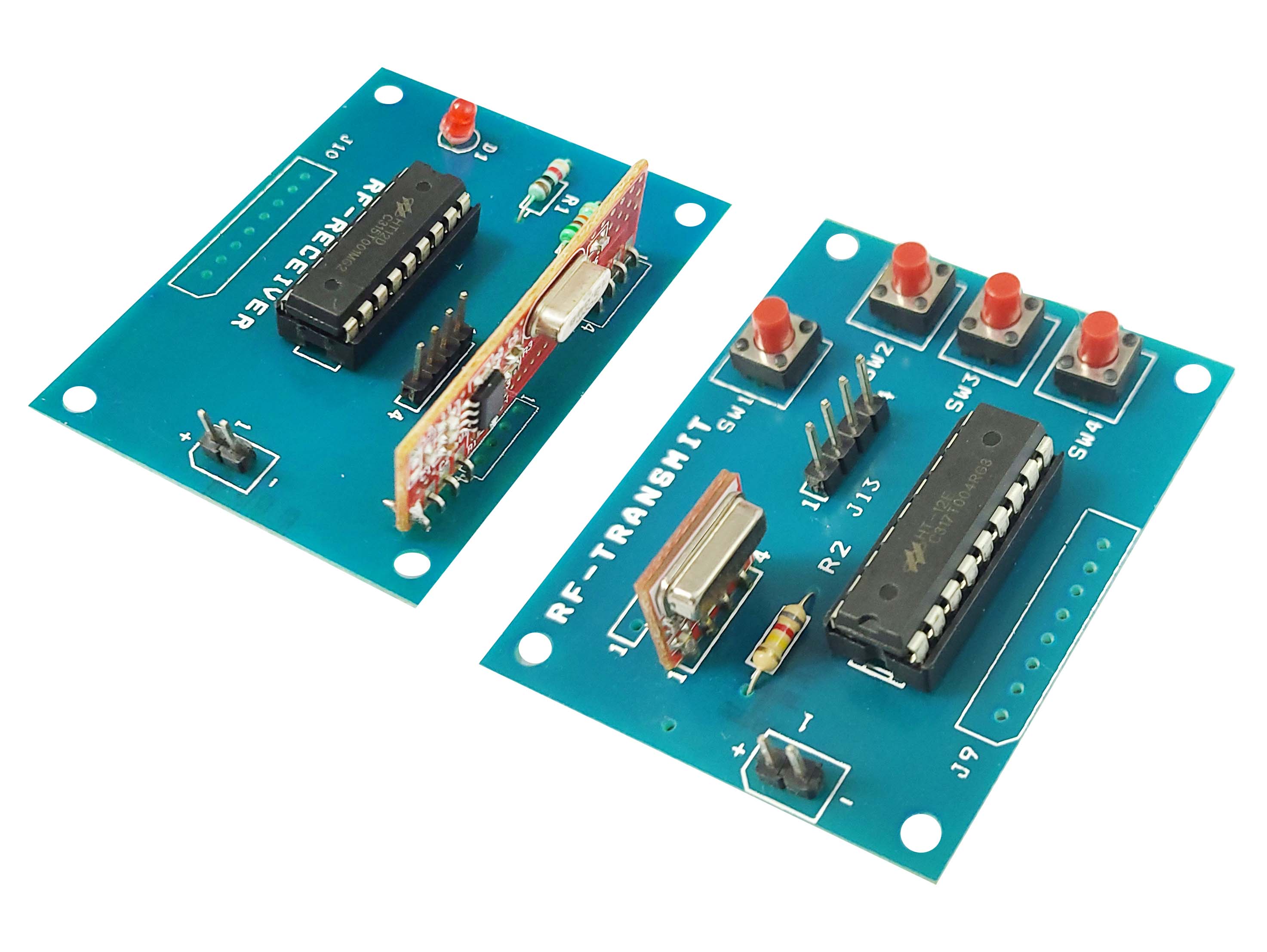

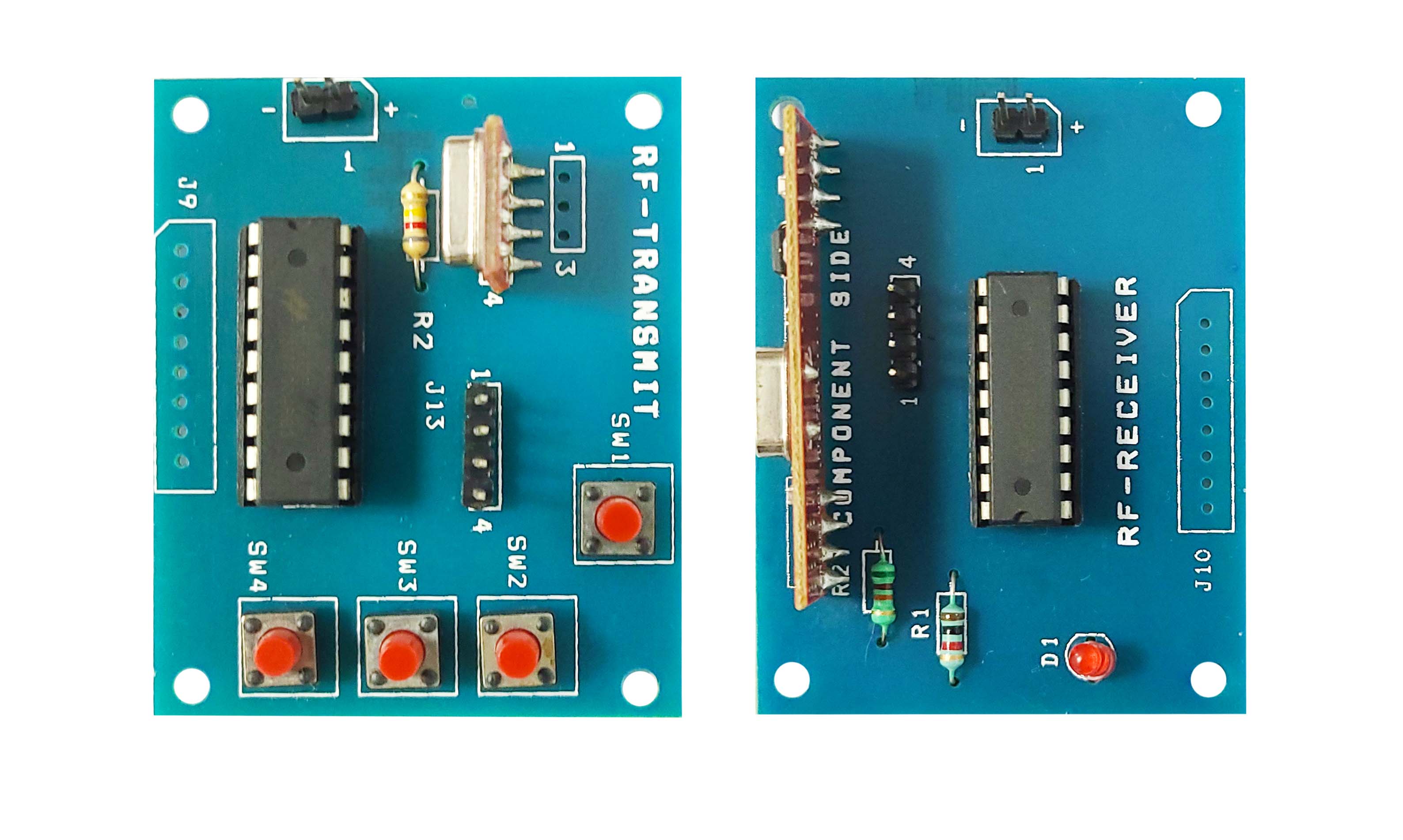

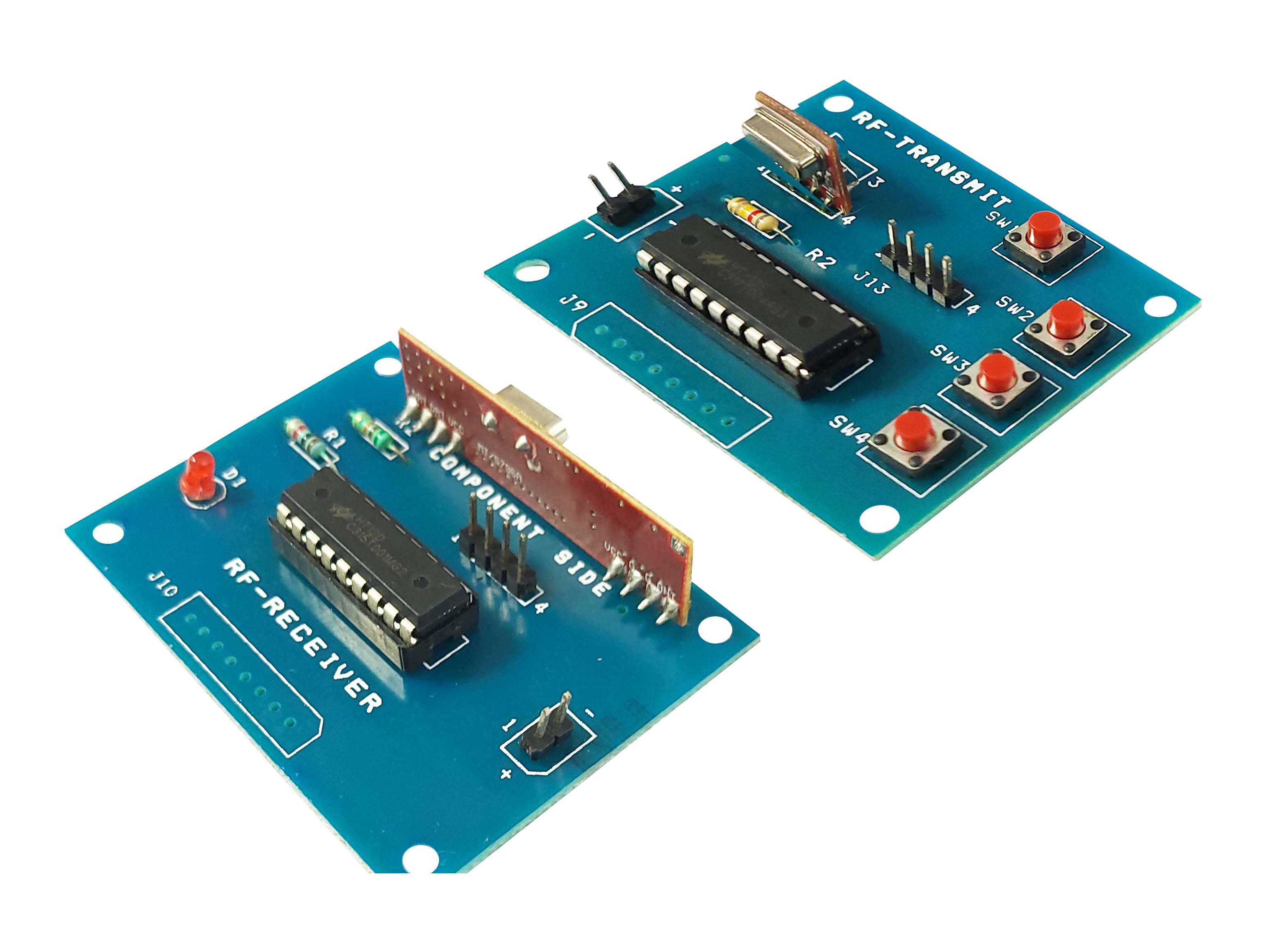

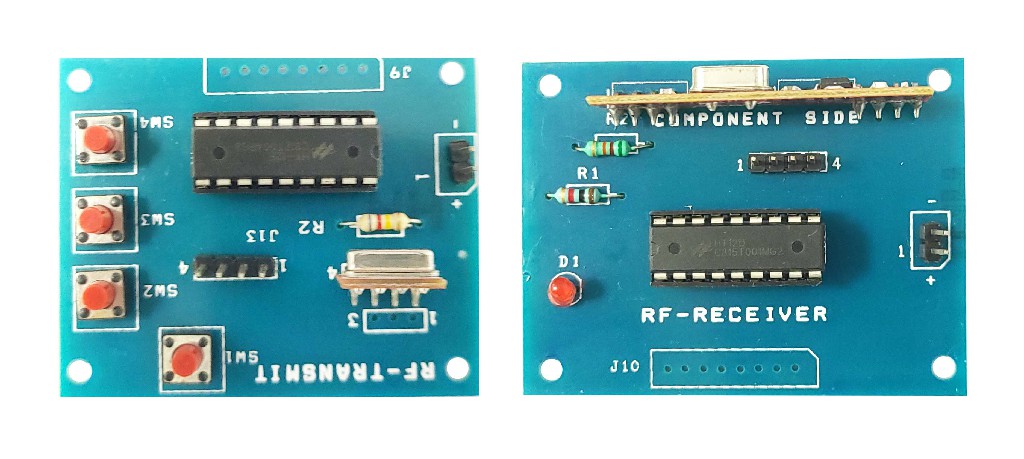

RF Transmitter Receiver with Encoder Decoder Board
The RF Transmitter Receiver with Encoder Decoder Board includes a transmitter,
receiver, and integrated encoder/decoder for secure data transmission. This
module is commonly used in remote control systems
Description:
The RF Transmitter and
Receiver module with an Encoder-Decoder board is a complete wireless
communication system designed for secure and reliable data transmission. It
operates on 433 MHz or 315 MHz frequency and includes an encoder IC (HT12E) in
the transmitter and a decoder IC (HT12D) in the receiver. The encoder converts
parallel data into serial format for transmission, while the decoder converts
received serial data back into parallel format. This setup ensures error-free
data communication and is widely used in remote control applications, security
systems, and home automation.
Specification:
Frequency: 433 MHz / 315 MHz
Operating Voltage:
Transmitter: 3V – 12V
Receiver: 5V
Modulation Type: ASK (Amplitude Shift Keying) / OOK (On-Off
Keying)
Data Rate: 4 kbps – 10 kbps
Range:
Up to 100 meters (line-of-sight)
Range depends on antenna and environmental
conditions
Encoder IC: HT12E (4-bit data input, serial output)
Decoder IC: HT12D (Serial input, 4-bit data output)
Antenna: External wire or PCB antenna for enhanced range
Interface:
Transmitter: 4-bit data input
Receiver: 4-bit parallel output
Power Consumption:
Transmitter: ~10 mA – 40 mA
Receiver: ~5 mA
Features:
Secure wireless communication using HT12E/HT12D
encoder-decoder
Supports ASK/OOK modulation for reliable
transmission
Low power consumption, ideal for battery-powered
devices
Easy interfacing with microcontrollers and
digital circuits
Compact and lightweight design
Applications:
Remote Controls: Wireless key fobs, garage door openers, home
automation
