Description:

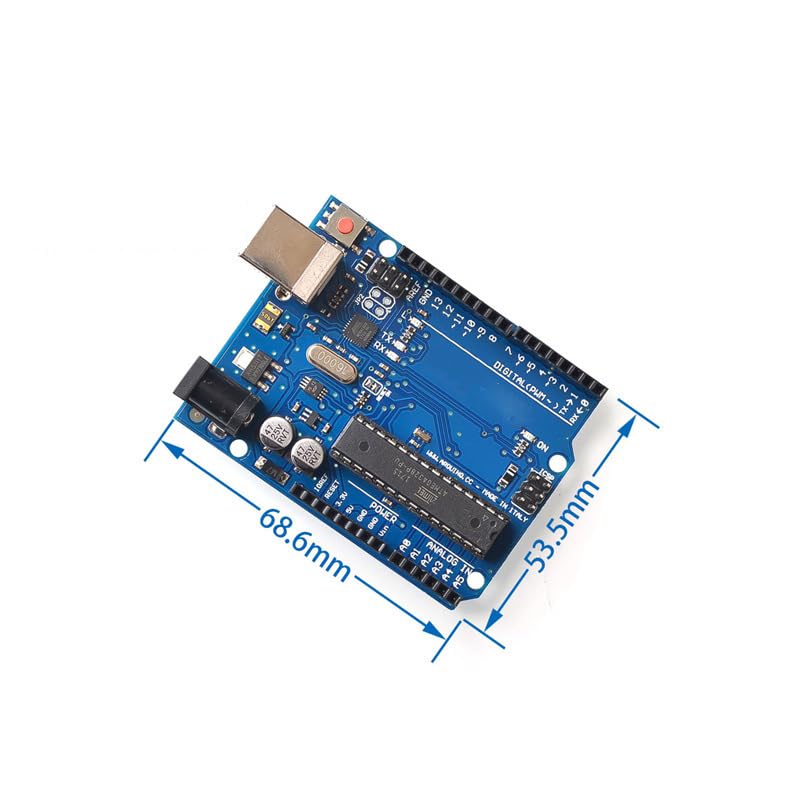

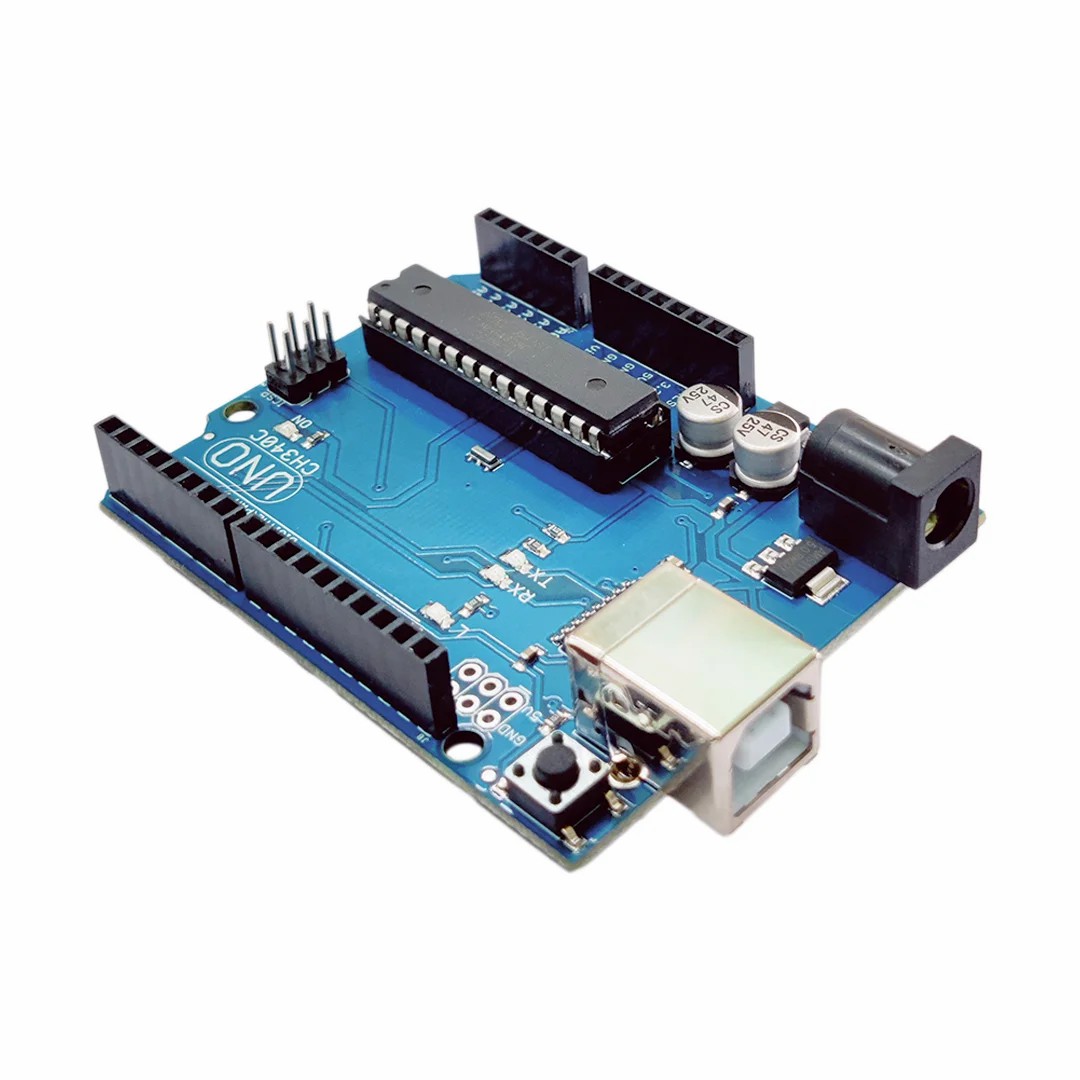

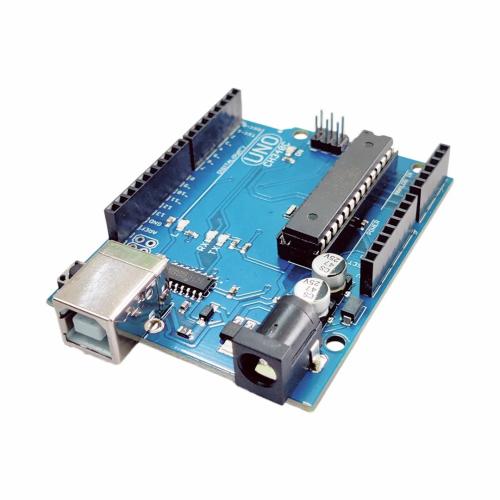

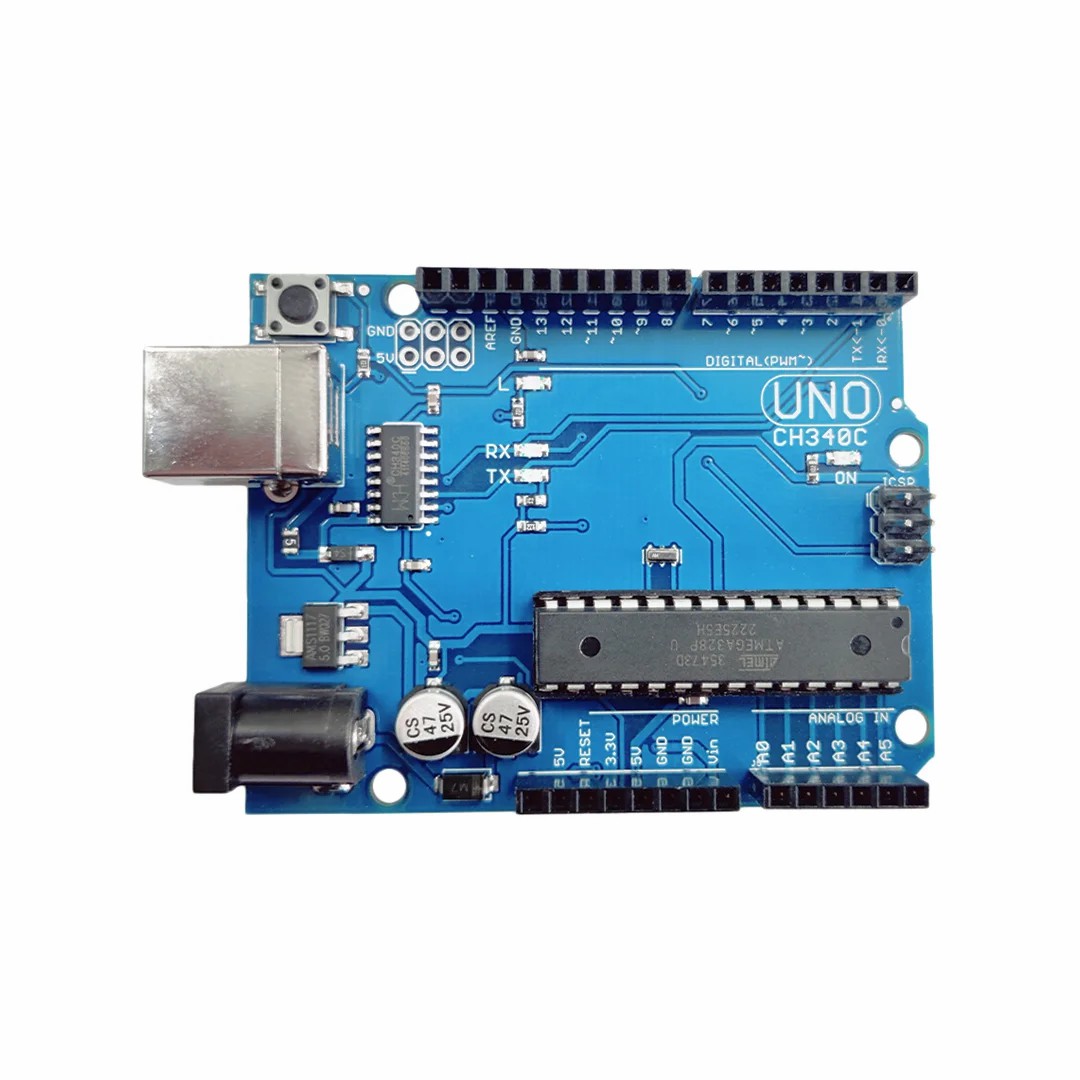

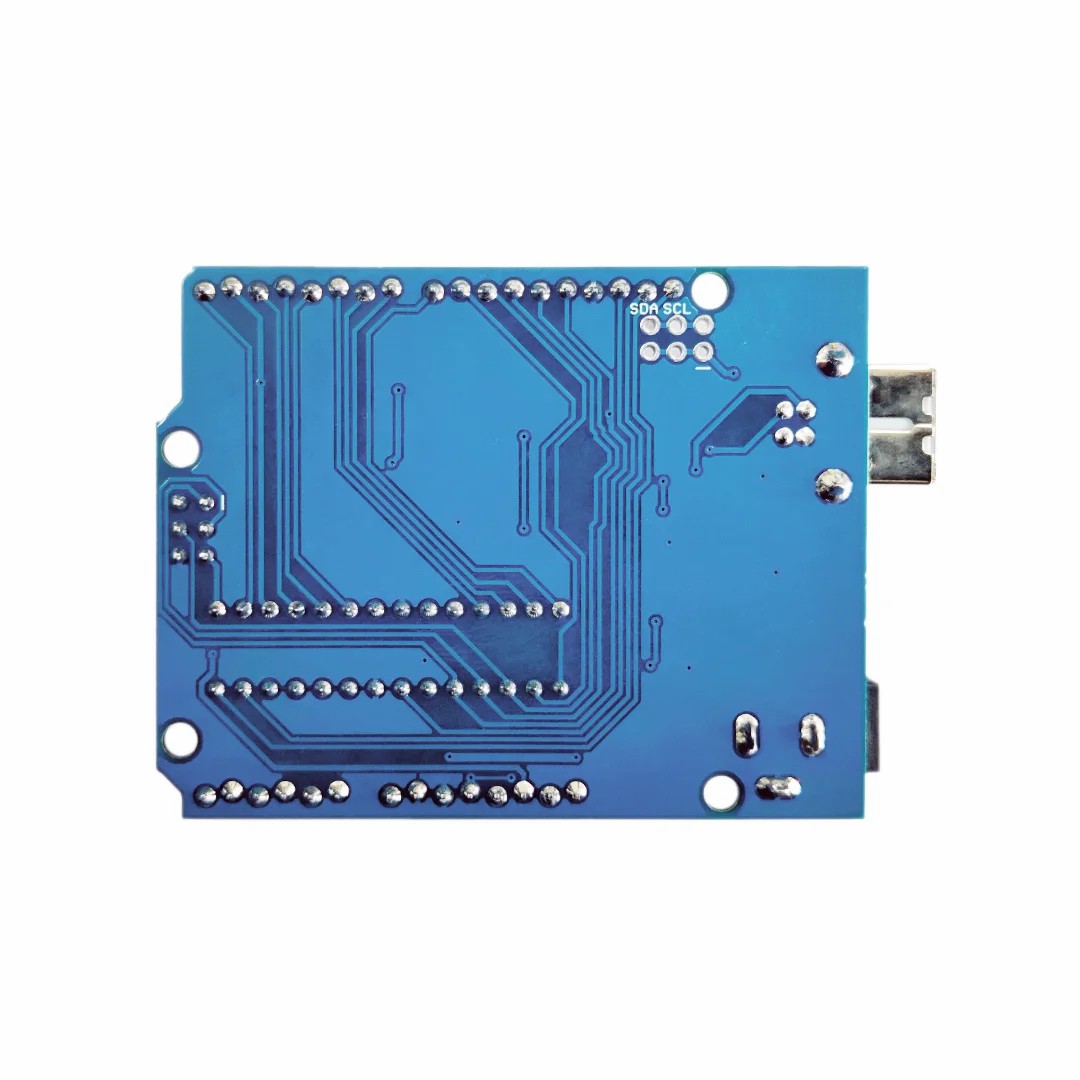

The Arduino Uno DIP is a versatile and widely used microcontroller development board featuring the ATmega328P microcontroller in a Dual In-line Package (DIP) form. This version is unique because the microcontroller is socketed, allowing it to be easily removed and replaced, making it an ideal choice for prototyping, experimentation, and educational purposes. With its robust design and large community support, the Arduino Uno DIP is perfect for both beginners and experienced developers to build a wide range of electronic projects.

 Specifications:

• Model Type: Arduino Uno Rev R3
• Microcontroller Chip: ATmega328P
• Operating Voltage (VDC): 5V
• Input Voltage (Recommended): 7-12V
• Analog Input Pins: 6
• Digital I/O Pins: 14 (of which 6 provide PWM output)
• PWM Digital I/O Pins: 6
• DC Current per I/O Pin (mA): 40
• DC Current for 3.3V Pin (mA): 50
• Clock Speed: 16 MHz
• SRAM (KB): 2 KB
• EEPROM: 1 KB (ATmega328)
• Flash Memory: 32 KB
• Onboard LEDs: On/Off, L (PIN 13), TX, RX

Key Features:

• Socketed ATmega328P Microcontroller: The key feature of the Arduino Uno DIP is the socketed ATmega328P, which allows users to easily replace or upgrade the microcontroller during prototyping or development.
• Wide Voltage Range: It operates at a voltage of 5V, with a recommended input voltage of 7-12V, offering flexibility in power supply options.
• PWM Output: Provides 6 PWM-capable digital I/O pins, enabling smooth control of analog devices like motors, LEDs, or servos.
• Multiple I/O Pins: With 14 digital I/O pins (6 of which support PWM) and 6 analog input pins, the board allows for a broad range of sensors and actuators to be connected and controlled.
• Clock Speed: Running at 16 MHz, the Arduino Uno DIP provides sufficient processing power for a variety of projects.
• Compact Design: Its small footprint and robust design make it ideal for use in a wide range of applications, from simple circuits to more complex systems.
• Community Support: With an active community and vast online resources, users can find a wealth of libraries, tutorials, and troubleshooting tips.
• Onboard LEDs: Includes onboard indicators for On/Off, L (Pin 13), TX, and RX for easy troubleshooting and debugging.

Applications:

The Arduino Uno DIP board is ideal for a wide variety of projects, including:

• Prototyping and Education: Its ease of use and socketed microcontroller make it perfect for educational environments, teaching the fundamentals of electronics and embedded systems.
• Home Automation: Control lights, fans, and other appliances in smart home systems, using sensors and actuators connected to the board.
• DIY Electronics Projects: Suitable for hobbyists creating everything from simple circuits to more advanced systems.
• Sensor Integration: Interface with various sensors for projects such as temperature monitoring, motion detection, and environmental sensing.
• Robotics: The Arduino Uno can be used to control robots, integrating motors, sensors, and communication modules.
• Data Logging: Collect and store data from sensors using the board’s analog input pins and EEPROM.
• Communication Projects: Develop communication systems using the board’s UART, SPI, and I2C interfaces, such as serial communication between devices.
