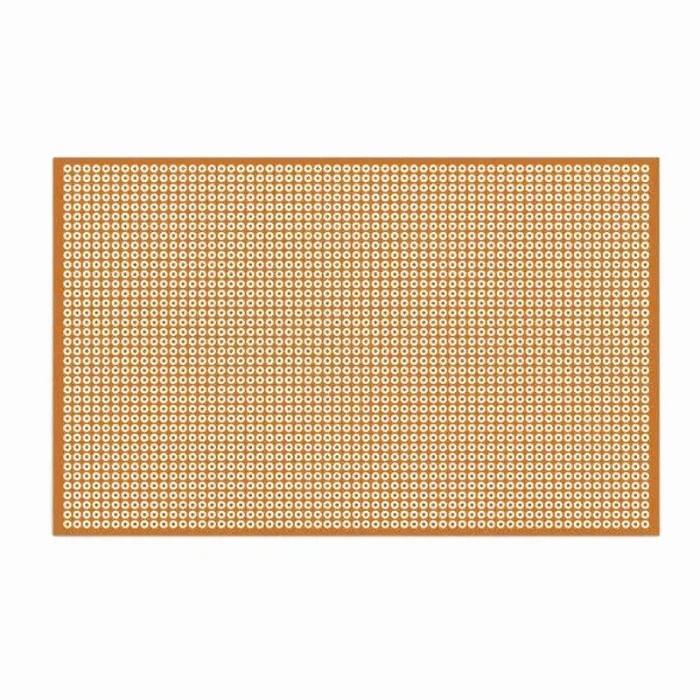

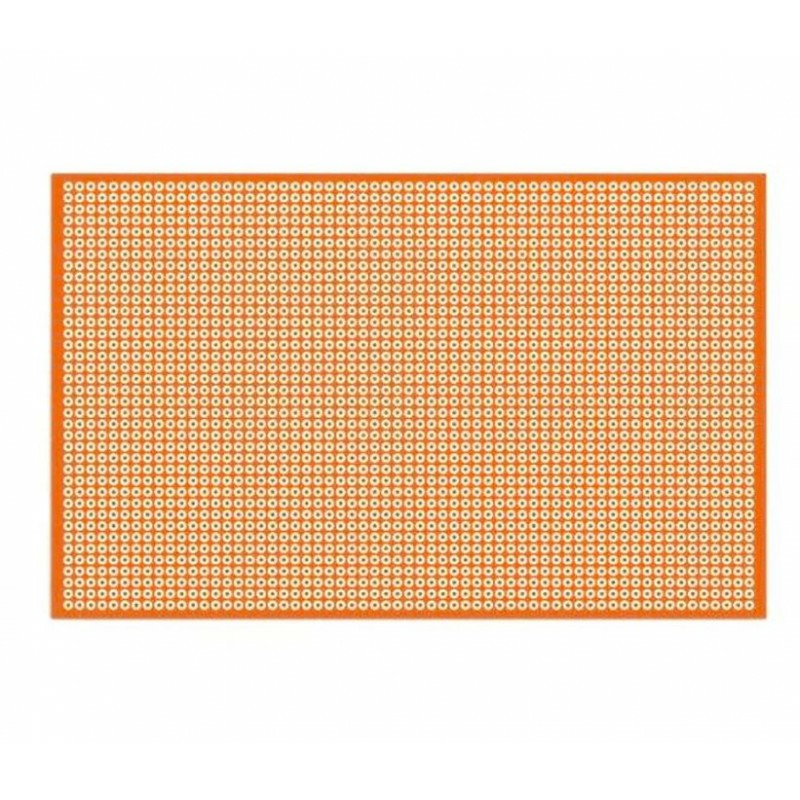

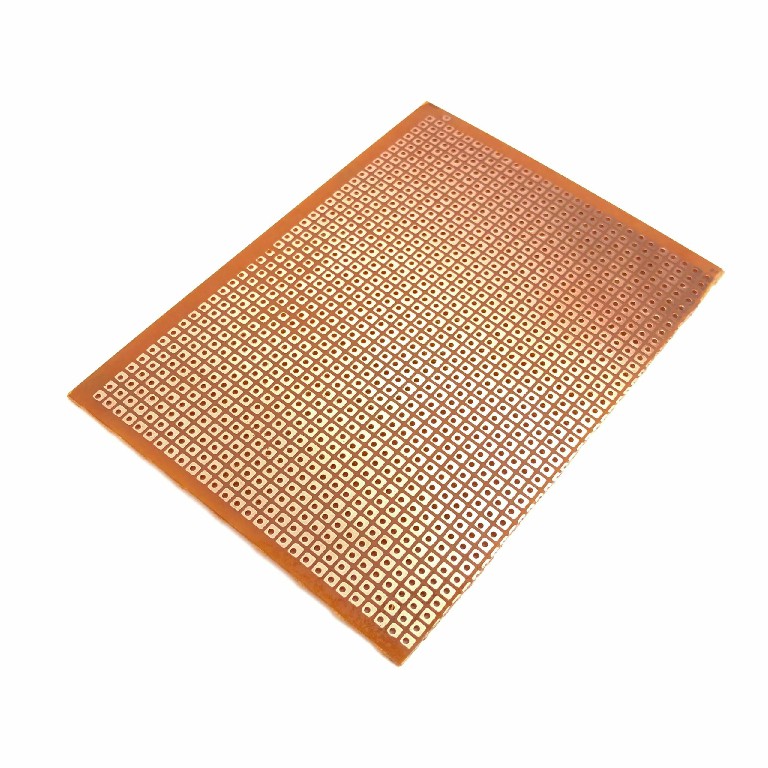

The GP Dot Board (6x4 inch,
Single Side) is a general-purpose prototyping board with a perforated grid of
copper pads for easy soldering and circuit building. It is ideal for DIY
electronics, prototyping, and experimental projects.
Description:
A GP PCB Board 6x4
Inch refers to a general-purpose printed circuit board
(PCB) with a size of 6 inches by 4 inches. It is a single-sided
glass epoxy dot board, typically used for prototyping electronic circuits. The
dimensions of the board are 6 inches by 4
inches (approximately 15.24 cm by 10.16 cm), making it a medium-sized
board suitable for small to moderately complex circuit designs
Specifications
Board Type:
Type: Single-sided dot board (also known as a
perf board or prototyping board)
Color: Brown
Dimensions:

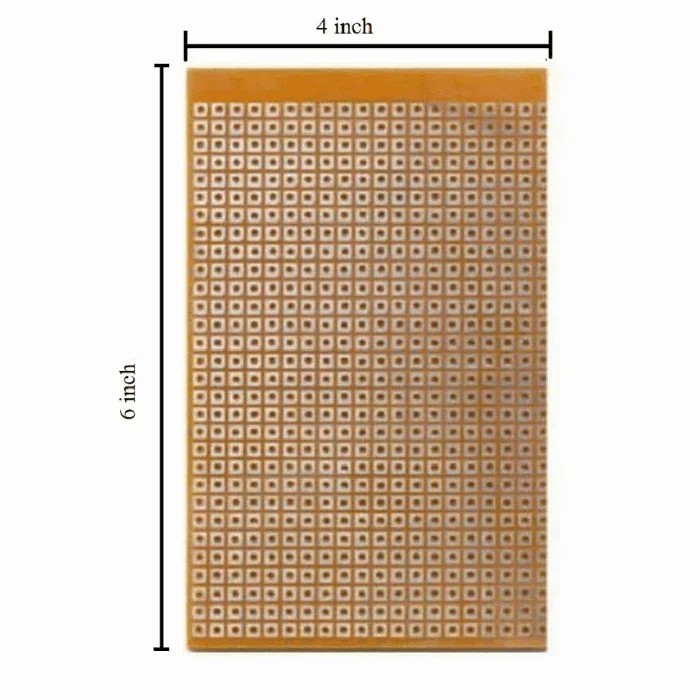

Size: 6 inches x 4 inches (approximately 152 mm
x 102 mm)
Thickness: Typically 1.6 mm (0.062 inches), but
may vary slightly by manufacturer.
Material:
Base Material: Glass epoxy (FR-4 material) known
for durability and thermal stability.
Surface Finish: Copper plated with a brown
solder mask.
Hole Configuration:
Hole Diameter: Usually 1.0 mm to 1.2 mm.
Hole Spacing: Designed with a grid layout
(typically 2.54 mm or 0.1 inch spacing).
Copper Layer:
Copper Weight: Usually 1 oz/ft², providing good
conductivity and solderability.
Copper Area: Only on one side since it's a
single-sided board.
Dot Grid:
Dot Pitch: Standard 2.54 mm (0.1 inch) dot pitch
for easy component placement and prototyping.
Solder Mask:
Type: Brown solder mask to protect copper traces
and reduce the risk of solder bridges.
Silkscreen: Typically includes a white
silkscreen layer for marking component locations and designations.
Applications:
Ideal for prototyping electronic circuits,
building custom electronic projects, and educational purposes.
Additional Features:
Flexibility: Allows for easy modification of
circuit designs.
Ease of Use: Compatible with standard
through-hole components.
